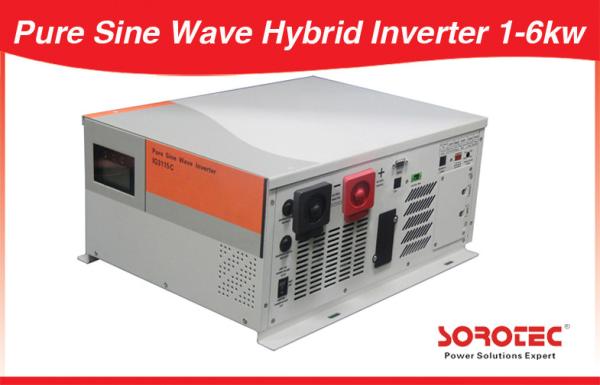

Intelligent Digital UPS Power Inverter Lcd Pure Sine Wave IG3115C 1-6KW
Intelligent Digital UPS Power Inverter Lcd Pure Sine Wave IG3115C 1-6KW
Intelligent Digital UPS Power Inverter Lcd Pure Sine Wave IG3115C 1-6KW
Intelligent Digital UPS Power Inverter Lcd Pure Sine Wave IG3115C 1-6KW
Intelligent Digital UPS Power Inverter Lcd Pure Sine Wave IG3115C 1-6KW
Intelligent Digital UPS Power Inverter Lcd Pure Sine Wave IG3115C 1-6KW
Intelligent Digital UPS Power Inverter Lcd Pure Sine Wave IG3115C 1-6KW
Intelligent Digital UPS Power Inverter Lcd Pure Sine Wave IG3115C 1-6KW
Intelligent Digital UPS Power Inverter Lcd Pure Sine Wave IG3115C 1-6KW
Intelligent Digital UPS Power Inverter Lcd Pure Sine Wave IG3115C 1-6KW
Specifications
Place of Origin :
China
Brand Name :
SOROTEC
Certification :
CE,ROHS,ISO9000
MOQ :
USD10000
Packaging Details :
Standard Exported Cartons and Pallets
Delivery Time :
Within 15-30days after receiving your 30% TT deposit
Payment Terms :
30% TT in advance, the balance before shipping
Supply Ability :
10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Model Number :
IG3115C 1 - 6KW
Nominal Input Voltage :
230Vac
Low Line Disconnect :
184Vac±4%
High Line Disconnect :
253Vac±4%
Max AC Input Voltage :
270Vrms
Description

Intelligent Digital UPS Power Inverter Lcd Pure Sine Wave IG3115C 1-6KW

Key Features:


1.Pure Sine wave Output


2.The charging current is big up to 70 A


3.High power factor


4.Accept generator's energy output


5.Full automatic and silent operation


6.Automatically transfer between battery and line modes


7.Microprocessor control guarantees high reliability


8.Remote control function


9.Bypass without battery connected

10.Two-steps intelligent charging control to recharging time

11.Increase the bypass voltage regulation function


Technical Specification of Pure Sine Wave Inverter IG3115C Series:

MODEL

Pure Sine wave Out
UPS Inverter

IG3115C
1000-12

IG3115C
1000-24

IG3115C
2000-12

IG3115C
2000-24

IG3115C
3000-12

IG3115C
3000-24

Input Voltage Waveform

Sinusoidal
(utility or generator)

Nominal Input Voltage

230Vac

Low Line Disconnect

184Vac±4%

High Line Disconnect

253Vac±4%

Max AC Input
Voltage

270Vrms

Nominal Input
Frequency

50Hz/ 60Hz
(Auto detection)

Over-Load Protection

(SMPS load)

Circuit breaker

Output Short
Circuit Protection

Circuit breaker

Efficiency
(Line Mode)

>95%

Transfer
Switch Rating

30A

Transfer Time

(Ac to Dc)

20ms (typical)

Output Voltage
Waveform

Pure Sine wave

Rated Output
Power (W)

1000W

1000W

2000W

2000W

3000W

3000W

Power Factor

0~1.0

Nominal Output
Voltage (V)

230Vac

Output Voltage
Regulation

±10% rms

Nominal Efficiency

>80%

Nominal DC
Input Voltage

12V

24V

12V

24V

12V

24V

Nominal Charge
Current

70A

35A

70A

35A

70A

35A

Charge Current
Regulation

± 5Adc

Battery
initial voltage

0-15.7 Vdc (can operate with 0V battery)

Communication:

RJ11 (Used for factory testing. No customer interface available)

Safety Certification

Compliance with UL458

CE(EN60950)

EMI Classification

FCC, CLASS A

EN50091-2,
CLASS A

Operating
Temperature Range

0°C to 40°C

Storage temperature

-15ºC 60ºC

Operation humidity

5% to 95%

Audible Noise

60dB max

Cooling

Forced air, variable
speed fan

Size

381mm*217mm*179mm

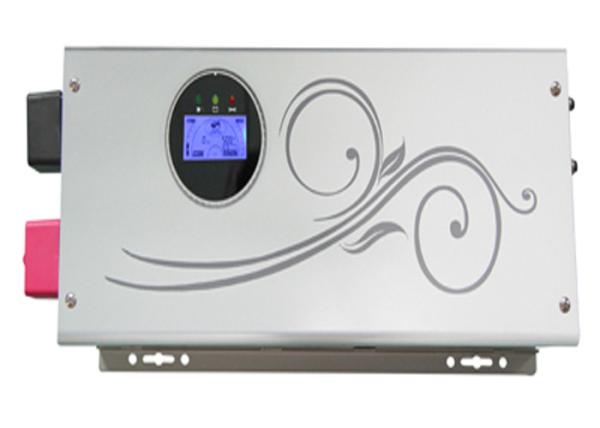

LCD Display Details:

Intelligent Digital UPS Power Inverter Lcd Pure Sine Wave IG3115C 1-6KW

ApplicationsSupply the reliable long back up time power for the Home appliances and office appliances (For example:DVD, Fan, TV etc)

Intelligent Digital UPS Power Inverter Lcd Pure Sine Wave IG3115C 1-6KW
