High Frequency Online UPS 1KVA - 20KVA with Elegant LCD Design
High Frequency Online UPS 1KVA - 20KVA with Elegant LCD Design
Specifications
Place of Origin :
China
Brand Name :
SOROTEC
Certification :
CE,ROHS,ISO9000
MOQ :
USD10000
Packaging Details :
Standard Exported Cartons and Pallets
Delivery Time :
Within 15-30days after receiving your 30% TT deposit
Payment Terms :
30% TT in advance, the balance before shipping
Supply Ability :
10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Model Number :
HP9115C 1 -10KVA
Rated Voltage :
220/230/240VAC
Rated Frequency :
50/60 Hz
Voltage Range :
115~295VAC(±3VAC)
Frequency Range :
50HZ:(46~54HZ);60HZ;(56HZ~64HZ)
Power Factor :
>0.98
Frequency Regulation :
50/60Hz ±0.05Hz
Operation Temperature :
0~40°C
Storage Temperature :
-25°C~55°C
Color :
Black
Description

High Frequency Online UPS 1KVA - 20KVA with Elegant LCD Design

Key Features:

1. Its cut-edge digital technology of DSP (Digital Signal Professor), can greatly improve the products performance and system reliability, and deliver a compact integration with higher power density ;

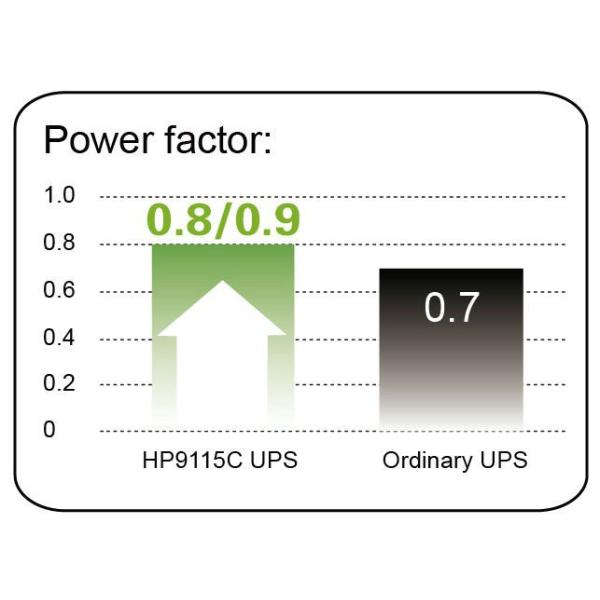

2. Output power factor up to 0.8/0.9- applicable to the tendency of future load evolution, and deliver higher payload capacity;


3. Higher payload and overload capability, better load compatibility, and suitable for various load type;


4. Total power factor up to 90% can minimize the power loss of UPS and utilization cost for user;


5.High Scalability: fully meet the customer's demands;


6. Emergency Power Off (EPO): UPS can be instantly shut off in case of any emergency;


7. Powerful Interference immunity capability in compliance with EMC requirements of IEC61000-4, deliver your device a clean electric environment.

Applications:

Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom…

Technical Specifications of Online UPS HP9115C 1-3KVA:

Model

HP9115C 1-10KVA

1KT

1KT-XL

2KT

2KT-XL

3KT

3KT-XL

Rated Power

1KVA/800 W

2KVA/1600 W

3KVA/2400 W

Rated Voltage

220/230/240VAC

Rated Frequency

50/60 Hz

Input

Voltage Range

115~295VAC(±3VAC)

Frequency Range

50HZ:(46~54HZ);60HZ;(56HZ~64HZ)

Power Factor

>0.98

Output

Voltage Regulation

220/230/240X (1±2%)VAC

Frequency Regulation

50/60Hz ±0.05Hz

Power factor

0.8 6-10k 0.9/0.8(Optional)

Voltage distortion

Linear load<3% Non-linear load<6%

Overload

Capability

110%~150% for 30s change to bypass model,Recover after load normal

Current Crest Ratio

3:1 max.

Transfer time

0 ms(AC mode→DC mode);(AC mode→Bypass<4ms)

Battery

DC Voltage

36VDC

72VDC

96VDC

Recharge Time

5 hours to 90% (it means standard model which battery inside UPS)

Recharge Current

1A

4A/8A(Optional)

1A

4A/8A(Optional)

1A

4A/8A(Optional)

Display

LCD

UPS status, input/output voltage and frequency,battery voltage, capacity,load temperature,history records, adjust Voltage, ECO mode

Communication

Interface

Smart RS232, SNMP (Optional) , USB(Optional)

Environment

Operation Temperature

0~40°C

Humidity

0~95% non-condensing

Storage Temperature

-25°C~55°C

Sea level elevation

<1500 m

Noise Level(1m)

<45dB

<50dB

<50dB

Physical Characteristic

Weight(KG)

N.W.

12

6.5

23

10.5

31.5

14

G.W.

14

8

25.5

13

33.5

16.5

Dimensions: ( W x D x H )mm

145X335X220

109X383 X318

190 X433 X318

Trendy & Elegant LCD Design for real-time UPS system information:
High Frequency Online UPS 1KVA - 20KVA with Elegant LCD Design

High Frequency Online UPS 1KVA - 20KVA with Elegant LCD Design

Our Service

1. Samples

Samples are Available for Testing and Market Test.

2. Warranty of Soropower Products

Soropower provides warranty against defects in materials and workmanship for its Uninterruptible power supply,Power inverter/chargers including inverter12v 24v 48V, Solar charge controllers (“Product”).

3. Guides and After-service Consultancy

Soropower Team will offer these guides below.

A. Need an Accessory?

B. Products Repair?

C. Power Problems to Solve?

D. Power Protection Solutions, etc.?

24 Hours After service consultancy just for you and to make your problems to solve easily.

High Frequency Online UPS 1KVA - 20KVA with Elegant LCD Design

High Frequency Online UPS 1KVA - 20KVA with Elegant LCD Design

High Frequency Online UPS 1KVA - 20KVA with Elegant LCD Design

High Frequency Online UPS 1KVA - 20KVA with Elegant LCD Design

High Frequency Online UPS 1KVA - 20KVA with Elegant LCD Design

High Frequency Online UPS 1KVA - 20KVA with Elegant LCD Design
