5KVA 48V 1 Phase hiigh efficient off grid inverter , house power grid inverter with 120A MPPT
5KVA 48V 1 Phase hiigh efficient off grid inverter , house power grid inverter with 120A MPPT
Specifications
Brand Name :
SOROTEC
Model Number :
SSP3119C 1000-5000VA
Certification :
CE,ROHS,RSO9000
Place of Origin :
China
MOQ :
1PCS Solar Inverter Available
Price :
100-1000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000PCS Solar Inverter Per Month
Delivery Time :
Within 15-30days after receiving your 30% TT deposit for Solar Inverter
Packaging Details :
Standard Exported Cartons and Pallets for Solar Inverter
Product Name :
On Off Grid Solar Power Inverter
Output Power :
5KVA/6000W
Solar Controller :
120A MPPT
Output Voltage :
220/230/240VAC
Power Factor :
1.0
Wave Form :
Pure Sinewave
Battery Pack :
Including
Inverter Color :
Green or White
Mainly Use :
Office Equipmnts
Parellel No. :
6PCS
Description

5KVA 48V 1 Phase most efficient off grid inverter , house power grid inverter with 120A MPPT

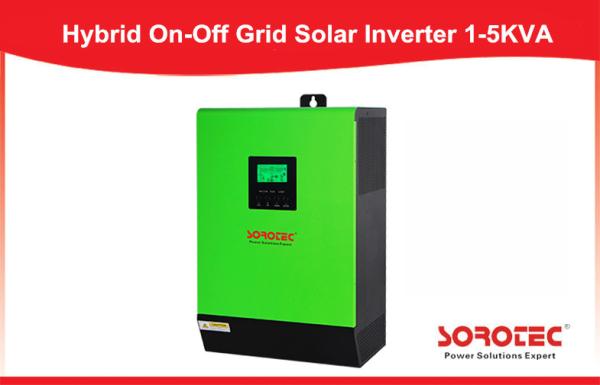

SOROTEC SSP3119C 1KVA-5KVA Hybrid On Off Grid Solar Power Inverter

  • On -Grid & Off -Grid Hybrid Inverter.
  • LCD Display.
  • Power Factor= 1.0.
  • Battery Pack 48V/50AH.
  • Max. 30KW in Parallel Working.
  • Charging/Discharging Time Can Be Setted.
  • Power Source :Solar System,AC Utility ,Battery.

Key Features

  • Self-consumption and Feed-back to the grid
  • In-Built MPPT Solar Charge Controller
  • Supply priority for PV, Battery or Grid
  • Adjustable Charging current and voltage
  • Parallel Operation up to 6 units for 3-5kva
  • Monitoring software for real-time status display and control
  • Multiple operation modess:Grid-tie,off-grid and grid-tie with backup

Typical Application

Supply the reliable long back up time power for the TV,Computer,DVD,VCD, Printing machines,Data center, Financial and Securities, Large Data rooms,Power tools, lawn mowers, vacuum cleaners,Cameras and photographic equipment etc

Technical Specifications

MODEL 1K-12 2K-24 3K-48 4K-48 5K-48
Max.PV Array Power 1000W 2000W 4000W 4000W 6000W
Rated Output Power 1000W 2000W 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 15~115VDC 30~115VDC 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 1 1 2
GRID-TIE OPERATION
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 4.3A 8.7A 13A 17.4A 21.7A
Power Factor >0.99
Efficiency
Maximum Conversion Efficiency (DC/AC) 90%
GRID INPUT
Accepatable Input Voltage Range 90-280VAC or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 30A 40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
BATTERY&CHARGER
Nominal DC Voltage 12VDC 24VDC 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 140A 140A 180A
INTERFACE
Parallel Function N/A N/A Yes Yes Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50℃

Protection Function

Low battery voltage,Over load,Output short circuit ,Over- temperature,Restrain surge interference,Eliminate noise,Protection for thunder striking,provide the reliable power to the home appliances.
