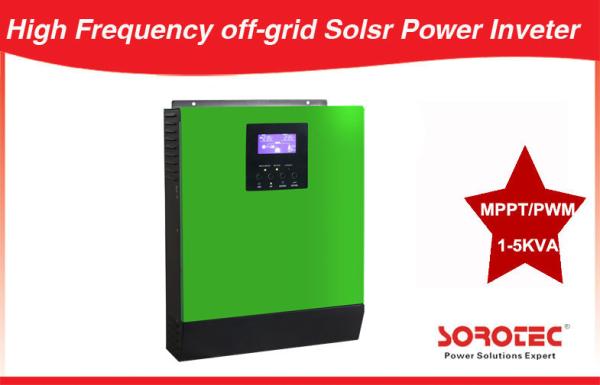

DC / AC High Frequency inverter used in home , Pure Sine Wave
DC / AC High Frequency inverter used in home , Pure Sine Wave
Specifications
Brand Name :
SOROTEC /OEM
Model Number :
SSP3118C2 1-5KVA
Certification :
CE,ROHS,RSO9000
Place of Origin :
China
MOQ :
1pcs
Price :
1-500 USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000PCS Per Month
Delivery Time :
Within 15-30days after receiving your 30% TT deposit
Packaging Details :
Standard Exported Cartons and Pallets
Model :
Hybrid Off-Grid Solar Power Inverter
Capacity :
1kva-5kva
Color :
Green
Wavaform :
Pure Sine Wave
Input l Voltage :
220/230vc
Frequency :
50/60hz
Input Priority :
AC/Solar
Capacity Extansion :
6pcs
Controller :
MPPT solar charge controller
Application :
Home and Office
Description

DC / AC High Frequency inverter used in home , Pure Sine Wave

Key Features

  • AC/Solar input priority selected
  • High frequency pure sine wave output
  • Auto-restart while AC is recovering
  • Protection for overload and short circuit
  • AC/Solar output priority optional
  • Built-in MPPT solar charge controller
  • Charging current selectable based on applications
  • Smart battery charger design can prolong the use life of battery
  • Parallel operation max up to 6 units only available for 4KVA/5KVA
  • Optional input voltage range for home appliances and personal computer

Technical Parameter:

MODEL C2 1K-2425 C2 2K-2425 C2 3K-2425 C2 4K-4880 C2 5K-4880
Rated Power 1KVA/800W 2KVA/1600W 3KVA/2400W 4KVA/3200W 5KVA/4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90% 93%
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 24 VDC 48 VDC
Floating Charge Voltage 27 VDC 54 VDC
Overcharge Protection 31 VDC 60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 600W 600W 4000W
MPPT Range @ Operating Voltage 30 ~ 66VDC 30 ~ 66VDC 60VDC ~115VDC
Maximum PV Array Open Circuit Voltage 75VDC 75VDC 145 VDC
Maximum Solar Charge Current 25A 25A 80A
Maximum AC Charge Current 20A 30A 30A 60 A
Maximum Charge Current 25A 30A 30A 140A
AC charger and solar charger can’t work at the same time.
Maximum Efficiency 98%
Standby Power Consumption 2 W
PHYSICAL
Dimension, D x W x H (mm) 100 x 272 x 355 120 x 295 x 468
Net Weight (kgs) 6.8 7.4 11.0
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C to 55°C
Storage Temperature -15°C to 60°C

Fully Protection:

  • Low battery voltage
  • Over load
  • Output short circuit
  • Over- temperature
  • Restrain surge interference,
  • Eliminate noise
  • Protection for thunder striking

DC / AC High Frequency inverter used in home , Pure Sine Wave
