3000W 50A Outdoor Hybrid Off Grid Solar DC Power System for Solar Panel,Remote Monitoring System Interface
3000W 50A Outdoor Hybrid Off Grid Solar DC Power System for Solar Panel,Remote Monitoring System Interface
3000W 50A Outdoor Hybrid Off Grid Solar DC Power System for Solar Panel,Remote Monitoring System Interface
3000W 50A Outdoor Hybrid Off Grid Solar DC Power System for Solar Panel,Remote Monitoring System Interface
Specifications
Brand Name :
SOROTEC
Model Number :
SHW48500
Certification :
CE,ROHS,RSO9000
Place of Origin :
China
MOQ :
2PCS
Price :
1000USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000PCS Per Month
Delivery Time :
Within 15-30days after receiving your 30% TT deposit
Packaging Details :
Standard Exported Cartons and Pallets
Type :
Hybrid 48VDC Solar Power System
Electric Power :
DC Power Supply
DC Voltage :
48VDC
Rectifier Module :
1-4pcs(optional)
MPPT solar Controller :
1-6pcs(optional)
Solar Power Systen Cabinet :
with Monitoring module and fun module
Structure :
Water-proof and Dust-proof
Maximum Charging Current :
50A(max:61A)
Solar Power :
3000W
Frequency :
45-65hz (standard 50/60hz)
Accessories :
Solar PV Panel
Description

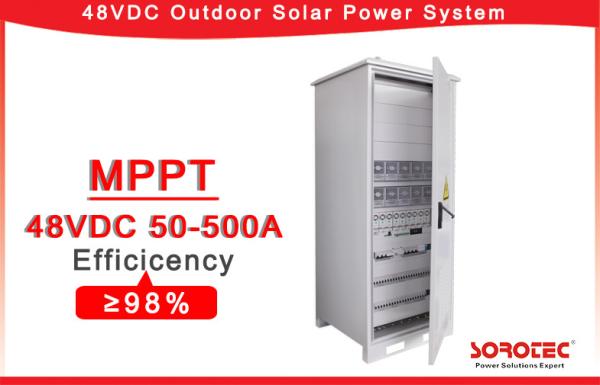

48VDC Power Supply 3000W 50A Outdoor Hybrid Off Grid Solar DC Power System for Solar Panel

Product Description

SOROTEC- SHW48500 Series hybrid off-grid type 48VDC Solar power system which support 220VAC input and 48VDC output power supply.it adopts advanced Maximun Power Point Tracking and MCU microprocessor control technology to make sure the system more reliable and more economical to make full use of solar energy to provide reliable long time back up 48VDC power supply for outdoor telecom equipments,traffic lights and so on independent DC systems .

Key Features

1.Adopt advanced MCU microprocessor control technology
2.Advanced MPPT Technology.High converting efficiency higher than 97% for
minimizing energy loss.
3.Reversed current protection at night.over voltage and reverse polarity protection
4.Capable of selection different charging mode fo various types of batteries
5.Protection degree:IP55
6.Industy-leading power density compact size and high reliability
7.Doorframe designed with waterproof structure, posted on the seal and equipped with wateerproof lock in the door double insulation design
8.Cabine adopt quality galvanized wheet or aluminum coated steel sheet as material, surfce coating anti- UV power
9.Suitable for outdoor installation
10.With remote monitoring system operation

3000W 50A Outdoor Hybrid Off Grid Solar DC Power System for Solar Panel,Remote Monitoring System Interface

Typical Application

Power plant or substation power for controlling, protection and automatic device,Emergency lighting,Communications, steam turbine DC oil pump and so on .

Technical Parameter


SHW48500 Solar System Rectifier Module(1-10) MPPT Solar Charge Controller(1-10)
INPUT
MPPT Range @Operating Voltage 60 ~150VDC
Maximum PV Array Power 3000W
Maximum Input Current 62A
OUTPUT
Nominal Battery Voltage 42-58VDC
​Maximum Charge Current 50A(max:61A)
Maximum Efficiency 98%
Charging Method Three stages: bulk, absorption and floating
PROTECTION
Overload Protection > 110% : audible alarm
Overcharge Protection Yes
Polarity Reversal Protection @Solar Cell & Battery Yes
INDICATORS
LCD Panel LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions
LED Display Three indicators for solar, charging, and load status
Rectifier Module
Rated input voltage 220V
AC input Voltage range AC 90-290V
input Frequency range 45-65HZ
Power factor ≥0.99
Efficiency >92%
Rated output voltage 48V
Rated output current 0-50A
Voltage range 42-58V
WIND CONTROLLER:
Input Power 1KW/2KW
Input Voltage 150-300VAC
Output Voltage 48VDC
Ouput Current 30A/50A
ENVIRONMENT
Humidity 0 ~ 100% RH (No condensing)
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 75°C
Altitude 0 ~ 3000 m

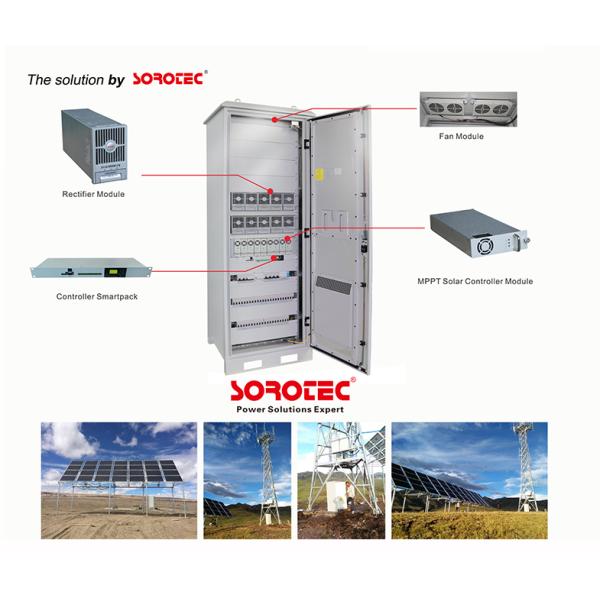

Solar DC Power System Structure:

48VDC Solar DC Power System= Solar Power System Cabinet (1pcs) + 50A Solar Controller Module(1-6pcs optional) + 50A 48VDC Rectifier ( 1-4pcs optional) + Monocrystal Solar Panel+Solar Panel Braket+Combiner Box(1pcs)

(### Solar Power System Cabinet include monitoring module, power distribution units, 4 cooling fans)
