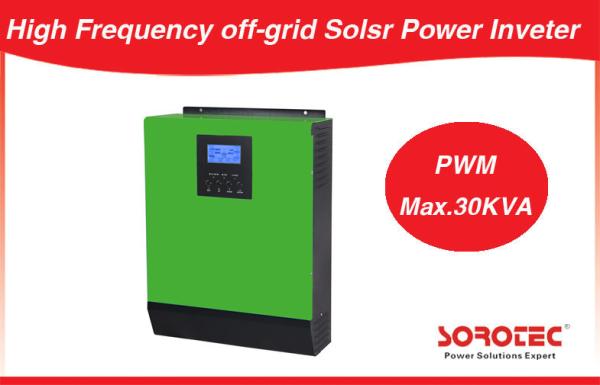

Off Grid Back up and Hybrid Solar Power Inverters for PV Panel , 5Kva 4000W 230Vac
Off Grid Back up and Hybrid Solar Power Inverters for PV Panel , 5Kva 4000W 230Vac
Specifications
Brand Name :
SOROTEC
Model Number :
SSP3118C2 1-5KVA
Certification :
CE,ROHS,RSO9000
Place of Origin :
China
MOQ :
2PCS
Price :
100USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000PCS Per Month
Delivery Time :
Within 15-30days after receiving your 30% TT deposit
Packaging Details :
Standard Exported Cartons and Pallets
Product Name :
Solar Power Inverter
Capacity :
5kva /4000w
Input Voltage :
230VAC
Selectable Voltage Range :
170-280 vac(for personal computer);90-280vac(for home appliances)
Efficiency(Peak) :
93%
Wave Form :
Pure Sine Wave
Dimension,D*W*H :
120*295*468mm
Net Weight :
10KG
Application :
Fridge,Aircondition,computer,TV
Service :
OEM/ODM
Description

5Kva 4000W 230Vac Off Grid Back up and Hybrid Solar Power System Solar Inverter for PV Panel

Brief Introduction:

SSP3118C2 1-5kva series ia an multi-function wall-mounted type Hybrid and Off Grid Solar Power Inverter for pv penel system. its capacity from 1kva to 5kva. built-in PWM/MPPT (optional)solar charge controller .with AC/PV/AC&PV three priority charging modes .adopts advanced papallel technology can achieve more capacity to extend and max up to 24kw using 6 units system only for 4KVA/5KVA. reliable 3- phase input are avilable by parallel working.selectable input voltage range for computer or home appliances.Output power factor is 0.8 can take more loads such as Fridge,Air-conditional ,personal computer and so on home and office equipments.

Key Features:

  • Pure sine wave output inverter
  • Cold start function
  • Remote panel available
  • Auto restart while AC is recovering
  • Overload and short circuit protection
  • Compatible to mains voltage or generator power
  • Selectable charging current based on applications
  • Configurable AC/Solar input priority via LCD setting
  • Built-in MPPT/PWM (Optional) solar charge controller
  • Smart battery charger design for optimized battery performance
  • Parallel operation with up to 6 units only available for 4KVA/5KVA
  • Selectable input voltage range for home appliances and personal computers

Full protection:

Low battery voltage Protection,Output short circuit Protection,Over load Protection,Over- temperature Protection,Eliminate noise Protection

,Thunder striking Protection,Restrain surge interference Protection.

Applications:

Supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc.

SSP3118C2 Series Solar Power Inverter Descriptions:

MODEL SSP3118C 1K-2425 SSP3118C-2K 2425 SSP3118C 2K-2460 SSP3118C 3K-2425 SSP3118C 3K-2460 SSP3118C 4K-4880 SSP3118C 5K-4880
Rated Power 1000VA/800W 2000VA/1600W

2000VA/

1600W

3000VA/

2400W

 3000VA/2400W

4000VA/

3200W

5000VA/

4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90% - 93% 93%
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 24 VDC 24VDC 24 VDC 24 VDC 24 VDC 48 VDC
Floating Charge Voltage 27 VDC 27 VDC 27 VDC 27 VDC 27 VDC 54 VDC
Overcharge Protection 31 VDC 31 VDC 31 VDC 31 VDC 31 VDC 60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 600W 600W 1500W 600W 1500W 4000W
MPPT Range @ Operating Voltage 30VDC ~ 66VDC 30VDC ~ 66VDC 30VDC ~ 115VDC 30VDC ~ 66VDC 30VDC ~ 115VDC 60VDC ~115VDC
Maximum PV Array Open Circuit Voltage 75VDC 75VDC 145VDC 75VDC 145VDC 145 VDC
Maximum Solar Charge Current 25A 25A 60A 25A 60A 80A
Maximum AC Charge Current 20A 30A 30A 30A 30A 60 A
Maximum Charge Current 25A 30A 60A 30A 60A 140A
AC charger and solar charger can’t work at the same time.
Maximum Efficiency 98%
Standby Power Consumption 2 W
PHYSICAL
Dimension, D x W x H (mm) 100 x 272 x 355 120 x 295 x 468
Net Weight (kgs) 6.8 7.0 7.4 11
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C - 55°C
Storage Temperature -15°C - 60°C
