Specifications
Brand Name :
SOROTEC
Model Number :
SSP3118C1 1-5KVA
Certification :
CE,ROHS,RSO9000
Place of Origin :
China
MOQ :
2PCS
Price :
100USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000PCS Per Month
Delivery Time :
Within 15-30days after receiving your 30% TT deposit
Packaging Details :
Standard Exported Cartons and Pallets
Product :
Off Grid Solar Power Inverter
Wave Form :
Pure Sine Wave Output Inverter
Transformer :
Not
Capacity :
1000va / 800w
Design :
High Frequency Half Bridge
Protection :
Overload,overcharge,output short circuit and so on
Selectable Input Voltage Range :
Yes
Application :
Fridge,Aircondition,computer,TV,solar power system
Dimension :
95*240*316mm
Weight :
5.0kg
Service :
OEM Service
Warranty :
1 Year
Maintenance Service :
Allowed
Accessories :
Input wires and Output Plug
Description

1000va 800w Small Power High Frequency Pure Sine Wave Solar Energy Inverter for Air Conditional-SSP3118C1 Series Solar Power Inverter

Key Features:

1. Pure sine wave output solar power inverter

2. Cold start function and Remote panel available

3. Auto restart while AC is recovering

4. Overload and short circuit protection

5. Compatible to mains voltage or generator power

6. Selectable charging current based on applications

7. Configurable AC/Solar input priority via LCD setting

8. Built-in MPPT/PWM (Optional) solar charge controller

9. Intelligent battery charger design for optimized battery performance

10.Reliable Parallel operation with up to 6 units only available for 4KVA/5KVA

11. Selectable input voltage range for home appliances and personal computers

Small Power High Frequency Pure Sine Wave Solar Energy Inverter 1000va 800w

Protection Function:

Protection for low battery voltage,over load,output short circuit and over- temperature Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.

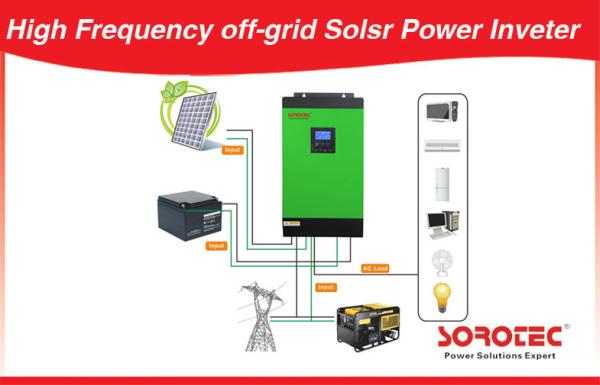

Typical Applications:

Supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc.


Small Power High Frequency Pure Sine Wave Solar Energy Inverter 1000va 800w

Technical Descriptions for SSP3118C1 1-5KVA Off-Grid Solar Power Inverter

MODEL C1 1K-1250 C1 2K-2450 C1 3K-2450 C1 4K-4850 C1 5K-4850
Rated Power 1000VA / 800W 2000VA/1600W 3000VA / 2400W 4000VA / 3200W 5000VA / 4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5 %
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90% 93%
Transfer Time 10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 12 VDC 24 VDC 48 VDC
Floating Charge Voltage 13.5 VDC 27 VDC 54 VDC
Overcharge Protection 15.5 VDC 31 VDC 60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 50VDC 60VDC 105VDC
Standby Power Consumption 1 W 2 W 2W
Maxmum Solar Charge Current 50A 50A 50 A
Maximum AC Charge Current 20 A 30 A 60 A
Maximum Charge Current 50 A 50 A 110 A
PHYSICAL
Dimension, D x W x H (mm) 95 x 240 x 316 100 x 272 x 355 120 x 295 x 468
Net Weight (kgs) 5 6.4 6.9 9.8 9.8
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C - 55°C
Storage Temperature -15°C - 60°C
