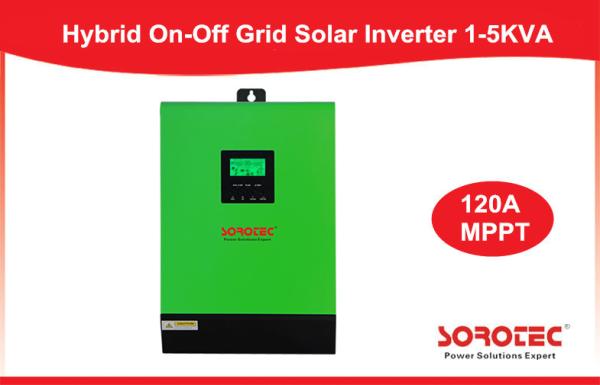

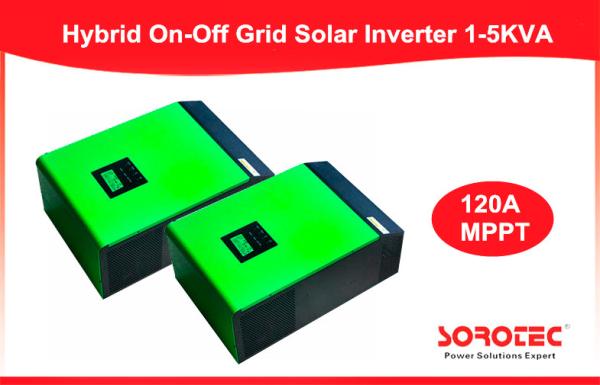

Pure Sine Wave Hybrid Solar Inverter / Solar Grid Tie Inverter For Home , Green or White Color
Pure Sine Wave Hybrid Solar Inverter / Solar Grid Tie Inverter For Home , Green or White Color
Pure Sine Wave Hybrid Solar Inverter / Solar Grid Tie Inverter For Home , Green or White Color
Pure Sine Wave Hybrid Solar Inverter / Solar Grid Tie Inverter For Home , Green or White Color
Specifications
Brand Name :
SOROTEC
Model Number :
SSP3119C 1000-5000VA Solar Inverter
Certification :
CE,ROHS,RSO9000
Place of Origin :
China
MOQ :
1PCS Solar Inverter Available
Price :
Negotiable Price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000PCS Solar Inverter Per Month
Delivery Time :
Within 15-30days after receiving your 30% TT deposit for Solar Inverter
Packaging Details :
Standard Exported Cartons and Pallets for Solar Inverter
Product Name :
Pure Sine Wave Hybird Solar Inverter
Power Supply :
1KVA 2KVA 3kva 4KVA 5kva
Color :
Green OR white
Parallel Function :
3KVA/4KVA/5KVA (Max .30kw using 6units)
Wave Form :
Pure Sine Wave
Application :
Home Appliance
Solar Charge Controller :
80A/120A MPPT
Description

Pure Sine Wave Hybird Solar Inverter 1KVA 2KVA 3kva 4KVA 5kva for Home Appliance

SSP3119C Series On-Off Grid Hybrid Solar Power Inverters

1. High frequency pure sine wave solar power inverter

2. On grid and off grid hybrid solar power inverter

3. Built-in with 80A/120A MPPT Solar Charge Controller

4. With Battery Bank/Pack For Energy Storage function

5. Power Sourcing from Solar System(PV)/ Utility(AC) / Battery

6. Charging/Discharging Time can be set up as requested

Key Features

1. Inbuilt 80A/120A MPPT Solar Charge Controller

2. Charging/Discharging time can be Set Up

3. Parallel Operation Max up to 6 units for 3K/4K/5K

4 . Self-consumption and Feed-back to the grid

5. Programmable Supply Priority for PV, Battery or Grid

6. Monitoring software for real-time status display and control

7. Multiple operation modess:Grid-tie,off-grid and grid-tie with backup

8. User-Adjustable Charging Current and Voltage

SSP3119C Wall Mounted Integrated Solar Power Inverter TechnicalSpecification

MODEL 1K-12 2K-24 3K-48 4K-48 5K-48
Max.PV Array Power 1000W 2000W 4000W 4000W 6000W
Rated Output Power 1000W 2000W 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 15~115VDC 30~115VDC 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 1 1 2
GRID-TIE OPERATION
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 4.3A 8.7A 13A 17.4A 21.7A
Power Factor >0.99
Efficiency
Maximum Conversion Efficiency (DC/AC) 90%
GRID INPUT
Accepatable Input Voltage Range 90-280VAC or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 30A 40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
BATTERY&CHARGER
Nominal DC Voltage 12VDC 24VDC 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 140A 140A 180A
INTERFACE
Parallel Function N/A N/A Yes Yes Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50℃

Protection Function

Low battery voltage,Over load,Output short circuit ,Over- temperature,Restrain surge interference,Eliminate noise,Protection for thunder striking,provide the reliable power to the home appliances.

Applications

Provide the reliable long backup time power for the TV,Computer,DVD,VCD, Printing machines,Data center, Financial and Securities, Large Data rooms,Power tools, lawn mowers, vacuum cleaners,Cameras and photographic equipment etc
