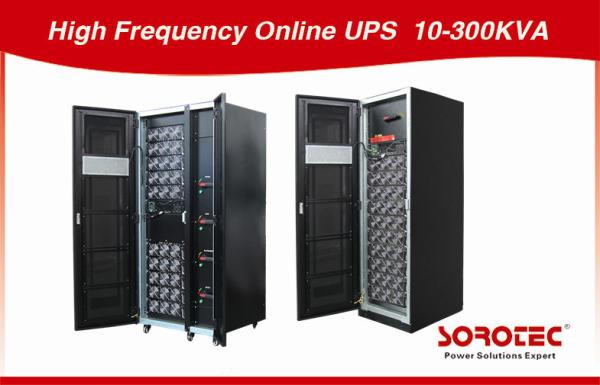

High Efficiency Onduleur Remote Control UPS for Internet Data Center , 30-300KVA Capacity
High Efficiency Onduleur Remote Control UPS for Internet Data Center , 30-300KVA Capacity
High Efficiency Onduleur Remote Control UPS for Internet Data Center , 30-300KVA Capacity
High Efficiency Onduleur Remote Control UPS for Internet Data Center , 30-300KVA Capacity
Specifications
Brand Name :
SOROTEC
Model Number :
MPS9335C 10 - 300KVA
Certification :
CE,ROHS,ISO9000
Place of Origin :
China
MOQ :
1PCS (Sample are Available)
Price :
Negotiable Price
Payment Terms :
30% TT in advance, the balance before shipping
Supply Ability :
10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Delivery Time :
Within 15-30days after receiving your 30% TT deposit
Packaging Details :
Standard Exported Cartons and Pallets for Modular UPS
Product Name :
30-300KVA Modular UPS
Model :
MPS9335C series
Capacity :
30-300KVA
Phase :
3Phase
Online UPS :
Online capacity expansion amd maintenance
Application :
Industry/Telecom/Servers
Easy to Maintain :
Yes
OEM Produce :
Available
Description

High Efficiency Onduleur 30-300KVA Modular UPS MPS9335C PF=1 , Efficiency Over 96%

MPS9335C Series high frequency online UPS

Output power factor is 0.9

3Ph in and 3Ph out

Flexible modular structure

Online capacity expansion and maintenance

Extra LCD display 13 type languages

Support 4 units UPS for parallel working

Extra wide input voltage and frequency ranges

Application:

This modular UPS ,capacity from 10 to 300 kva,widely used to provide reliable and long time backup power supply for IDC(Internet Data Center), computing center, ISP (Internet Service Provider ),Telecom,Finance bank and securities, Tax, hospital system, industrial automation, precision equipment, etc.

Key Features:

1. Efficiency > 96% at 50%-75% rated load, input THDi<3%

2.Easy-to-install: Top/ bottom cabling

3.Easy-to-maintain: UPS, failed part can be replaced shortly

4.Easy-to-modify: The number of battery cells can be configured flexibly

5. 6-inch extra large LCD that can display 12 language

6.Provide large LCD touch screen (optional)

7.Each UPS modules provide 4.5KW charge capacity. equivalent to 10 to 12A

8.On-Line Double Conversion, fully isolating the influences of power grid pollution

9.Advanced DSP full digital control technologies

10.Advanced distributed active parallel technology realizes parallel operation of 4 UPS units

Technical Specifications of Modular UPS, MPS9335 10-300KVA:

Model

 MPS9335 10-300KVA
Capacity 10-300KVA
Main input
Input voltage 380V/400V/415AC(Optional South America 208v)
Input Frequency Range 50/60Hz
Power Factor Full load>0.99 ,Half load >0. 98
THDi THDi <3%
Input power soft-start fantion 5-30s settable
Input Voltage Ranges 228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40%
Frequency Range 40-70Hz
Battery
Battery Voltage ±240VDC(Default),12V Battery30-40pcs can be choose
Charge Voltage accuracy ± 1%
Bypass
Bypass Input voltage 380/400/415VAC 3-phase 4-wire
Voltage Ranges Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software
Overload Capacity 150%,long term operation,150%<load<180%,more than 1 hour ,load>1000% 100ms
Output
Inverter Output Voltage 380/400/415VAC 3-phase 4-wire
Voltage Accuracy ± 0.5%(balanced load), ± 1% (unbalanced load)
THDi THD<1%(linear load), THD<3%(nonlinear load)
Power Factor 0.9
Three Phase Angle accuracy 120°c ± 0.5°c
Current Crest Ratio 3:1
Overload Capacity 110%1h,125%10mins,150%1mins,>150%200ms
Transfer Time 0ms,15ms(ECO Mode)
System
Frequency 50Hz/60Hz (Settable)
Mains synchronization range ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz
Protection Level IP20
Communication Ports RS232,RS485,dry contact,SNMP card,EPO,generator port
System efficiency > 96% at load above 50%, >95% at load above 25%
Operation Temperature 0-40 °c
Storage Temperature -25 °c -70 °c (without battery)
Humidity 0-95%(no-condensing)
Noise(dB) 55-62dB,Adjusted with load
5 module cabinet module :RMS050/10, RMS100/20, RMS150/30 150KG
10 module cabinet module :RMS100/10, RMS200/20, RMS300/30 150KG
module :PM10 10KVA power module :20KG
Weight module :PM20 20KVA power module :21KG
module :PM30 30KVA power module :32KG
Dimendion(W XD XH)mm 5 module cabinet 600X1400X850
10 module cabinet 600X2070X850
power module 440X132X660(10KVA/20KVA/30KVA)
