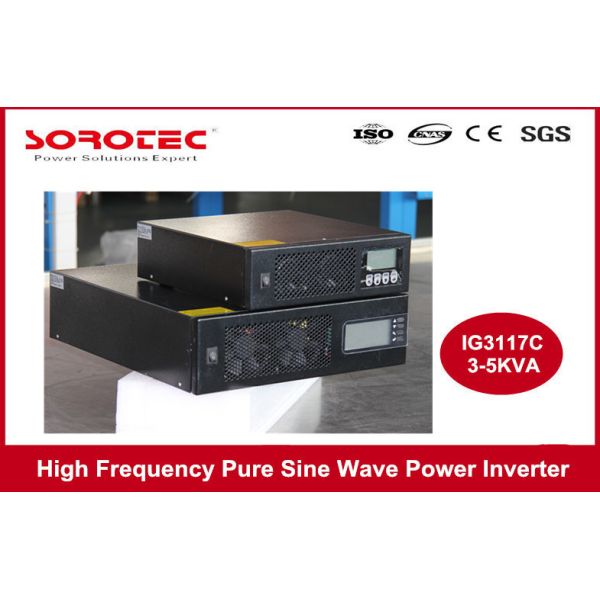

High Frequency Solar Power Inverters / Solar Energy Inverter with CE Certifications
High Frequency Solar Power Inverters / Solar Energy Inverter with CE Certifications
High Frequency Solar Power Inverters / Solar Energy Inverter with CE Certifications
High Frequency Solar Power Inverters / Solar Energy Inverter with CE Certifications
Specifications
Brand Name :
SOROTEC
Model Number :
IG3117C 3000-5000VA
Certification :
CE,ROHS,ISO9000,ISO14000
Place of Origin :
Guangdong (Mainland), China
MOQ :
1PCS Inverter ( Sample Are Available)
Price :
Negotiable
Payment Terms :
30% TT in advance, the balance before shipping
Supply Ability :
10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Delivery Time :
Within 15-30days after receiving your 30% TT deposit
Packaging Details :
Standard Exported Cartons and Pallets for Power Inverters
Product Name :
Off Grid Power Inverter
Capacity :
3-5KVA
Wave Form :
Pure Sine Wave
Output Power Factor :
0.8
Application :
Home Equipments
Frequency :
50/60HZ
Convertion :
DC to AC
Dispaly :
LCD Display
Power Supply :
Utility/Generator
Description

3000VA 2400W 24V High Frequency Pure Sine Wave Power Inverter with CE Certifications

Quick Detailes:

High frequency pure sine wave power inverter special for home use,high efficiency,small size and light weight,3000VA/2400W,5000VA/4000W,Nominal voltage 230VAC.LCD Display,Standard Output power factor 0.8

Key Features:

1. High Efficiency 98% Pure Sine Wave Inverter


2.High frequency switching technology


3.High efficient DC to AC conversion minimizing energy loss


4.Supporting home appliance/ office / Lighting Equipments


5. Support generator power input

6.Support Wide/Narrow input voltage range

7.Shortest transfer time from AC to DC

Technical Specifications:

MODEL IG3117C 3000VA-5000VA
Capacity 3000VA/2400W 5000VA/4000W
Nominal Voltage 230VAC
Nominal Frequency 50HZ/60Hz
Input
Voltage Range 170VAC ~270VAC(Normal range)
91~284VAC(generator/wide range)
Frequency range 40HZ±1Hz ~65Hz±1Hz
Output
Voltage Regulation 230VAC±10%
Frequency Regulation 50HZ/60Hz±1Hz(Auto detection)
Wave Form Pure sine wave
Power Factor 0.8
Efficiency ≥90%(battery mode)
≥98%(line mode)
Over-load Protection At 110%-150% Load For 10s
Load >150% For 5s
Surge Rating 10000VA
Transfer time 10ms
Battery
DC voltage 24Vor48vdc 48Vor96vdc
Nominal charge current 20A(95-175V,gen/wide,only)
20/35A(Optional)
Overcharge protection Bat. V≥60Vdc,Fault, Buzzer alarm
Safety & Working Environment
Safety Certification CE(EN60950)
EMI Classification EN62040-2, CLASS A
Operating Temperature Range 0℃ to 45℃
Storage temperature –15℃ to 60℃
Altitude 0 - 1500 Meters
Relative humidity 5% to 95% non-condensing
Audible noise 60dB max
Cooling Forced air , variable speed fan
Dimension 350*110*407 350*110*407
Weight 8KG 9KG

High Frequency Solar Power Inverters / Solar Energy Inverter with CE Certifications

Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.

QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
