Waterproof Solar Electronic Power Supply For Telecom Base Station , Single Phase,Remote Monitoring
Waterproof Solar Electronic Power Supply For Telecom Base Station , Single Phase,Remote Monitoring
Specifications
Brand Name :
SOROTEC
Model Number :
SHW48500
Certification :
CE,ROHS,RSO9000
Place of Origin :
China
MOQ :
2PCS
Price :
1000USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000PCS Per Month
Delivery Time :
Within 15-30days after receiving your 30% TT deposit
Packaging Details :
Standard Exported Cartons and Pallets
Product Name :
SHW48500 Solar 48VDC Power System With IP55 Protection
Type :
Hybrid and Off Grid 48v Solar DC power supply
Phase :
Single Phase
Modular Structure :
MPPT Solar Controller and Rectifier module
Maximum PV Array Power :
3000w
Charging Mode :
Selectable
Maximum Input Current :
50A
Application :
Communication Base Station
Description

SHW48500 Solar 48VDC Power System For Telecom Base Station With IP55 Protection

SHW48500 Series 48VDC Solar Power System Maximum PV Array Power 3000W,Charing method three stages:bulk,absorption and floating.built-in 48v 50A recitifier module and MPPT Solar controller module.mainly used to provide highefficiency and reliable long back up time 48VDC Power supply for Outdoor Telecom Base Station Equipments.

Product description:

■Hybrid 48VDC Outdoor Solar power system

■MCU microprocessor control technology

■IP55 Protection degree,Suitable for outdoor installation.

■Different charging mode for diffrent type batteries.
■Industy-leading power density compact size.
■Doorframe designed with waterproof structure,

■posted on the seal and equipped with waterproof lock

on the door double insulation design;
■Cabine adopt quality galvanized sheet or aluminum coated steel
■Advanced MPPT Technology,High converting efficiency >97%
■Reversed current protection at night, reverse polarity protection.

■With remote monitoring system operation.

Technical Specifications of Solar DC Power System:

SHW48500 Solar System Rectifier Module (1-10pcs) MPPT Solar Charge Controller (1-10pcs)
MPPT Solar Charge Controller
INPUT
MPPT Range @Operating Voltage 60 ~115VDC
Maximum PV Array Open Circuit Voltage 145VDC
Maximum PV Array Power 3000W
Maximum Input Current 50A
OUTPUT
Nominal Battery Voltage 42-58VDC
Maximum Charge Current 50A
Maximum Efficiency 98%
Charging Method Three stages: bulk, absorption and floating
PROTECTION
Overload Protection > 110% : audible alarm
Overcharge Protection Yes
Polarity Reversal Protection @Solar Cell & Battery Yes
INDICATORS
LCD Panel LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions
LED Display Three indicators for solar, charging, and load status
Rectifier Module
Rated input voltage 220V
AC input Voltage range AC 90-290V
input Frequency range 45-65HZ
Power factor ≥0.99
Efficiency >92%
Rated output voltage 48V
Rated output current 0-50A
Voltage range 42-58V
ENVIRONMENT
Humidity 0 ~ 100% RH (No condensing)
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 75°C
Altitude 0 ~ 3000 m

Typical Application:

Power plant or substation power for controlling, protection and automatic device, emergency lighting, communications, steam turbine DC oil pump and so on independent DC systems. It can provide reliable power supply in the case of a power failure completely in plant or substation. The traditional DC systems connect battery pack and run with float charging mode. The new DC system run with silicon controlled rectifying power supply for battery.Waterproof Solar Electronic Power Supply For Telecom Base Station , Single Phase,Remote Monitoring

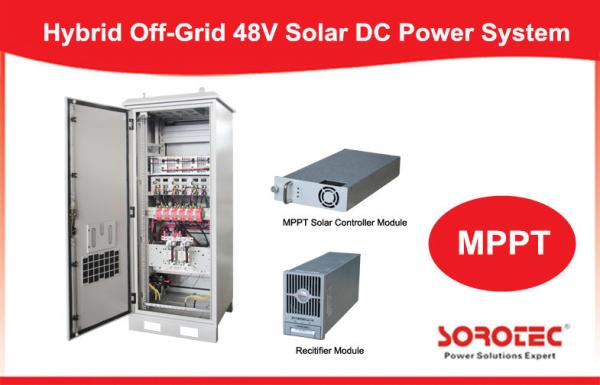

SHW48500 Solar DC Power System Show:

Waterproof Solar Electronic Power Supply For Telecom Base Station , Single Phase,Remote Monitoring
