Specifications
Brand Name :
SOROTEC
Model Number :
HP9116C/HP9316C Plus 1-20KVA UPS
Certification :
CE,ROHS,ISO9000
Place of Origin :
China
MOQ :
2PCS uninterruped power supply ups
Price :
1-1000USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000PCS/Month for H
Delivery Time :
Within 15-30days after receiving your 30% TT deposit
Packaging Details :
Standard Exported Cartons and Pallets for uninterrupted power supply ups
Product name :
Uninterrupted Online UPS
Model :
HP9116C/HP9316C Plus Series
Capacity :
1kva-20kva
Digital Control :
Yes
Input Power Factor :
0.99
Waveform :
Pure Sine wave ups
Double convertion :
AC-DC-AC
Application :
UPS for industry
Description

Reliable 3 - Phase Smart Online Electrical Ups For Industry , Digital Control

Product Descriptions:

HP9116C/HP9316C Plus series high frequency online ups,which capacity from 1kva to 20kva ,with high output power factor 0.9 can take more loads than before.it supports 3 units ups for parallel working and wide input voltage and frequency range well suitable for severe grid environment ,optional interface such as RS232,USB,SNMP card for remote control.Battery voltage can be choice depend on capacity and can satidfy differient requiement.

HP9116C/HP9316C Plus series widely used to provide the reliable and long time backup uninterrupted power supply for Data centre, bank station, network,communication equipment,office,automatic equipment,monitor equipment, control system and so on precision equipments.

Key Features:

  1. High efficiency ,small size and light-weight
  2. Full Digital control DSP technology
  3. Double- conversion online ups
  4. High output power factor 0.9
  5. ECO mode efficiency up to 98%
  6. Wide input voltage and frequency range
  7. Support maximum 3 units for parallel running
  8. Battery voltage optional and charge current adjustable
  9. Select trip technology can avoid and isolation system fault
  10. Accepts 3 phase input or 1phase input for three phase UPS
  11. Smart RS232,USB,SNMP card can working in the meantime

Technical Parameters of High Frequency Online UPS HP9316C PLUS 10-20KVA

Model HP9116C/HP9316C 10-20KVA PLUS
10KT-XL 15KT-XL 20KT-XL
Rated Power 10KVA/9KW 15KVA/13.5KW 20KVA/18KW
Rated Voltage 220VAC/380VAC 3phase with ground
Rated Frequency 40-70 Hz (50/60 Auto-sense)
Input
Voltage Range Single phase: 120 ~ 275VAC ( 176-275VAC full load ) Three phase: 209-475VAC ( 304-475VAC full load)
Power Factor >0.95(Three phase) ≥0.99
Output
Voltage Regulation 208/220/230/240VAC (±1%)
Frequency Regulation 50/60HZ±0.05 Hz
Power Factor 0.9
Voltage Distortion Linear load＜2% ,Non-Linear load＜5%
Overload Capability 105% ~ 125% for 10min; 125% ~ 150% for 30s,>150% for 500 ms
Current Crest Ratio 3:01
Transfer Time 0ms (AC mode→Battery mode)
Battery
DC Voltage 192VDC 192/216V/240VDC
Recharge Current 4A 4A (8A optional)
Display
LCD Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate.
Communication
Interface Smart RS232,SNMP card (optional) USB (optional)
Environment
Operation Temperature 0~40℃
Humidity 0~95% (Non-condensing)
Storage Temperature -25℃~55℃
Sea Level Elevation ＜1500m
Noise Level (1m) ＜55dB
Physics Characteristic
Weight(KG) 16.9 31
Dimensions :(Wx D x H)mm 212X420X500 248X565X500

Product Show:

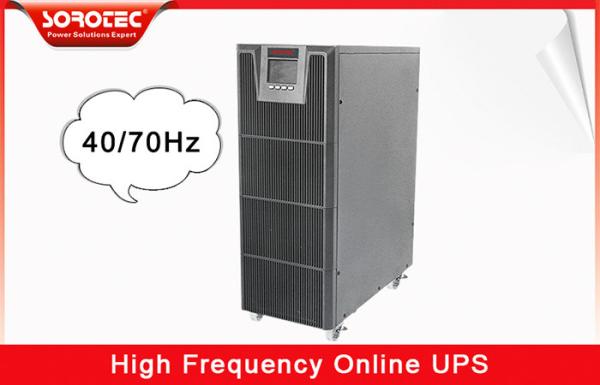

Reliable 3 - Phase Smart Online Electrical UPS for Industry , Digital Control
