AC - DC - AC Inverter High Frequency Online UPS Uninterruptable Power Supply 10KVA
AC - DC - AC Inverter High Frequency Online UPS Uninterruptable Power Supply 10KVA
AC - DC - AC Inverter High Frequency Online UPS Uninterruptable Power Supply 10KVA
AC - DC - AC Inverter High Frequency Online UPS Uninterruptable Power Supply 10KVA
Specifications
Brand Name :
SOROTEC
Model Number :
HP9116C Plus 6-10KVA Online UPS
Certification :
CE,ROHS,ISO9000
Place of Origin :
China
MOQ :
2PCS High Frequency Online UPS
Price :
1-1000USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000PCS/Month for High Frequency Online UPS
Delivery Time :
Within 15-30days after receiving your 30% TT deposit
Packaging Details :
Standard Exported Cartons and Pallets for High Frequency Online UPS
Product Name :
Uninterruptable Power Supply 10KVA
UPS Capacity :
10KVA/9KW
Power Factor :
0.9
Input Voltage :
120-275VAC
Frequency :
40-70HZ
Battery Voltage :
192VDC
Weight :
62KG
Dimension :
248*500*655mm
Description

AC - DC - AC Inverter High Frequency Online UPS Uninterruptable Power Supply 10KVA

Product Name Uninterruptable Power Supply 10KVA
Function Stable to output and Uninterrupted Power Supply for loads
Model HP9116C PLUS 6-10KVA
Output Power Factor 0.9
Display LCD display
Rated Frequency 40-70HZ
Interface Smart RS232,SNMP(optional),USB(optional)
Advantages High Efficiency ,Small Size,Light Weight,Low Noise ,Stable to output
Applications

Data centre, bank station, network , communication equipment, office, automatic equipment,monitor equipment,control system
oem/odm produce and sample are available,welcome to inquiry us!

  • Multifunction Friendly Design&Advanced Parallel Technology

Frequency conversion provides more stable output;Select trip technology avoid and isolation system fault;

Flexible extension capacity and redundance management;On line mode provide higher system availability;

High efficiency mode provides more economic operation;Stable parallel control technology support 3 units for parallel working

  • Highly Flexible & Extendable

Battery voltage optional depend on capacity,convenience to get more back up time and lower system invests,Charge current can be adjusted,More discharge time and more capacity battery.

Support 3 phase input or 1 phase input for three phase UPS,Advanced Digital control DSP technology and best power component.Super wide input voltage and frequency range suitable for bad power quality.

  • Powerfull Function,Output PF.= 0.9

Output Power Factor 0.9 that means can take more loads,Three phase input model support three phase PFC,input THDI<5%,Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing1%. Efficiency up to 93.5%when take the 30%load,ECO mode efficiency up to 98%

Technical Parameters of High Frequency Online UPS HP9116C PLUS 6-10KVA

Model HP9116C 6-10KVA
6KT 6KT-XL 10KT 10KT-XL
Rated Power 6KVA/5.4KW 10KVA/9KW
Rated Voltage 220/230/240VAC
Rated Frequency 40-70Hz
Input

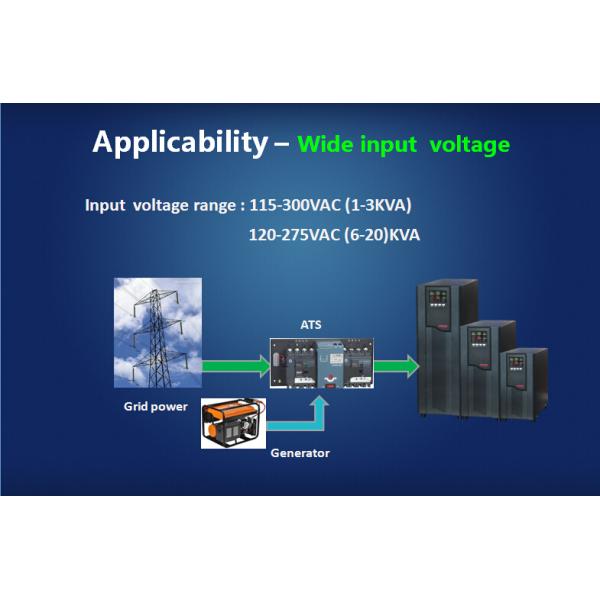

Voltage Range 120~275VAC (±3VAC)
THDi ＜5%
Power Factor ≥0.99
Output
Voltage Regulation 220±1%VAC
Frequency Regulation 50/60 Hz±0.2Hz
Waveform Pure sine wave
Power Factor 0.9
Voltage Distortion Linear load＜2％ Non-linear load＜4％
Overload Capability 105%~125% for 1 min；125%~150% for 30 s; >150% for 0.5 s
Efficiency >94%
Current Crest Ratio 3:01
Transfer Time 0ms (AC mode→Battery mode)
Battery
DC Voltage 180VDC 192/240VDC 180VDC 192/240VDC
Recharge Time 5hours to 90% of capacity
Recharge Current 1A 4.2A 1A 4.2A
Display
LCD Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.
Communication
Interface Smart RS232, SNMP(Optional),USB (Optional)
Environment
Operation Temperature 0~40℃
Humidity 20~90% (Non-condensing)
Storage Temperature -25℃~55℃
Sea Level Elevation ＜1500m
Noise Level (1m) ＜55dB
Physics Characteristic
Weight
(KG)		 59 14 62 16
Dimensions: Wx D x H )mm 248X500X565 212X500X420 248X500X565 212X500X420

AC - DC - AC Inverter High Frequency Online UPS Uninterruptable Power Supply 10KVA
