Specifications
Brand Name :
SOROTEC
Model Number :
HP9116C PLUS
Certification :
CE,ROHS,RSO9000
Place of Origin :
China
MOQ :
1PCS
Price :
USD10000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000PCS Per Month
Delivery Time :
Within 15-30days after receiving your 30% TT deposit
Packaging Details :
Standard Exported Cartons and Pallets
product name :
High Frequency Online UPS
MODEL :
1-20KVA
Nominal voltage :
220/230/240/380VAC
Power Factor :
0.9
Phase :
1Ph in/1Ph out
Wave Form :
Pure Sine Wave
Battery Voltage :
24VDC/36VDC/48VDC/72VDC/96VDC
Frequency :
40-70HZ
Technology :
IGBT
Application :
network.telecom
Description

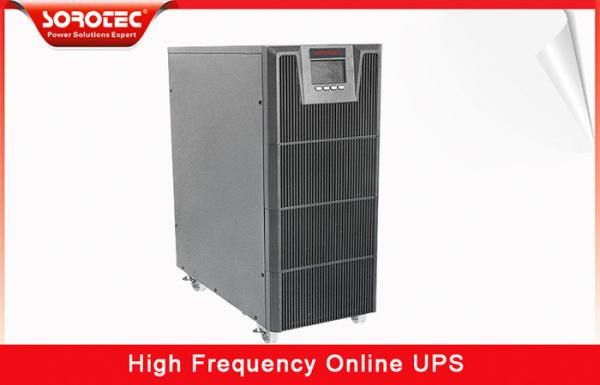

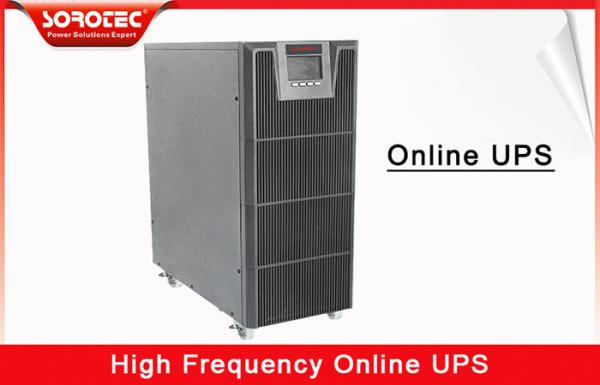

Backup power,1kva/0.9kw High Frequency UPS Support Maxium 3units for Parallel Working

Key Features:

1Ph in/1Ph out online UPS adopt advanced three-level inverter and stable parallel control technology to provide reliable power supply for data centre, telecom, medical and so on precision equipment.

Product Brief

Model HP9116C/HP9316 Plus 1-20k series
Type
Phase 1 Ph in/1Ph out & 3Ph in/3 Ph out
Capacity 1-20KVA
Output Power Factor 0.9
Nominal Voltage 220/230/240/380VDC
Nominal Frequency 40-70HZ
Parallel Working Maximum 3 units
Battery Voltage 24VDC/36VDC/48VDC/72VDC/96VDC
Transfer Time 0ms

Muilti-function and Friendly Design


Advanced Parallel Technology
1.Stable parallel control technology make sure current sharing to 1%.

2.Select trip technology can avoid and isolation system fault then improved system availability.

3.Flexible extension capacity and redundance management that can satisfy all kinds of 4.requirements.

5.Support maximum 3 units for parallel working Flexible strategy.

Flexible Strategy
6.On line mode provides higher system availability.

7.High efficiency mode provides more economic operation.

8.Frequency conversion provides more stable output.

Model: GP9312C 10-100KVA(3Ph/1Ph)

Higher Power Factor /Higher Efficiency /Support Three Phase Input

Output Power Factor Up To 0.9

Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.


Input power factors up to 0.99

Three phase input model support three phase PFC , input THDI<5%

Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.

The efficiency up to 94%

Efficiency up to 93.5%when take the 30%load

ECO mode efficiency up to 98%

Application:
Data Center ,Bank Station,Network,Communication Equipment,Office,Automatic Equipment,
Monitor Equipment,Control System,Computer Center,Precision Equipment and so on

Technical Specification:

Model HP9116C 1-3KVA
1KT 1KT-XL 2KT 2KT-XL 3KT 3KT-XL
Rated Power 1KVA/0.7KW 2KVA/1.4KW 3KVA/2.1KW
Rated Voltage 220/230/240VAC
Rated Frequency 50/60 Hz
Rated Frequency
Voltage Range 115~295VAC (±3VAC)
Frequency Range 50HZ: (46~54HZ); 60HZ:(56HZ~64HZ)
Power Factor > 0.98
Output
Voltage Regulation 220/230/240X (1±2%)VAC
Frequency Regulation 50/60 Hz±0.05Hz
Power Factor 0.7/0.8 (Optional)Standard 0.7
Voltage Distortion Linear load＜3％ Non-linear load＜6％
Overload Capability 110%~150% for 30 sec；≥150% for 200ms
Current Crest Ratio 3∶1
Transfer Time 0ms (AC mode→Battery mode)
Battery
DC Voltage 36VDC 96VDC 96VDC
Recharge Time 5 hours to 90% of capacity after full load discharge
Recharge Current 1A 4A/8A (Optional) 1A 4A/8A (Optional) 1A 4A/8A (Optional)
Display
LCD Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.
Communication
Interface Smart RS232, SNMP(Optional),USB (Optional)
Environment
Operation Temperature 0~40℃
Humidity 0~95% (Non-condensing)
Storage Temperature -25℃~55℃
Sea Level Elevation ＜1500m
Noise Level (1m) ＜45dB <50dB <50dB
Physics Characteristic
Weight
(KG)		 N.W 14 7 31 13.5 31.5 14
G.W 16 9 33 16 33.5 16.5
Dimensions: Wx D x H )mm 145X400X220 192X460X340

Backup power，1kva/0.9kw High Frequency UPS Support Maxium 3units for Parallel Working

Product tags

800 kva ups

,

ups power unit

,

ups power factor
Send your message to this supplier
Send Now

Backup power，1kva/0.9kw High Frequency UPS Support Maxium 3units for Parallel Working

Ask Latest Price
Product Detail
Brand Name :
SOROTEC
Model Number :
HP9116C PLUS
Certification :
CE,ROHS,RSO9000
Place of Origin :
China
MOQ :
1PCS
Price :
USD10000
Contact Supplier
Backup power，1kva/0.9kw High Frequency UPS Support Maxium 3units for Parallel Working
Backup power，1kva/0.9kw High Frequency UPS Support Maxium 3units for Parallel Working
Backup power，1kva/0.9kw High Frequency UPS Support Maxium 3units for Parallel Working
Backup power，1kva/0.9kw High Frequency UPS Support Maxium 3units for Parallel Working

Shenzhen SORO Electronics Co., Ltd.

Active Member
17 Years
guangdong, shenzhen
Since 1998
Business Type :
Manufacturer
Main Products :

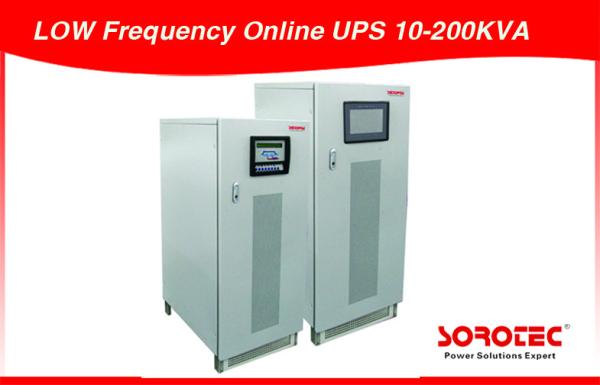

Uninterrupted Power Supply, High Frequency Online UPS, Low Frequency Online UPS
