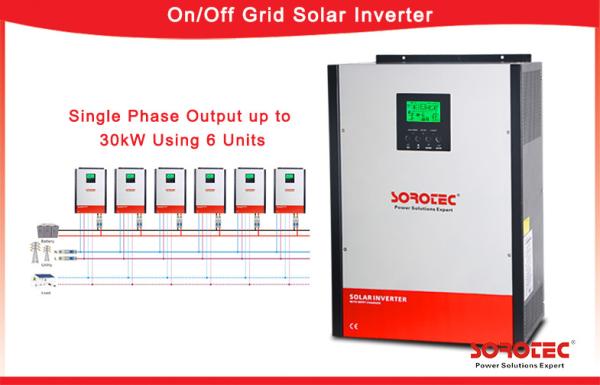

2kW Solar Hybrid Solar Inverter 50/60Hz Pure Sine Wave Inverters Used for Office Appliances
2kW Solar Hybrid Solar Inverter 50/60Hz Pure Sine Wave Inverters Used for Office Appliances
2kW Solar Hybrid Solar Inverter 50/60Hz Pure Sine Wave Inverters Used for Office Appliances
2kW Solar Hybrid Solar Inverter 50/60Hz Pure Sine Wave Inverters Used for Office Appliances
Specifications
Brand Name :
SOROTEC
Model Number :
SSP3119C 1000-5000W
Certification :
CE,ROHS,RSO9000
Place of Origin :
China
MOQ :
10PCS
Price :
200-1000
Payment Terms :
L/C, T/T
Supply Ability :
5000PCS Per Month
Delivery Time :
Within 15-30days after receiving your 30% TT deposit
Packaging Details :
Standard Exported Cartons and Pallets
Rated Output Power :
2000W
Maximum AC Input Current :
30A
Output Voltage Range :
184-264.5VAC
Nominal Output Current :
8.7A
Humidity :
0~90%RH (No condensing)
Operating Temperature :
0 to 50℃
MPPT Range @ Operating Voltage :
30~115VDC
Description

2kW Solar Power Inverter 50/60Hz Pure Sine Wave Inverters Used for Office Appliances

Product Snapshot:

  • Model: 1-5kW
  • Nominal Voltage: 220/230/240VAC
  • Nominal Frequency: 50/60Hz
  • Output Power Factor: >0.99

Key Features:

1.Pure sine wave output
2.Self-consumption and Feed-in to the grid
3.Programmable supply priority for PV, Battery or Grid
4.User-adjustable charging current and voltage
5.Monitoring software for real-time status display and control
6.Parallel operation up to 6 units only for 3K/4K/5K models
7.Programmable multiple operation modes: Grid-tie,off-grid and grid-tie with backup

SSP3119C Wall Mounted Integrated Solar Power Inverter technical specifications:

MODEL 3K-48 4K-48 5K-48
Max.PV Array Power 4000W 4000W 6000W
Rated Output Power 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 2
GRID-TIE OPERATION
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 13A 17A 21.7A
Power Factor >0.99
Efficiency
Maximum Conversion Efficiency (DC/AC) 90%
GRID INPUT
Accepatable Input Voltage Range 90-280VAC or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
BATTERY&CHARGER
Nominal DC Voltage 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 180A
INTERFACE
Parallel Function Yes Yes Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50℃

APPLICATION OF OUR PRODUCT

2kW Solar Hybrid Solar Inverter 50/60Hz Pure Sine Wave Inverters Used for Office Appliances

1. Living house and home building.

2. Office building, factory and warehouse.

3. Shopping mall, stadium and so on.

4. Power station, field operation and some huge engineer construction.

5. Suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip.

FACTORY SHOW

2kW Solar Hybrid Solar Inverter 50/60Hz Pure Sine Wave Inverters Used for Office Appliances

2kW Solar Hybrid Solar Inverter 50/60Hz Pure Sine Wave Inverters Used for Office Appliances

TRADE SHOW

2kW Solar Hybrid Solar Inverter 50/60Hz Pure Sine Wave Inverters Used for Office Appliances

PACKAGING

2kW Solar Hybrid Solar Inverter 50/60Hz Pure Sine Wave Inverters Used for Office Appliances
