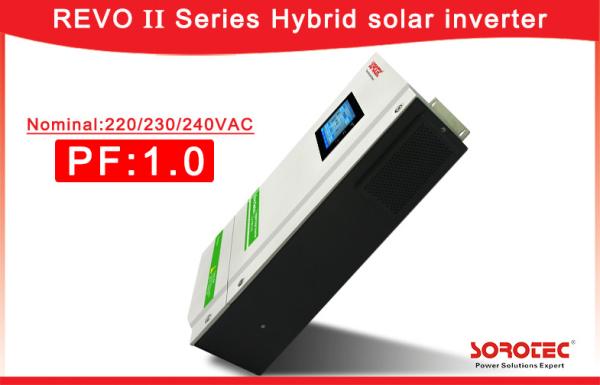

5kW MAX PV Array Power 5000W On / Off Grid Hybrid Inverter Solar Power
5kW MAX PV Array Power 5000W On / Off Grid Hybrid Inverter Solar Power
5kW MAX PV Array Power 5000W On / Off Grid Hybrid Inverter Solar Power
5kW MAX PV Array Power 5000W On / Off Grid Hybrid Inverter Solar Power
Specifications
Brand Name :
SOROTEC
Model Number :
REVO II
Certification :
CE
Place of Origin :
China
MOQ :
10PCS
Payment Terms :
L/C, T/T
Supply Ability :
1000PCS/Month for REVO Series Solar Inverter
Delivery Time :
Within 15-30days after receiving your 30% TT deposit
Packaging Details :
Standard Exported Cartons and Pallets.
MODEL :
3-5.5KW
Max PV Array Power :
4500W
Acceptable Input Voltage Range :
90-280VAC or 170-280 VAC
Humidity :
0~90% RH (No Condensing)
Operating Temperature :
0 to 50 °C
Frequency Range :
50Hz/60Hz
Nominal Output Voltage :
220/230/240VAC
MPPT Range @ Operating Voltage :
120-450VDC
Description

5.5kW MAX PV Array Power 5000W On/Off Grid Solar Hybrid Power Inverters

Product Snapshot:

  • Model: 3-5.5KW
  • Nominal Voltage: 220/230/240VAC
  • Frequency Range: 50Hz/60Hz
  • Wide MPPT Range: 120-450VDC

Key Features:

1.Touch screen display
2.PV and utility power take the load at same time(can setting)
3.Output power factor PF=1.0
4.On&Off Grid with energy storage
5.Energy generated record,load record,history information and fault record
6.Language and time setting
7.Structure with dust filter
8.AC charging and AC output time setting
9.Charging voltage and charging current timing
10.External Wi-Fi device optional
11.Parallel operation up to 12 units
12.Connected with battery optional
13.Wide PV input range 120-450VDC
14.Independent CPU
15.MAX PV Array power 5000W
16.Solar and Utility supply power to the load when solar power is not sufficient to load


Product Show:

5kW MAX PV Array Power 5000W On / Off Grid Hybrid Inverter Solar Power

Wall Mounted Integrated Solar Power Inverter Technical Specification
Built-in MPPT Solar Controller

MODEL REVO II 3K-24 REVO II 3.2K-48 REVO II 5.5K-48
Max PV Array Power 5000W
Rated Output Power 3000W 3200W 5500W
Maximum PV Array Open Circuit Voltage 500VDC
MPPT Range @ Operating Voltage 120-450VDC
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-265VAC
Nominal Output Current 15A
Efficiency Up to 93.5%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range 90-280VAC or 170-280 VAC
Frequency Range 50Hz/60Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
BATTERY & CHARGER
Nominal DC Voltage 24VDC 48VDC
Maximum Solar Charge Current 90A
Maximum AC Charge Current 60A
Maximum Charge Current 90A
Emergency output power
Maximum output power 3000W 3200W 5500W
Automatic Transfer Time <8ms
GENERAL
INTERFACE
Parallel Function Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90% RH (No Condensing)
Operating Temperature 0 to 50 °C
FACTORY SHOW

5kW MAX PV Array Power 5000W On / Off Grid Hybrid Inverter Solar Power

5kW MAX PV Array Power 5000W On / Off Grid Hybrid Inverter Solar Power

COMPANY SHOW

Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
