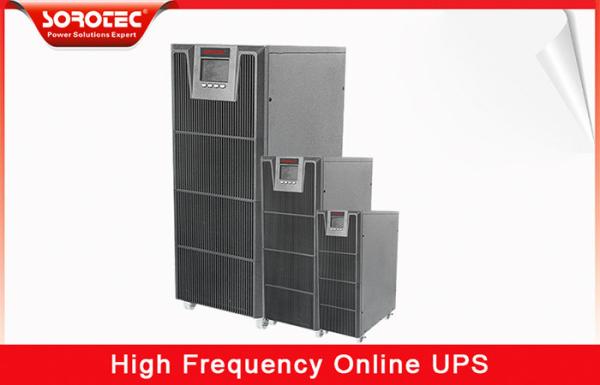

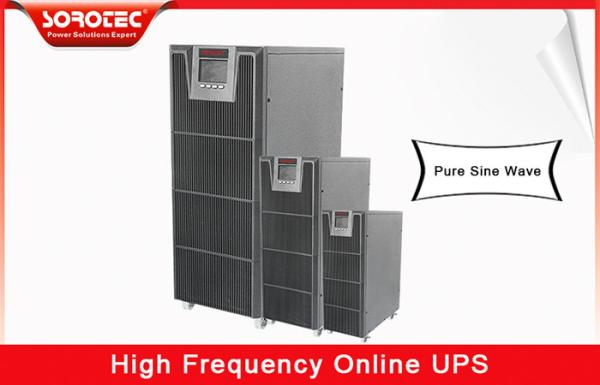

6KVA/5.4W 220VAC High Frequency Online UPS Support Three Phase Input or Single Phase Input

High frequency online ups of HP9116C/HP9316C PLUS series,whose unit capacity from 1KVA to 10KVA for 1Ph in/1Ph out,10KVA to 20KVA for 3Ph in/1Ph out,is a multi-function and high flexible and extendable uninterrupted power supply system special for the key appliances such as data centre,bank station, communication equipment,office,qutomatic equipment,control system.

HP9116C/HP9316C PLUS Descriptions of the product:

The series of UPS with high output power factor 0.9 that mean can take more loads,if you take same load that can get higher reliability.Three phase input mode support three phase PFC,INPUT thdi<5%.The efficiency of the machine up to 93.5% when take 30% loads,ECO mode efficiency up to 98%.Frequency conversion provide more stable output.Battery vltage can be choice depend on loads capacity can meet different needs of clients.Selected trp technology can avoid and isolation system fault then improved system availability.

Application

It can provide reliable power supply for data centre, telecom, industry, medical precision equipment. Often used for personal computers, network, industry, medical, telecom, and security.

HP9116C/HP9316C PLUS Highly Flexible and Extendable

Charge Current Can Be Adjust
1. Standant charge current 4A.

2.. Support more discharge time and more capacity battery for 8A charger Input topology design.

Input Technology Design
3. Support three phase input or single phase input for three phase UPS

4. Super wide input voltage and frequency range suitable for bad power electirc environment

5. Digital control DSP technology and best power component make the system safe and reliable

Battery Type Can Be Choice

6. Battery voltage can be choice depend on capacity , can satisfy different requirement.

7. Convenience to get more back up time and lower system invests.

8. Convenience to save cost of battery.

9. Intelligent battery monitors Charge current can be adjust.

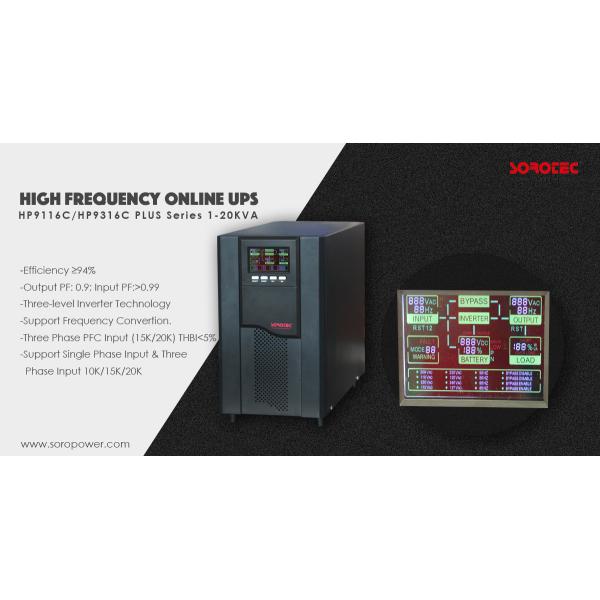

HP9116C PLUS Product Description :

HP9116C PLUS Muilti-function and Friendly Design

Higher Power Factor /Higher Efficiency /Support Three Phase Input

Output Power Factor Up To 0.9

Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.

Input power factors up to 0.99

Three phase input model support three phase PFC , input THDI<5%

Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.

The efficiency up to 94%

Efficiency up to 93.5%when take the 30%load

ECO mode efficiency up to 98%.

Product application areas
Data Center ,Bank Station,Network,Communication Equipment,Office,Automatic Equipment,
Monitor Equipment,Control System,Computer Center,Precision Equipment and so on.
Advanced Parallel Technology
1. Stable parallel control technology make sure current sharing to 1%.

2. Select trip technology can avoid and isolation system fault then improved system availability.

3. Flexible extension capacity and redundance management that can satisfy all kinds of 4. requirements.

5. Support maximum 3 units for parallel working Flexible strategy.

Flexible Strategy
6. On line mode provides higher system availability.

7. High efficiency mode provides more economic operation.

8. Frequency conversion provides more stable output.

HP9116C PLUS Technical Specification:

APPLICATION OF OUR PRODUCT

1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, stadium and so on

4. Power station, field operation and some huge engineer construction

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip

CERTIFICATIONS

PACKAGING

INTRODUCTION OF COMPANY
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system.

The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.

FAQ

1.WHY CHOOSE US ?

QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.

.......................................................................................................................................................................

1.Output wave when take the full load

This product provide pure sine wave output when take the resistance load.

...................................................................................................................................................

2.About THDI

Because this series product is not rectifier function, so can’t make the THDI when use it.

...................................................................................................................................................

3. About service

We are keep the most closely relationship with customers ,In order to satisfy the customer enjoy the most

perfect after- sales service.

...................................................................................................................................................

4.About SORO technology

We have the R&D department that is the core of the SORO. Shoulder heavy responsibilities of research ,developing new product, perfecting the product . We are provide invests 10% of its annual revenue in researchand development ,aims to offer customers in order to suited to their ever-changing environment enabling themto benefit from the last technological developments.

.......................................................................................................................................................................

5. How to calculate the load of working hours requires configuration of the battery size?

We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:
Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)
.......................................................................................................................................................................
