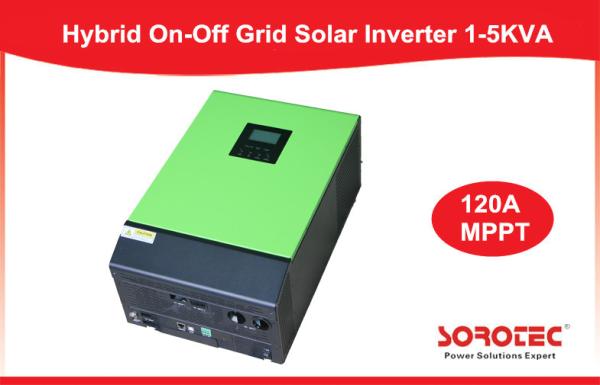

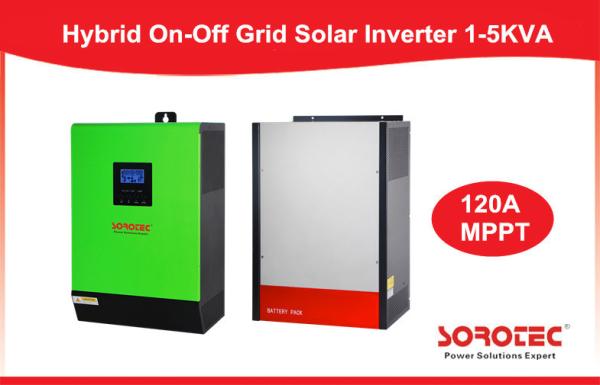

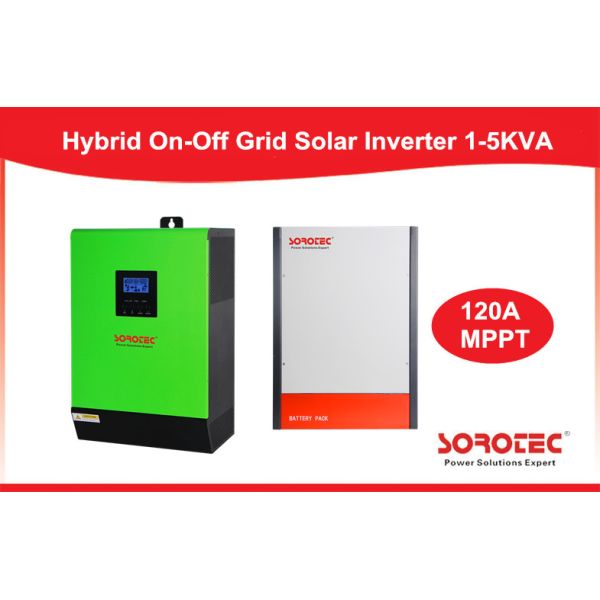

3Kw On/Off Grid High Frequency Solar Inverter 4000W Dc-Ac Pure Sine Wave Inverter
3Kw On/Off Grid High Frequency Solar Inverter 4000W Dc-Ac Pure Sine Wave Inverter
3Kw On/Off Grid High Frequency Solar Inverter 4000W Dc-Ac Pure Sine Wave Inverter
3Kw On/Off Grid High Frequency Solar Inverter 4000W Dc-Ac Pure Sine Wave Inverter
Specifications
Brand Name :
SOROTEC
Model Number :
SSP3119C 1000-5000VA Solar Inverter
Certification :
CE,ROHS,RSO9000
Place of Origin :
China
MOQ :
1PCS Solar Inverter Available
Price :
Negotiable Price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000PCS Solar Inverter Per Month
Delivery Time :
Within 15-30days after receiving your 30% TT deposit for Solar Inverter
Packaging Details :
Standard Exported Cartons and Pallets for Solar Inverter
Product Name :
3Kw On/Off Grid High Frequency Solar Inverter
Power Supply :
3KVA/ 4000W
Color :
Green Color
Parallel Function :
3~5KVA
Application :
SOLAR POWER SYSTEM
Solar Controller :
80Amp to 120Amp MPPT
output waveform :
pure sine wave
Humidity :
0-90%RH (No condengsing)
Description

3Kw On/Off Grid High Frequency Solar Inverter 4000W Dc-Ac Pure Sine Wave Inverter

SSP3119C key features

1.Three phase output using either 3 units(15kw) or max 6 units(30kw)

2. Off-Grid Solar Power Inverter for Self-consumption

3.On-Grid Solar Power Inverter for Feedback to Public Grid

4. Battery Pack for Backp power supply

5. Provide the reliable long backup time power for solar power system and home office

equipments such as:Fridge Air-conditional,TV,DVD,Computer ,Electric fan.etc

Product Descriptions

1. Charging/Discharging Time can be set up as requested

2. Including 80A/120A MPPT Solar Charge Controller

3. Parallel Operation Max up to 6 units for 3K/4K/5K

4 .User-Adjustable Charging Current and Voltage

5. Programmable Supply Priority for PV, Battery or Grid

6. Monitoring software for real-time status display and control

7. Grid-tie,off-grid and grid-tie with backup multiple operation modess

Self-consumption and Feed-back to the grid

Technical Specifications:

MODEL 1K-12 2K-24 3K-48 4K-48 5K-48
Max.PV Array Power 1000W 2000W 4000W 4000W 6000W
Rated Output Power 1000W 2000W 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 15~115VDC 30~115VDC 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 1 1 2
GRID-TIE OPERATION
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 4.3A 8.7A 13A 17.4A 21.7A
Power Factor >0.99
Efficiency
Maximum Conversion Efficiency (DC/AC) 90%
GRID INPUT
Accepatable Input Voltage Range 90-280VAC or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 30A 40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
BATTERY&CHARGER
Nominal DC Voltage 12VDC 24VDC 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 140A 140A 180A
INTERFACE
Parallel Function N/A N/A Yes Yes Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50℃

Fully Protection Function

Low battery voltage,Over load,Output short circuit ,Over- temperature,Restrain surge

interference,Eliminate noise,Protection for thunder striking.etc

Application :

Provide the reliable long backup time power for solar power system and home office

equipments such as:Fridge Air-conditional,TV,DVD,Computer ,Electric fan.etc

3Kw On/Off Grid High Frequency Solar Inverter 4000W Dc-Ac Pure Sine Wave Inverter
