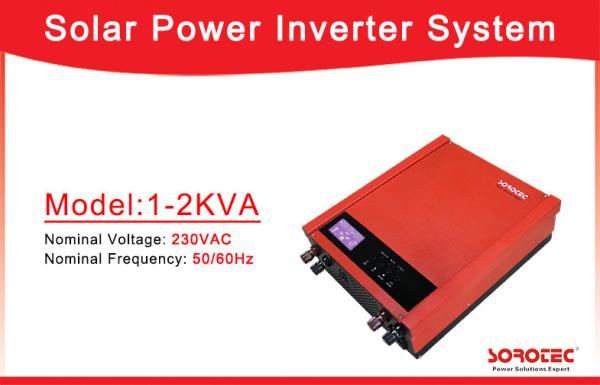

40A PWM Solar Charger Inverter , Off - Grid Modified Power Inverters for Fridge
40A PWM Solar Charger Inverter , Off - Grid Modified Power Inverters for Fridge
40A PWM Solar Charger Inverter , Off - Grid Modified Power Inverters for Fridge
40A PWM Solar Charger Inverter , Off - Grid Modified Power Inverters for Fridge
Specifications
Brand Name :
SOROTEC
Model Number :
SSP3111C Plus 1-2KVA
Certification :
CE,ROHS,ISO9000
Place of Origin :
China
MOQ :
1PCS Inverter ( Sample Are Available)
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Delivery Time :
Within 15-30days after receiving your 30% TT deposit
Packaging Details :
Standard Exported Cartons and Pallets for solar power inverter system
Product Name :
Solar Power Inverters for Home Use
Capacity :
1000-2000VA
Wave Form :
Modified Sine Wave
Power Factor :
0.7
Solar Controller :
PWM
Frequency :
50/60hz
Convertion :
DC /AC Inverters
Application :
Home Use
Color :
Red
Description

40A PWM Solar Charger Inverter ,Off-Grid Modified Sine Wave Solar Power Inverters for Fridge

SOROTEC SSP3111C Series 1-2KVA Solar Power Inverter System / High Frequency Design Modified Sine Wave Output Power Inverters / Supply the reliable long back up time power for the home appliances
and office appliances Solar power systems etc.

SOROTEC SSP3111C Series Provide Fully Protection for low battery voltage,overload,output short circuit and overtemperature restrain surge interference,eliminate noise,protection for thunderstriking,provide the reliable power to the home appliances

Key Features

1.Built-in PWM solar charge controller.

2.Modified sine wave output.

3.High frequency design.

4.Optional input voltage range.

5.Full automatic and silent operation.

6.Automatic charging.

7.Automatic transfer AC-DC

8.Over-load protection.

9.Automatic restart.

10.Three-steps intelligent charging control to recharging.

11.LCD display, audible and visual alarm.

Full Protection:

Protection for low battery voltage,overload,output short circuit and overtemperature restrain surge interference,eliminate noise,provide the reliable power to the household appliances.

Application:

Supply the reliable long back up time power for the household appliances office appliances and solar power systems etc.

Product Descriptions of Off Grid Hybrid Solar Inverter With Charger

Model SSP3111C Plus 1000-2000VA
1000-12 2000-24
Capacity 1000VA/720W 2000VA/1440W
Nominal Voltage 220/230/240VAC
Nominal Frequency 50/60Hz
Input
Voltage Range 170-280VAC±4%(Narrow Range) 90Vac~280VAC±4%(Wide Range)
Frequency Range 50/60Hz
Output
Voltage Regulation 230VAC±10%
Frequency Regulation 50/60Hz±0.1Hz
Wave Form Modified Sine wave
Utility to battery mode 15-20ms typical(narrow range); 40ms max(wide range)
Battery mode to Utility 10ms max
Battery mode efficiency >80%
Line mode efficiency >95% (battery full charged)
Battery
DC Voltage 12V 24V
Overcharge Protection 16V 32V
Charge Current 15A/20A 10A
LCD Display & LED Indicate
Line mode Line mode 1, charge current >3A Green flashing every 2 seconds
Line mode 2,charge current ≦3A Green solid lighting
Off-charge mode Green flashing as cycle:
Battery Mode Yellow lighting
Overload Red flashing every 0.5 second
Fault Red lighting
SOLAR CHARGE
Maximum PV Array Open Circuit Voltage 55VDC
PV Optimal Work Voltage 15V~18Vdc 30-36Vdc
Maximum Charging Current 50A
Maximum Efficiency >96%
Standby Power Consumption <20W
Environment
Temperature 0°C~40°C
Humidity 5%-95% (<40°C, Non-condensing)
Storage Temperature -15°C~55°C
Elevation <1500m
IP Proyection level IP20
PHYSICAL
Dimension,D×W×H (mm) 298.9×250×105
Net Weight (kgs) 2.62 2.76
40A PWM Solar Charger Inverter , Off - Grid Modified Power Inverters for Fridge
