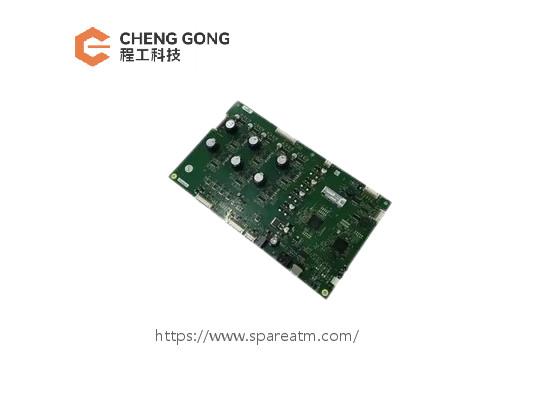

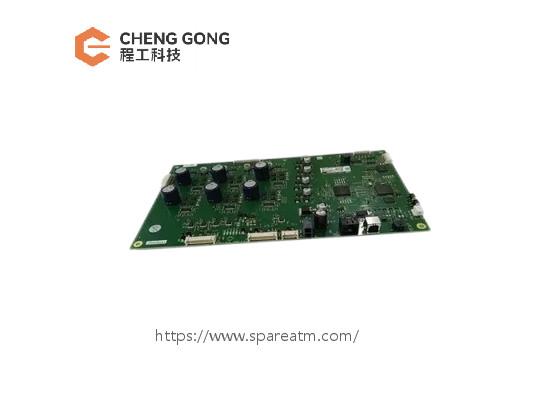

Description of Diebold DN Series 100 DH200 DN470 Lower Controller Board

The Diebold DN Series 100 DH200 DN470 Lower Controller Board DN450 is a component used in Diebold ATMs (Automated Teller Machines) for controlling various functions and operations. Diebold is a well-known manufacturer of ATM and banking equipment.

The Lower Controller Board, specifically the DN450 model, is responsible for managing and controlling the lower section of the ATM, which includes functions such as cash dispensing, deposit handling, and security features. It serves as the central control unit for these operations, coordinating the communication between different components and ensuring the smooth functioning of the ATM.

Key features and functionalities of the Diebold DN Series 100 DH200 DN470 Lower Controller Board DN450 may include:

Cash Management: The board manages the cash dispensing mechanism, ensuring accurate counting and dispensing of banknotes. It can communicate with the cash dispenser unit to handle transactions and monitor cash levels.

Deposit Handling: If the ATM supports deposit functionality, the board controls the deposit module, managing the acceptance, validation, and secure storage of deposited items such as checks or cash.

Security Features: The board incorporates various security measures to protect against unauthorized access and tampering. It may include encryption capabilities, physical security sensors, and communication protocols to ensure data integrity and prevent fraud.

Peripheral Control: The Lower Controller Board interfaces with other peripheral devices within the ATM, such as card readers, receipt printers, and PIN pads. It enables communication and coordination between these components to facilitate ATM transactions.

SPECIFICATION
