Gasoline Diesel Generator Voltage Regulators 5kw-6.5kw For Electric Welder Machine
Gasoline Diesel Generator Voltage Regulators 5kw-6.5kw For Electric Welder Machine
Specifications
Brand Name :
Panmao
Model Number :
QYJ5A
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000+pcs+per day
Delivery Time :
5days
Packaging Details :
standard box and carton or Customised
Product name :
5kw-6.5kw Generator Voltage Regulators
Power :
5kw-6.5kw
Material :
Plastic
Application :
Gasline generator, diesel generator, welder machine
Size :
Standard
Wires :
8 wires or 10wires
Description

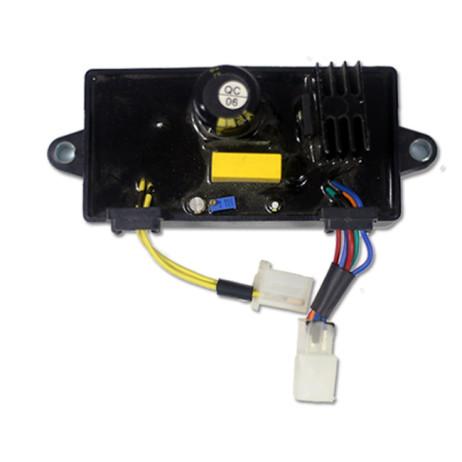

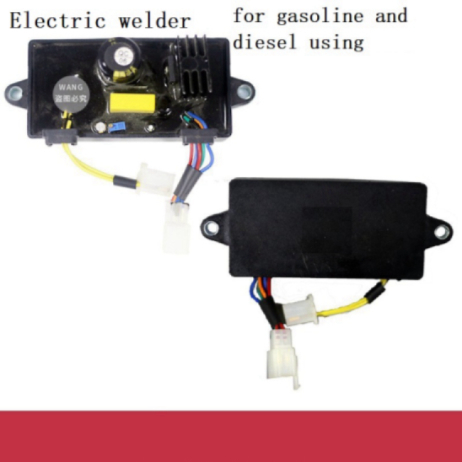

5kw-6.5kw Generator Voltage Regulators For Electric Welder Machine Gasoline and Diesel Generator

Overview

1. Supply petrol generator or diesel generator or welding machine regulator 5kw-6.5kw

2. Applicable brands: Cummins, Kohler, Honda, Yamaha, Robin, Yamaha, Zongshen, Loncin, Champion,Briggs and Stratton,Onan,Predatoretc etc.
3. Packaging Details: 100pcs in 1 carton

4. Single gross weight: 0.30kgs

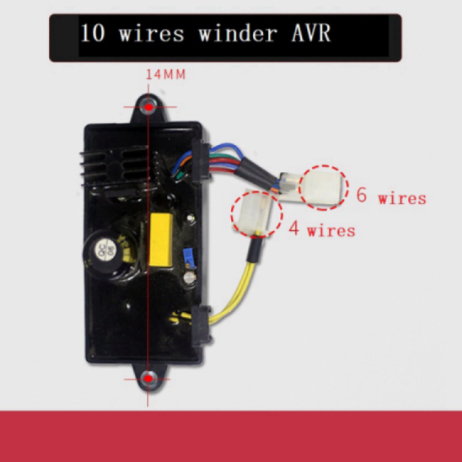

Model Mounting hole position Plug form
5kw-6.5kw single phase 140mm/5.51inch

8 (6+2)
5kw-6.5kw three phase 140mm/5.51inch

10 (6+4)

All the following electrical parameters are measured with a true RMS meter.


1. Voltage: 380±2V (factory set parameters environment 25℃±5℃ for generator voltage regulators )

2. Voltage stability: ±1V
3. Steady-state voltage adjustment rate: ≤2％
4. Starting voltage: ≥1.5V
5. generator hot and cold state output voltage stability: ≤ 2V
6. Output voltage temperature drift:≤2V
7. with load capacity:
With 110% of the load, the regulator can work for a long time,

with the power factor exceeds the rated load to 1.1, the regulator can work for a long time.

Protection function:


1. Generator rotor excitation short circuit protection.
2. Load output short circuit protection function.
3. Short circuit protection between main and auxiliary windings.
4. Sampling winding dropout protection.

Anti-interference ability

Adopting capacitor resistance filter, active filter, isolation technology and other measures,

the generaor voltage regulator has a strong anti-interference ability, so that the generator with a variety of loads,

the regulator can work safely, reliably and stably.
