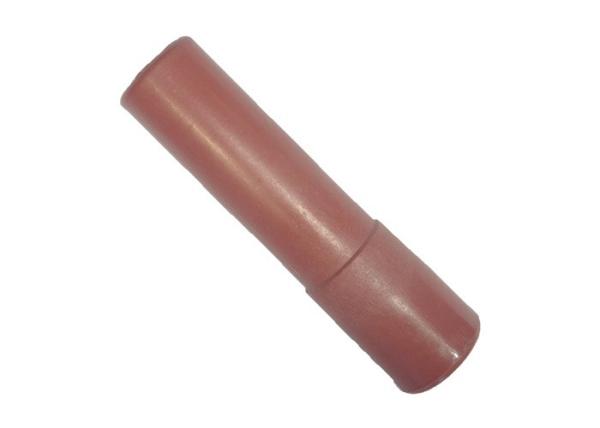

Linking Spark Plug and High Voltage Ignition Wire , Red PBT Resistor , Heat and Weather Resistance

1. Standard of Material

• Material----------------------------------------------------PBT
• Tensile Strength-----------------------------------------ISO527-2:1993
• Elongation at break-------------------------------------ISO527-2:1993
• Flexural Strength----------------------------------------ISO178:2004
• Flexural Modulus----------------------------------------ISO178:2004
• Izod impact strength------------------------------------ISO180:2000
• Dielectric Constant--------------------------------------IEC60250:1969
• Dielectric Strength---------------------------------------IEC60243-1:1998
• Volume Resistivity(10¹¹)-------------------------------IEC60093:1980
• Thermal deformation temperature(1.82Mpa)-------ISO75-2:2004
• Melt flow rate(205℃)------------------------------------ISO1133:2005
• Flame Retardant-----------------------------------------UL94:2006
• Glass Fiber content-------------------------------------ISO3451-1:2008

2. Product dimension:

• Assembly dimension: connecting ignition wire------
• Inner diameter: connecting Spark Plug--------------

3. Product Performance:

• Standard--------------------------------------------------ISO 6856 / ISO 3808
• Resistance-----------------------------------------------5KΩ±20%
• Color------------------------------------------------------Red
• Withstand voltage--------------------------------------≥30KV
• Usage temperature------------------------------------ -20℃-155℃
• Insertion and removal forces-------------------------20N-70N
• Assembly way-------------------------------------------Injection molding

4. Product applications:

• Widely used in electronics, auto parts, and machinery etc.
• This product is used in the ignition system of auto engine

5. Product properties

• Heat and weather resistance
• Acid and alkali resistance
• Outstanding electrical characteristics and insulating property
• Low hydroscopic property
• No obvious pungent smell
• Nontoxic
• No deformation
• No dilatation
• Be used more than 50,000 km or 3 years

6. Competitive advantages:

• Own CNC maching center, electrical discharging machine and other processed equipments
• Be able to produce modes by ourselves, so can design and develop specific products for customers, meet special requirements.
