Withstand Acid and Alkali Spark Plug Connectors TY0014C01 for Boiler / Automotive
Withstand Acid and Alkali Spark Plug Connectors TY0014C01 for Boiler / Automotive
Specifications
Brand Name :
TY
Model Number :
TY0014C01
Certification :
ISO/TS 16949: 2009
Place of Origin :
CHINA
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
200,000 pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Carton size: 490*310*190mm；Single carton volume: 0.029m3；Package quantity: 400Pcs/box； N.W: 16KG；G.W: 17KG
Resistance :
1KΩ±20%
Features :
Withstand high voltage
Standard :
ISO 6856 / ISO 3808
Customers :
JANMOR etc.
Color :
Black and silver
Type :
Assembly parts
Description

Withstand Acid and Alkali , Spark Plug Connector / Plug / Boiler Connector , no Electomagnet Interference

Product Features:

  1. The connector has great heat resistance, cold tolerance, and dielectric properties.
  2. The boot of the connector is made by Silicone rubber, which is odorless.
  3. The shield of the product owns a smooth surface. Logo can be added according to the customer.
  4. The shield Can prevent electromagnetic interference.
  5. The connector has the features of no deformation, acid and alkali resistance, and no dilatation.
  6. Automated assembly process make the connector having stable and conforming dimensions.
  7. Service life of the connector is not less than 50,000 km or 3 years.
  8. The spark plug connector can be designed and developed according to customer’s requirements.

Product Specifications:

Raw material properties

Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking

Product characteristics

Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

127±2mm

Resistance

1KΩ±20%

Assembly dimension

Cable entry diameter

6±0.5mm

Assembly dimension: connecting cable

Withstand Acid and Alkali Spark Plug Connectors TY0014C01 for Boiler / Automotive

Plug entry diameter

11±0.5mm

Assembly dimension: connecting spark plug

Withstand Acid and Alkali Spark Plug Connectors TY0014C01 for Boiler / Automotive

Applications:

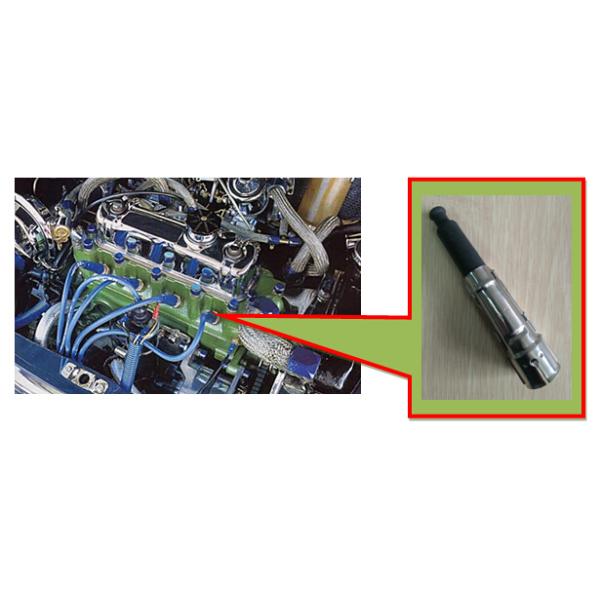

  • The connector is used in the ignition system of auto engine, see picture below:

Withstand Acid and Alkali Spark Plug Connectors TY0014C01 for Boiler / Automotive
