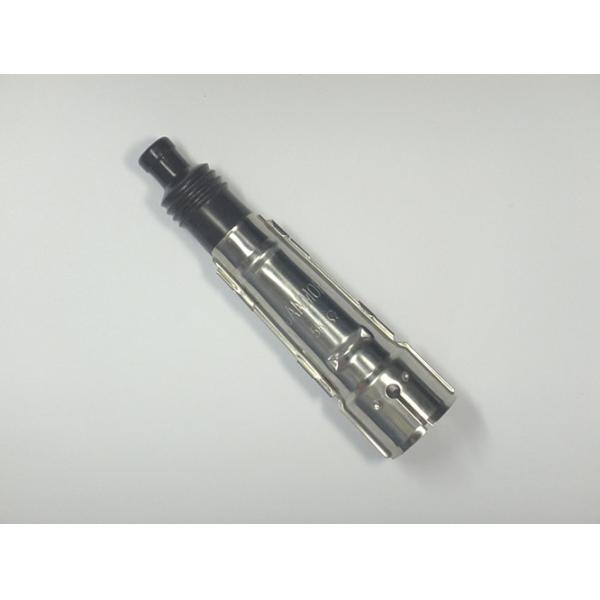

Heat Resistant Spark Plug Connector 13mm Ignition Lead Connectors
Heat Resistant Spark Plug Connector 13mm Ignition Lead Connectors
Specifications
Brand Name :
TY
Model Number :
TY0023C01
Certification :
ISO/TS 16949: 2009
Place of Origin :
CHINA
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
200,000 pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Carton size: 390*315*235mm；Single carton volume: 0.029m3；Package quantity: 500Pcs/box； N.W: 21KG；G.W: 22KG
Name :
Spark Plug Connector
Application :
High voltage ignition system
Resistance :
5KΩ±20%
Overall length :
13mm
Standard :
ISO 6856 / ISO 3808
Customers :
JANMOR
Description

Heat Resistant Spark Plug Connector / Plug / Boiler Connector , Withstand High Voltage

Product Description:

  • The spark plug connector has great heat resistance, cold tolerance, and dielectric properties.
  • The boot of the connector is made by Silicone rubber, which is odorless.
  • The shield of the product owns a smooth surface. Logo can be added according to the customer.
  • The shield Can prevent electromagnetic interference.
  • The spark plug connector has the features of no deformation, acid and alkali resistance, and no dilatation.
  • Automated assembly process make the connector having stable and conforming dimensions.
  • Service life of the connector is not less than 50,000 km or 3 years.
  • The connector can be designed and developed according to customer’s requirements.

Product Specifications:

Raw material properties

Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking

Product characteristics

Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

113±3 mm

Resistance

5KΩ±20%

Assembly dimension

Cable entry diameter

5±0.5mm

Assembly dimension: connecting cable

Heat Resistant Spark Plug Connector 13mm Ignition Lead Connectors

Plug entry diameter

10.5±0.5mm

Assembly dimension: connecting spark plug

Heat Resistant Spark Plug Connector 13mm Ignition Lead Connectors

Applications:

  • The connector is used in the ignition system of auto engine, see picture below:

Heat Resistant Spark Plug Connector 13mm Ignition Lead Connectors
