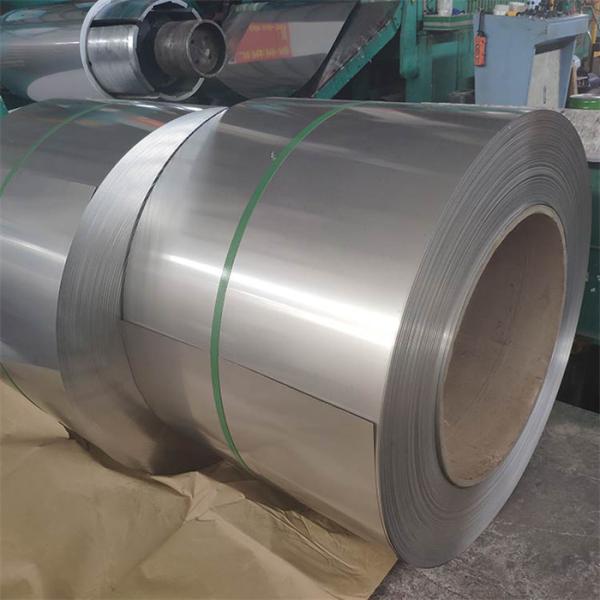

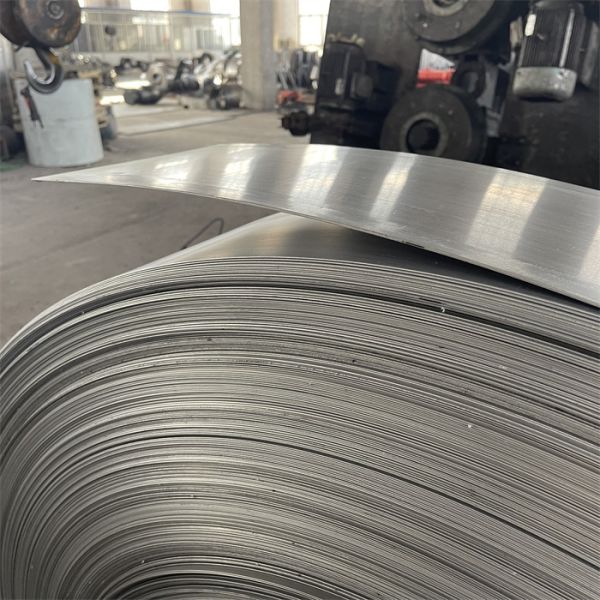

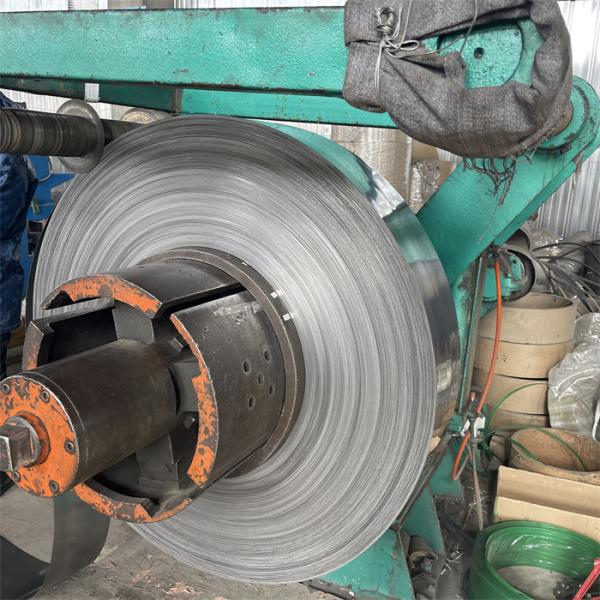

Petrochemical Industry N06600 W.Nr.2.4816 Sheet/Plate Inconel 600 Strip 8.47 G/Cm3 With High Temperature Stability

Product Introduction

Inconel 600 strip is a nickel-chromium-iron-based high-temperature alloy strip with excellent corrosion resistance and high-temperature stability, and is widely used in the petrochemical industry. Its main components include 72% nickel, 14-17% chromium, 6-10% iron, and a small amount of aluminum, titanium, silicon and other elements. This alloy forms a stable oxide film at high temperatures, effectively preventing oxidation and corrosion, and can maintain good mechanical properties at temperatures up to 1000°C or above. Its density is about 8.42-8.47 g/cm³, its melting point is between 1354-1413°C, its thermal conductivity is 14.8 W/(m·K), and its linear expansion coefficient is 13.3 × 10⁻⁶/K. Inconel 600 strip is often used in the manufacture of reactors, heat exchangers, storage tanks and other equipment in petrochemicals to ensure the long-term stable operation of equipment and pipelines. In addition, the alloy has good mechanical properties, with a tensile strength of up to 550 MPa, excellent yield strength and elongation, a hardness between HRC 30-90, and HRB 65-85 after annealing. Its excellent corrosion resistance and high temperature stability make it the preferred material for handling corrosive materials.

Parameter

Specific Applications

1. Reactors and heat exchangers:Inconel 600 Strip is used to manufacture chemical reactors and heat exchangers. It can resist the erosion of corrosive media such as strong acids and strong alkalis, ensuring the stable operation of equipment under high temperature and high pressure environments. For example, Inconel 600 can be used to manufacture equipment that handles strong corrosive media such as nitric acid, phosphoric acid, and chlorides to ensure the long-term stable operation of the equipment.
2. Pipes and valves:Inconel 600 Strip is used to manufacture pipes and valves in petrochemicals. It can effectively resist corrosive media such as chlorides, sulfuric acid, and hydrochloric acid, extending the service life of the equipment.The material performs well in high temperature and corrosive environments, and is particularly suitable for pipeline systems that require long-term stable operation.
3. Tanks and containers:Inconel 600 Strip is used to manufacture tanks and containers. It can resist the erosion of various chemicals and ensure the long-term stable operation of the equipment. For example, Inconel 600 can be used to manufacture tanks for storing and handling corrosive chemicals to ensure the safety and reliability of the equipment.
4. Catalyst Supports:Inconel 600 Strip is used to manufacture catalyst supports, which can remain stable in high temperature and corrosive environments to ensure efficient operation of the catalyst. The high temperature strength and corrosion resistance of this material make it an ideal choice for manufacturing catalyst supports.

Advantages and Characteristics

• Excellent corrosion resistance:Inconel 600 Strip has excellent corrosion resistance and can remain stable in a variety of corrosive media, especially in acidic environments. For example, Inconel 600 can resist the erosion of strong corrosive media such as nitric acid, phosphoric acid, and chlorides, so it is widely used in the chemical industry.
• High temperature stability:Inconel 600 Strip still maintains good mechanical properties and corrosion resistance in high temperature environments and can be used at temperatures up to 1093°C (2000°F). The high nickel content of the material gives it good corrosion resistance, and the presence of chromium enhances its oxidation resistance.
• Good mechanical properties:Inconel 600 Strip has excellent strength, hardness and toughness, with high tensile strength and yield strength. For example, Inconel 600 has a tensile strength of up to 650 MPa, a yield strength of 310 MPa, and an elongation of 30%.
• Anti-oxidation performance:Inconel 600 Strip has good anti-oxidation performance and can work for a long time in a high-temperature oxidizing environment without being easily oxidized and corroded. The high chromium content of the material enhances its anti-oxidation performance in a high-temperature oxidizing atmosphere and can effectively extend the service life of the material.

Summary

Inconel 600 Strip is widely used in reactors, heat exchangers, pipelines, valves, storage tanks, catalyst supports and other equipment in the petrochemical field due to its excellent corrosion resistance, high temperature stability and good mechanical properties, ensuring the long-term stable operation of the equipment in high temperature, high pressure and corrosive environment.

Contact Us

Email:fbwlau@cnrunlai.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service

Related Questions and Answers

Q: What is the chemical composition of Inconel 600 Strip?

A: Inconel 600 Strip is mainly composed of nickel (Ni), chromium (Cr) and iron (Fe), with a nickel content of about 72.0%, a chromium content of 14.0-17.0%, and an iron content of 6.0-10.0%. It also contains a small amount of copper (Cu), manganese (Mn), silicon (Si), carbon (C) and sulfur (S) and other elements.
Q: What are the excellent properties of Inconel 600 Strip?

A: Inconel 600 Strip has good high-temperature corrosion resistance and oxidation resistance, excellent cold and hot processing and welding process performance, and has satisfactory thermal strength and high plasticity below 700℃.
Q: What are the main application areas of Inconel 600 Strip?

A: Inconel 600 Strip is widely used in aerospace, chemical, nuclear energy, power and other fields, such as aircraft engine components, chemical processing equipment, nuclear reactor components, boilers and steam generators, etc.
Q: What is the price of Inconel 600 Strip?

A: The price of Inconel 600 Strip varies according to specifications, thickness, width and suppliers, and is generally higher because it is a high-performance nickel-based alloy.
