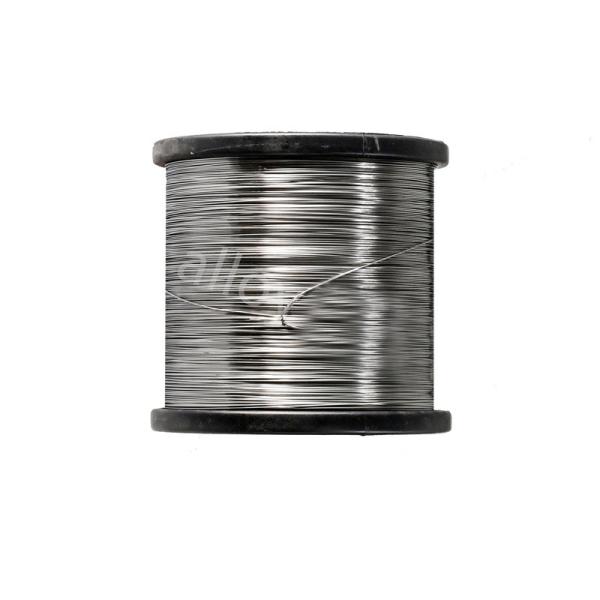

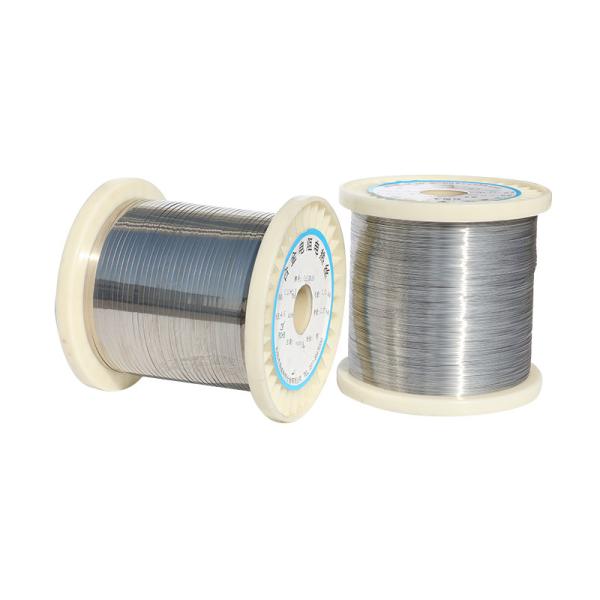

CuNi8 NC012 CuNi Alloy Electric Heating Wire With Low Resistivity 0.49 μΩ·Cm

Product Introduction

CuNi8 wire (NC012) is a copper-nickel resistance alloy wire, mainly composed of copper and 8% nickel. It has a low resistivity of about 0.49 μΩ·cm and can work stably at temperatures up to 200°C. The tensile strength of CuNi8 wire is usually around 270 MPa, the yield strength is about 110 MPa, and the elongation remains above 25%, showing good mechanical properties and plasticity. In addition, CuNi8 wire also has good processing properties, is easy to draw into wire, and its mechanical properties can be optimized by appropriate annealing treatment. In terms of application, CuNi8 wire is widely used in the electronic and electrical fields, such as manufacturing resistors, potentiometers, resistor networks, terminals, low-resistance resistors, heating wires and resistance wires. Its excellent corrosion resistance and oxidation resistance make it also have certain applications in marine engineering and chemical industries, such as contact materials in submarine cables and ship electrical systems. These characteristics of CuNi8 wire make it an ideal choice for applications such as high-precision resistor elements and sensors.

Size dimension range:

Wire: 0.01-10mm

Ribbons: 0.05*0.2-2.0*6.0mm

Strip: 0.05*5.0-5.0*250mm

NiCr series: Cr10Ni90,Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30

Parameter

Specific Applications

1. Resistor elements: CuNi8 alloy is widely used to manufacture high-precision resistors, potentiometers, and resistor networks. Its low resistivity and stable resistance characteristics make it perform well in these applications.
2. Low-voltage electrical appliances: It is often used in low-voltage electrical products such as low-voltage circuit breakers and thermal overload relays, and is a key material in these products.
3. Current sensors and resistance temperature detectors: Due to its low temperature coefficient and high resistance stability, CuNi8 alloy is widely used in these high-precision measurement devices.
4. Heating cables: The low resistivity of CuNi8 alloy makes it suitable for low-temperature applications, such as heating cables.
5. High temperature and high pressure environment: In the harsh environment of high temperature and high pressure, CuNi8 alloy can maintain its mechanical properties and is widely used in important components such as pipelines, containers, and sensors.

Advantages and Characteristics

• Excellent anti-oxidation and corrosion resistance: CuNi8 alloy performs well in the atmosphere, seawater, sulfur-containing gas and other environments, can effectively resist corrosion and oxidation, and extend the service life of the material.
• High tensile strength: The tensile strength is usually above 270 MPa, and the elongation is maintained above 25%, indicating that the alloy has a certain plasticity and can produce a certain deformation under stress, and is not prone to brittle fracture.
• Medium hardness: The hardness value is usually higher than that of pure copper alloy, showing good wear resistance and durability.
• Stable high temperature performance: The heat resistance limit of CuNi8 alloy is as high as 250℃ or more. Even at extremely high temperatures, it can maintain the stability of its resistance and is almost unaffected by temperature fluctuations.

Contact Us

Email:fbwlau@cnrunlai.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service

Support and Services:

Our Nichrome Alloy product comes with technical support and services to ensure optimal performance and customer satisfaction:

• Expert consultation on product selection and application
• Technical assistance for installation and maintenance
• Product testing and analysis for quality control
• Customized solutions for unique customer needs
• Training and education on product use and safety

We are committed to providing our customers with the highest level of support and service for our Nichrome Alloy product.

Packing and Shipping:

Product Packaging:

• The Nichrome Alloy product will be packaged securely in a durable cardboard box to ensure safe transport.
• The product will be wrapped in protective bubble wrap to prevent any damage during shipping.
• A label with the product name and details will be placed on the box for easy identification.

Shipping:

• The product will be shipped via a reputable courier service within 2 business days of receiving the order.
• Customers will receive a tracking number once the product has been shipped.
• Please allow 5-7 business days for delivery.
• If there are any issues with the product or shipping, please contact our customer service team for assistance.

Related Questions and Answers

Q: What are the characteristics of CuNi8 wire?
A: CuNi8 wire has stable resistivity, excellent corrosion resistance and good mechanical strength. The resistivity at room temperature is about 0.49 μΩ·cm and the secant modulus is about 120 GPa, showing slightly higher rigidity than pure copper.

Q: Can CuNi8 wire be customized?
A: CuNi8 wire supports non-standard customization and can be adjusted according to the special needs of customers to meet the diversified needs of modern industry.

Q: How does CuNi8 wire perform compared with other materials?
A: Compared with pure copper, CuNi8 wire has a higher resistivity, but is much lower than other high-resistance alloys. It has good resistance stability and mechanical properties and is suitable for electrical components that require a certain resistance.

Q: What are the application areas of CuNi8 wire?
A: CuNi8 wire is widely used in low-voltage electrical products such as precision resistors, sensors, temperature compensation devices, low-temperature heating devices, low-voltage circuit breakers, and thermal overload relays.
