Ni36CrTiAl Elastic Alloy Weak Magnetism High Elasticity Electronic
Ni36CrTiAl Elastic Alloy Weak Magnetism High Elasticity Electronic
Specifications
Brand Name :
liangru
Model Number :
Alloy 3J01
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
200KG
Price :
To negotiate
Payment Terms :
T/T, L/C
Supply Ability :
50~80 TONS per MONTH
Delivery Time :
45~60days
Packaging Details :
Wooden Box, size as per guests' request
Features :
High Elasticity
Shape :
Wire,Strip,Rod,Tube,Plate
Alloy Type :
Elastic Alloy
Raw Materials :
NI34.5-36.5%,CR11.5-13.0%
Executive Standard :
GOST(YB/T5256-2001)
Delivery Status :
Cold Rolling
Application :
Mechanical, Electronic, Medical And Etc Fields
Size :
Negotiable
Description

Product Description and Application

Ni36CrTiAl is also known as "KN702", "36HXT", "3J01"

Ni36CrTiAl alloy is an Fe-Ni-Cr alloy with high elasticity, corrosion resistance and weak magnetism. After solid solution treatment, it has good plasticity, low hardness and easy process and shape. High mechanical and elastic properties can be obtained after solid solution or cold strain aging treatment. It has been widely used in mechanical, electronic, medical and etc fields, which has provided strong support and promotion for the development of these fields.

Process Performance and Requirements

  • Product Fusion Process

Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)

  • Chemical Composition

Grade Chemical Composition(Mass Fraction)/%
C Mn Si P S Ni Cr Ti Al Fe
3J01 ≤0.05 ≤1.00 ≤0.80 ≤0.020 ≤0.020 34.5~36.5 11.5~13.00 2.70~3.20 1.00~1.80 Rem

  • Product Mechanical Property

Grade Shape Delivery State

Thickness or Diameter

mm

Tensile Strength Rm

N/ mm²

Elongation A

%
3J01 Strip Soften 0.20~0.50 ≤980 ≥20
Wire Cold Draw 0.20~3.00 ≥980 ---
The alloy material mechanical properties of other sizes and delivery state shall be negotiated by both parties.

Grade Shape Delivery State

Thickness or

Diameter mm

Tensile Strength Rm

N/ mm²

Elongation A

%
3J01 Strip Cold Rolling 0.20~2.50 1372 5
Soften 0.20~1.00 1176 8
Wire Cold Draw 0.50~5.00 1470 5
Rod Cold Draw 3.0~18.00 1372 5
Circular,Slab

Hot Rolling

Hot Forging

 6.0~25.0 1176 10
＞25.0~60.0 1030 14
＞60.0 800 14

Grade Delivery State Thickness mm

Yield Strength N/mm²

Not less than
3J01 Cold Rolling 0.50~2.50 980
Soften 0.50~1.00 735

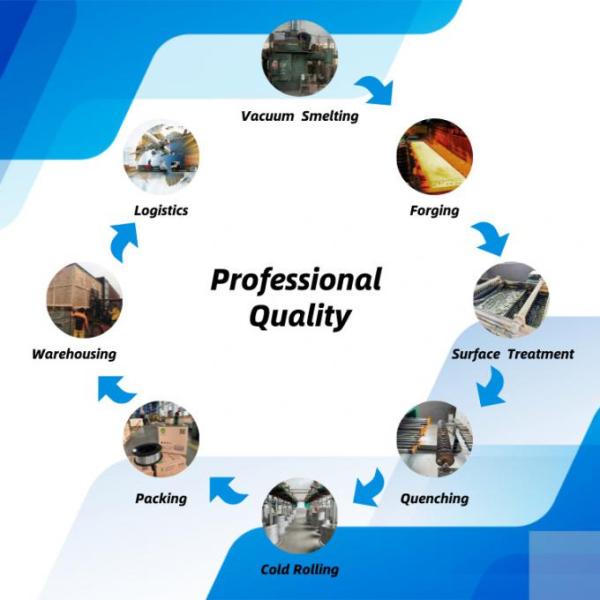

  • Productive Process

Ni36CrTiAl Elastic Alloy Weak Magnetism High Elasticity Electronic

  • Professional Customization

Cold-drawn Wire ¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire ¢5.5~¢20mm(Delivery in rolls)
Strip thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)
Smooth Forged Rod on a Lathe ¢60~350mm,L800-2500mm
Hot-rolled Burnishing ¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing ¢2.5~18mm,L1000-8000mm
Seamless Tube ¢1~275mm,wall thickness 0.2~30,L1000-8000mm

Ni36CrTiAl Elastic Alloy Weak Magnetism High Elasticity Electronic
