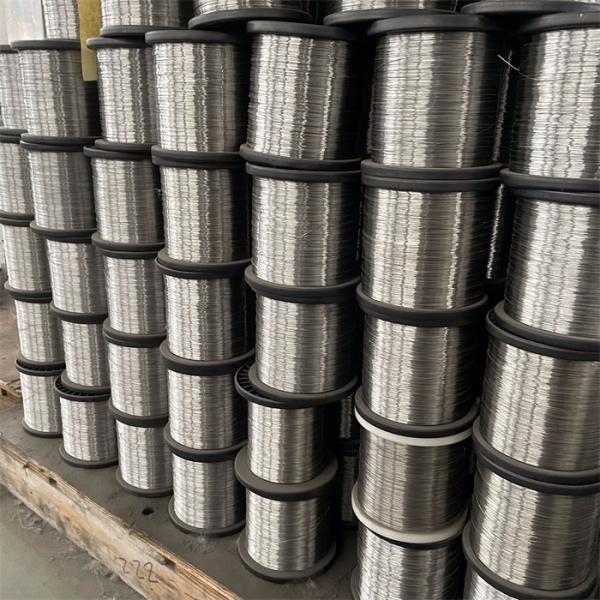

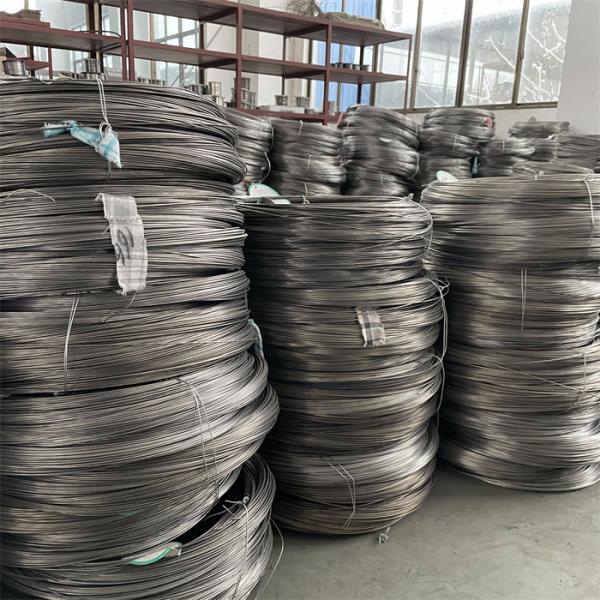

UNS N04400 Standard Nickel Based Alloy Monel 400 Wire 520 MPa Tensile Strength

Product Introduction

Monel 400 wire is a high-performance nickel copper based alloy wire, mainly composed of about 63% nickel (Ni) and 31.5% copper (Cu), with small amounts of iron (Fe), manganese (Mn), silicon (Si), carbon (C) and other elements. This unique chemical composition endows Monel 400 wire with excellent corrosion resistance, especially in saltwater and various acidic environments.

Monel 400 wire has excellent mechanical properties, including high strength and good toughness, making it suitable for high-strength loads and extreme low-temperature environments. Its low magnetic permeability makes it suitable for environments that require non-magnetic properties, such as marine equipment and aviation. Monel 400 wire is widely used in the fields of petrochemicals, marine engineering, nuclear industry, etc., for manufacturing subsea pipelines, oil well production pipes, seawater treatment equipment, etc.

Parameter

Specific Applications

Monel 400 Wire, as a high-performance nickel based alloy, has excellent corrosion resistance and mechanical properties, and is widely used in the following major industrial fields:

1. oceanographic engineering:Due to its excellent resistance to seawater corrosion, Monel 400 is widely used in the manufacturing of marine platforms, ship structures, subsea pipelines, pump shafts, propeller shafts, seawater valves, and ship components.
2. Chemical equipment:This alloy can resist corrosion from various chemical media, and is therefore commonly used in the manufacture of chemical equipment such as chemical reactors, heat exchangers, storage tanks, distillation towers, and pipeline systems.
3. Oil and Natural Gas:The high strength and corrosion resistance of Monel 400 make it suitable for equipment working in high-pressure and high-temperature environments, such as valves, pipelines, oil well tools, and downhole equipment.
4. Aerospace:Due to its excellent mechanical properties and heat resistance, Monel 400 is used in the manufacturing of aviation engine components, aircraft frames, landing gear, and fasteners.
5. Nuclear industry:In the nuclear industry, Monel 400 is used to manufacture fuel processing equipment and other highly corrosion-resistant critical components.

Advantages and Characteristics

• Corrosion resistance:Monel 400 has extremely strong corrosion resistance, especially in strong acid environments such as seawater, hydrofluoric acid, sulfuric acid, hydrochloric acid, phosphoric acid, etc.
• Mechanical properties:Monel 400 has high tensile strength (550-700 MPa), good ductility (elongation of 20-35%), and toughness. Even at sub zero temperatures, its impact strength not only does not decrease, but also increases, demonstrating excellent low-temperature toughness.
• Heat resistance:Monel 400 can maintain its strength and oxidation resistance at temperatures up to 1000 ° C, making it suitable for high-temperature applications.
• Processing performance:Monel 400 has excellent cold forming properties and can be processed through common processing techniques such as forging, rolling, bending, etc.
• Welding performance:Monel 400 has good welding performance, with low sensitivity to hot cracks during the welding process, and is less prone to defects such as cracks and holes after welding.
• Low magnetism:The low magnetic permeability of Monel 400 makes it suitable for environments that require non-magnetic properties, such as marine equipment and aviation, effectively reducing electromagnetic interference from the equipment.

Contact Us

Email:fbwlau@cnrunlai.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service

Related Questions and Answers

Q: What are the main applications of Monel 400 Wire in?
Answer: Monel 400 Wire is widely used in marine engineering, chemical equipment, oil and gas industry, aviation industry, etc.
Q: What is the market price for Monel 400 Wire?
Answer: The price of Monel 400 Wire varies depending on specifications and market supply and demand. It is recommended to consult a professional supplier for the latest quotation.
Q: Where can I find professional discussions about Monel 400 Wire?
Answer: Discussions about Monel 400 Wire can be found in professional material science forums and industry exhibitions.
Q: What is the weldability of Monel 400 Wire?
Answer: Monel 400 Wire can be connected through various welding processes, such as shielded metal arc welding (SMAW), gas tungsten arc welding (GTAW), and gas metal arc welding (GMAW).
Q: What is the heat dissipation of Monel 400 Wire?
Answer: Monel 400 Wire can achieve the required strength and ductility through annealing or stress relief treatment.
