Led Light Gate Access Control Systems Electronic Barrier Gates With Blushless Motor
Led Light Gate Access Control Systems Electronic Barrier Gates With Blushless Motor
Specifications
Brand Name :
DOOR
Model Number :
DRTD6909X
Certification :
ISO,CE,RoHS
Place of Origin :
shenzhen China
MOQ :
2 sets
Price :
negotiable
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
2500 sets per month
Delivery Time :
5-7 working days
Packaging Details :
wooden carton
Driving Motor :
DC brushless motor
Size :
1600mm * 280mm *980mm
Communication :
RS485
Application :
fare collection,ticket station,Office
Product name :
304 Full Stainless Steel Brushed Access Control Turnstile
Material :
304 Stainless Steel
Power supply :
AC220V/110V
Passage width :
550mm
Description

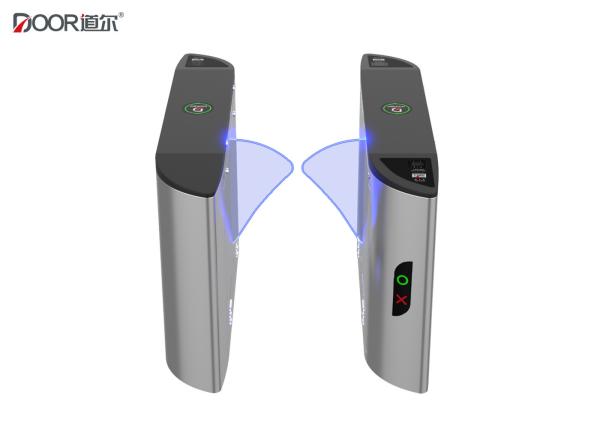

LED Light Gate Access Control Systems Electronic Barrier Gates with Blushless Motor

Product Description:

  1. The Flap Barrier is the popular system that provide fast access clearance with minimum supervise observation.
  2. The blockage is provided by two acrylic wings. The lanes can be configured for entry, exit or bi-directional access. It is widely used in areas such as subway, immigration checkpoint, airport, factory, etc.
  3. Each lane is fitted with safety beams to ensure proper access clearing. Options to cater for children and wheelchair users are available.
  4. Our modern motor mechanism will disengage the arm when it is obstructed from opening or closing, providing an additional safety for pedestrians.

Product Parameter:

Structure Parameter
Material SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm
Swing gate material 12mm thickness PC
Channel Width ≤550mm
Technical Parameter
Passing Speed 30-35 personal/min
Opening Speed Adjustable <1S
Working Temperature -25℃-+70℃
Mean Cycles Between Failure 5 million times
IP Rating IP24(if used outdoor, recommend to build a canopy)
Electric Parameter
Voltage AC110/AC220 50-60Hz
Power Single Core 35w, dual core 60W
Driving Motor DC brushless motor
Method of position Motor drive
Communication interface RS485
Input / Output signal dry contact signal input, 6-pair infrared sensor

Product Key Features:

  • The lanes can be configured for entry, exit or bi-directional access.
  • The acrylic will retract upon receiving valid signal and close immediately after the pedestrian crosses.
  • The side hinge door provides an easy avenue for maintenance .
  • Customization to include card reader, biometric finger print, ticket collection etc., is possible.
  • Each lanes comes with Infrared (IR) beam sensor to ensure safe access. It can be extended to detect 3 levels of heights, including height of children, which are lower.
  • The motor will disengage when an object tires to block the flap from closing, providing an additional safety mechanism for the pedestrian.

Dimension:

Application:

Widely used in commercial and management office buildings, ministries, government service halls, public buildings, banks and financial institutions, airports, hotels, clubs, high-end residential areas, schools, colleges and universities, industrial facilities, etc.
