Speed Gate Access Control Entrance/Exit Secuirty Slim Door 10 mllion Times Life

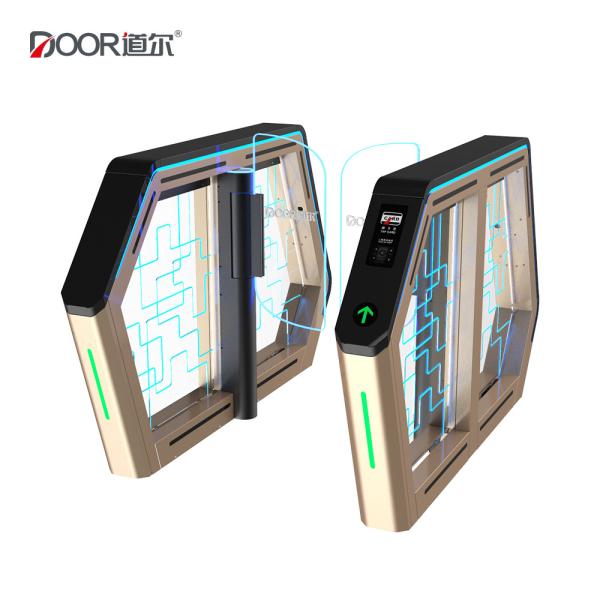

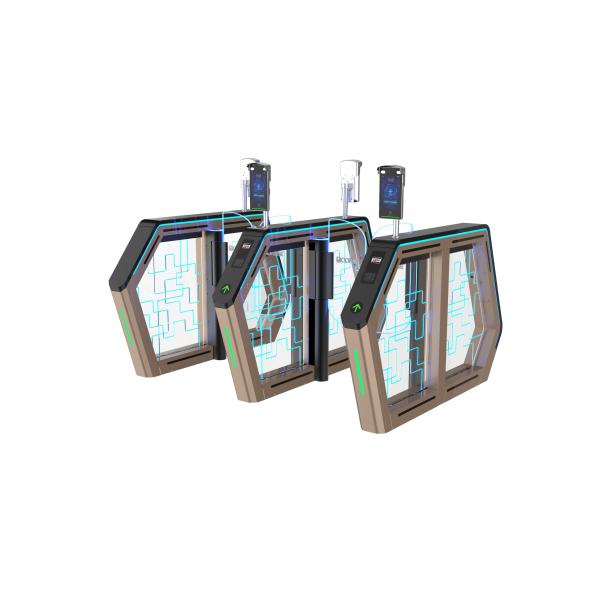

Access Control Speed Gate Descritpion

DR.TD.6627 is an intelligent channel management equipment designed, developed and produced by Shenzhen Door Intelligent Control Technology Co., Ltd. It
integrates the advantages of swing door wings and wide aisles, and has become a channel product with a higher security level with strict anti-trailing detectors
(installing multiple pairs of infrared) tracking technology, and truly realizes intelligent management of entrances and exits. The equipment can be widely used in
commercial and management office buildings, ministries, government service halls,public buildings, banks and financial institutions, airports, hotels, high-end
communities, schools, colleges and universities, industrial facilities and other places.

The running direction of this speed gate is forward and backward, and the running process is within the line of sight of the human body, which is safer. It is a
pedestrian passage control device with a high safety protection level, providing high safety control of passage in two directions, effectively Prevent illegal entry, trailing
entry, etc. At the same time, in order to meet the requirements of fire exits, a dedicated fire button interface is provided in this system, so that the gate can be
automatically opened in an emergency and personnel can be evacuated.

Multiple Features And functions

1 It adopts red and green colors to form an overall light effect with the side lights of the chassis, and cooperates with the chassis to achieve traffic
indication and channel indication control, and the prompt information is direct and concise;
2 The side light of the chassis is linked to the traffic indication and alarm,which can be used as a light reminder to prevent collisions and improve the
appearance level;
3 It has a strict anti-tailing alarm function and anti-reverse illegal traffic function to ensure the legitimacy and effectiveness of the passage;
4 Sound and light alarms for illegal gate breaking, reverse entry, etc.;
5 The channel adopts 8 pairs of infrared anti-radiation type anti-pinch protection, fire alarm linkage protection, to ensure the safety of personnel and
emergency safety;
6 Adopt triple pedestrian protection: infrared sensor anti-pinch; traffic logic anti-pinch; return when obstructed;
7 It has a normally closed mode and a normally open peak traffic mode, with a variety of working modes such as freedom, control, and prohibition;
8 Memory opening, delay closing and overtime closing functions; the number of passers-by counting function;
9 The channel can realize bidirectional passage, the gate can swing in both directions, and the stroke is less than or equal to 180°;
10 The chassis panel provides a card swiping and QR code installation area,and a face recognition installation position is reserved;
11 Power-off free passage, in line with fire protection requirements;provide power-on self-check function;
12 The characteristic of this gate is fast passing speed, opening/closing speed can reach 0.5 second;
13 Driven by a servo motor and planetary gear reducer, the operation is stable and reliable, low noise, and long life.

Specification Of Speed Turnstile Gate

Application:

Widely used in commercial and management office buildings, ministries, government service halls, public buildings,

banks and financial institutions, airports, hotels, clubs, high-end residential areas, schools, colleges and universities,

industrial facilities, etc.

FAQ

Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with

screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have

more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q7:How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days.

The customized products need 15-20 working days.
Q8: How many years of warranty?
A: We provide 2 years warranty for our products.
