Electronic Security Tripod Turnstile Gate With Access Control System For Train Station
Electronic Security Tripod Turnstile Gate With Access Control System For Train Station
Electronic Security Tripod Turnstile Gate With Access Control System For Train Station
Electronic Security Tripod Turnstile Gate With Access Control System For Train Station
Electronic Security Tripod Turnstile Gate With Access Control System For Train Station
Electronic Security Tripod Turnstile Gate With Access Control System For Train Station
Specifications
Brand Name :
SHENZHEN DOOR
Model Number :
WD.TD.6380X-EN
Certification :
CE / IS09001
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T, Western Union,
Supply Ability :
2500 sets per month
Delivery Time :
5-7 Working Days for Tripod Turnstile Gate Sample
Packaging Details :
Wood Carton
Name :
Tripod Turnstile Gate
Material :
304# Stainless Steel
Size :
L1200×W280×H1000mm
Pass Width :
550mm
Passing Speed :
20 Passenger/min
Working Temperature :
-15℃-60℃
Voltage :
AC110V/AC220V±10% 50-60H
Communication :
RS232
Access Means :
IC Card; Face Recognition
Description

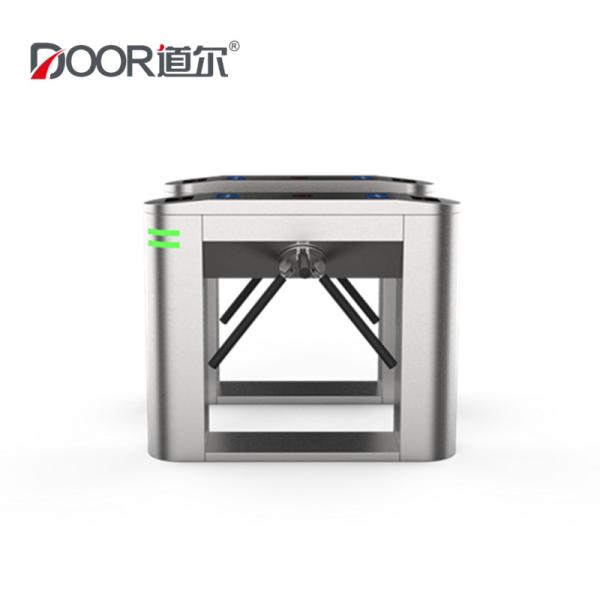

Electronic Security Tripod Turnstile Gate with Access Control System for Train Station

Tripod turnstile is a very efficient security turnstile gate, it is specially used for the opening and closing of personnel exits and entrances, such as canteens, hotels, office buildings, museums, stadiums, clubs, subways, stations, terminals, tourist attractions and other places.
WD.TD.6380X-EN three-stick turning machine has an automatic adjustment hydraulic shock absorber. When tripod turnstile / tripod barrier gate is used, the sound is small, no impact, and the brake lever automatically decelerates back. if you have interested in our turnstile gates please feel free to learn more about tripod barriers for access control
Features:

  • Proper modifications can be made according to your exact requirements.

  • Material: 304 / 316 grade stainless steel. thickness : 1.2mm.

  • Lane width may be changed accordingly. 600mm

  • Surface treatment of the cabinet: brushing/polishing / frosted finish / electroplating / baking finish.

  • System Integration:

    Can be integrated with access control system, time attendance system, visitor system etc.

  • Built-in reader appointed by customers(optional).

  • Integrate with face recognition system, fingerprint identification system, ID/IC card recognition system, passport identification system, QR code system, etc(Optional)

  • Direction Indicator:

    The installation position of direction indicator can be adjusted.

    The pattern of direction indicator can be customized.

  • Additional Functions:

    Built-in or external counter

    Equipped with TCP / IP communication

    Audible and visual alarm function

Parameters:
Model No.
WD.TD.6380X-EN
Material
304 Stainless Steel
Thickness
1mm/1.2mm
Size(mm)
1200x280x1000m
Suitable
Indoor/Outdoor
Pass rate
35 person /min
Pass width
≤550mm
input
dry contact
Optional
Access control

Electronic Security Tripod Turnstile Gate With Access Control System For Train Station

FAQ:

Q1: Does the equipement include control board?

A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.

Q2: Can we connect your access control system with our system?

A: Yes, we provide SDK and Software development service with connection port.

Q3: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.

Q4: What is your company’s strength?

A: We are the top 3 manufacturer in turnstile field in China. And we are listed company . We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.

Q5. How about the lead time?

Regular products need 5-7 working days. The customized products need 15-20 working days.
