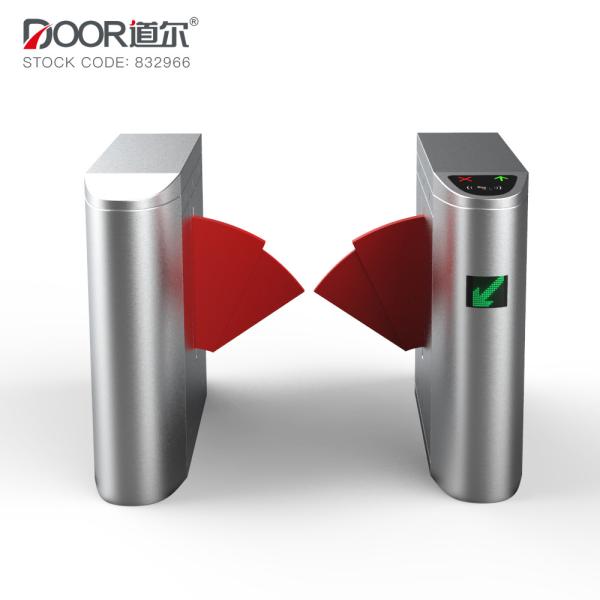

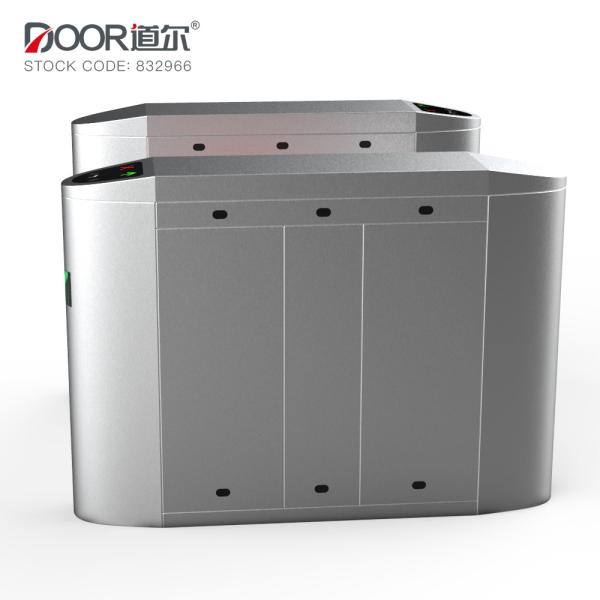

Automatic Ic Card Reader Access Flap Barrier Gate For Gym Club
Automatic Ic Card Reader Access Flap Barrier Gate For Gym Club
Automatic Ic Card Reader Access Flap Barrier Gate For Gym Club
Automatic Ic Card Reader Access Flap Barrier Gate For Gym Club
Automatic Ic Card Reader Access Flap Barrier Gate For Gym Club
Automatic Ic Card Reader Access Flap Barrier Gate For Gym Club
Specifications
Brand Name :
DOOR
Model Number :
WD.TD.6980X
Certification :
ISO,CE,RoHS
Place of Origin :
shenzhen China
MOQ :
2 sets
Price :
negotiable
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
2500 sets per month
Delivery Time :
5-7 working days
Packaging Details :
wooden carton
Product name :
Flap barrier
Dimension :
1400*300*1000 mm
Communication interface :
RS485
Material :
304 Stainless Steel
Working voltage :
24V/30W
Direction :
single/bi-directional
Warranty :
1 year
Color :
Stainless Steel Color
Description

Automatic Ic Card Reader Access Flap Barrier Gate For Gym Club

Features:

1) Powerful on-line intelligent control mode, facilitating you:
A) To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.
B) To set up operation mode for passage entry and exit.
C) To read card with multiple times, the special function meeting the application requirements of a particular site.
D) To set up the card reading with or without memory.
E) To select a reasonable normally open or close mode, to divert the flow of passengers effectively.
F) Setting function humanized for reset of over time passing.
2) The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.
3) The processing mode in emergency or in special conditions.
4) Having standard input/output port, facilitating the integration of the system and the other equipment, to realize far end control management.
5) Super combination capability, with the combined application of products of different passage types and series, not affecting the system performance.
6) Strong system expending capability, available to add new product at any time
7) Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection
8) Resetting automatically. after reading card ,if the passer didn't pass at set time, the system will cancel pass permission automatically, the administrator can set the passing time by himself.
9) Only one person can pass with one card, anti-tag after, anti-hit against

Specifications:

1) Power supply voltage: AC220±10% V, 50HZ
2) Drive motor: DC brushless motor 24V/40W
3) Working temperature: -15℃-60℃
4) Relative humidity: ≤90%, no condensation
5) Input interface: 12V level signal or 12V pulse signal with pulse width> 100ms, driving current> 10mA
6) Communication interface: RS485 electrical standard,
7) Communication distance: ≤1200 meters
8) Maximum channel width: 900mm
9) Gate opening and closing time: 1.5 seconds
10) The whole machine adopts 304 stainless steel, thickness is 1.2mm
11) 5 pairs of infrared
