MST Phosphor Copper / Brass Single Turn Overlap Wave Spring With Gold Plating / Powder Coated

Description:

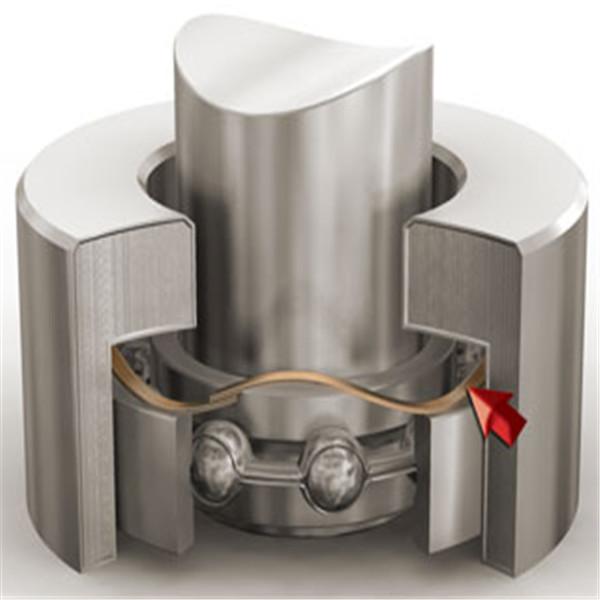

Wave Springs are pre-stacked in series, decreasing the spring rate proportionally to the number of turns. Uses are typically applications requiring low-medium spring rates and large deflections with low-medium forces.

Among the major advantages, this design eliminates the need to keep the wave crests aligned. The need to use a key locating device, or to insert a shim between individual springs is not necessary. Because the spring is integrally formed, the wave peaks hold their configuration.

As a replacement for helical compression springs, Wave springs can develop similar forces, yet occupy one-half (1/2) or less the axial space. This allows for strict space constraints. Wave Springs will maintain the same force and load specifications of a conventional round wire spring, but with the advantages of resultant lowered and compacted operating heights, free heights and solid heights.

Material:

Carbon steel(SWC), cold roller steel, stainless steel(SUS), beryllium copper, phosphor copper, brass, music wire or piano wire (SWP), 60Si2Mn, 55CrSi etc

Finish:

blacking, zinc/nickel/chrome/silver/gold plating, powder coated etc

Wave spring measurements

MST Phosphor Copper / Brass Single Turn Overlap Wave Spring With Gold Plating / Powder Coated

Specification:

Part Number Bearing O.D.(mm) Clears Shaft Diameter(mm) Load (N) Work Height
(mm)		 Free Height
(mm)		 Number
of Waves		 Thickness
(mm)		 Radial Wall(mm) Spring Rate(N/mm)
LB-0035 9 6.86 25.8 1 1.5 3 0.2 0.81 52
LB-0039 10 7.49 27.6 1 1.57 3 0.2 1.02 48
LB-0043 11 8.46 29.4 1 1.83 3 0.2 1.02 35
LB-0047 12 9.17 33.4 1 1.57 3 0.25 1.17 59
LB-0051 13 9.53 37.8 1 1.57 3 0.25 1.47 66
LB-0063 16 11.28 44.5 1.57 2.29 3 0.25 1.98 65
LB-0075 19 14.28 53.4 1.57 3.05 3 0.25 1.98 35
LB-0087 22 16.46 62.3 1.57 2.79 3 0.3 2.39 48
LB-0095 24 18.46 66.7 1.57 3.56 3 0.3 2.39 35
LB-0102 26 18.22 71.2 1.98 2.54 3 0.41 3.38 111
LB-0110 28 20.22 75.6 1.98 2.79 3 0.41 3.38 85
LB-0118 30 22.22 84.5 1.98 3.3 3 0.41 3.38 66
LB-0126 32 24.22 89 1.98 3.81 3 0.41 3.38 52
LB-0138 35 27.22 97.9 1.98 4.57 3 0.41 3.38 38
LB-0146 37 28.72 102.3 1.98 3.81 3 0.46 3.63 58
LB-0158 40 31.72 111.2 1.98 5.08 3 0.46 3.63 37
LB-0165 42 33.72 115.7 1.98 3.05 4 0.46 3.63 99
LB-0185 47 38.72 129 1.98 3.81 4 0.46 3.63 68
LB-0205 52 43.11 142.4 2.36 3.56 4 0.61 3.76 121
LB-0217 55 46.11 151.3 2.36 3.81 4 0.61 3.76 100
LB-0244 62 51.69 169.1 2.36 4.32 4 0.61 4.52 85
LB-0268 68 57.17 186.9 2.77 4.32 4 0.76 4.78 131
LB-0276 70 59.17 191.3 2.77 4.32 4 0.76 4.78 119
LB-0284 72 61.17 195.8 2.77 4.57 4 0.76 4.78 108
LB-0295 75 64.17 204.7 2.77 5.08 4 0.76 4.78 94
LB-0315 80 68.66 218 2.77 5.59 4 0.76 4.78 76
LB-0335 85 71.38 231.4 2.77 5.59 4 0.76 5.92 83
LB-0354 90 76.38 249.2 2.77 6.35 4 0.76 5.92 68
LB-0374 95 81.38 262.5 2.77 7.37 4 0.76 5.92 57

Why Choose Us?

OVER 5,000 ITEMS STANDARDS,

CARBON AND STAINLESS STEEL,

NO-TOOLING COST,

WE CAN DESIGN THE CUSTOM PRODUCTS.
