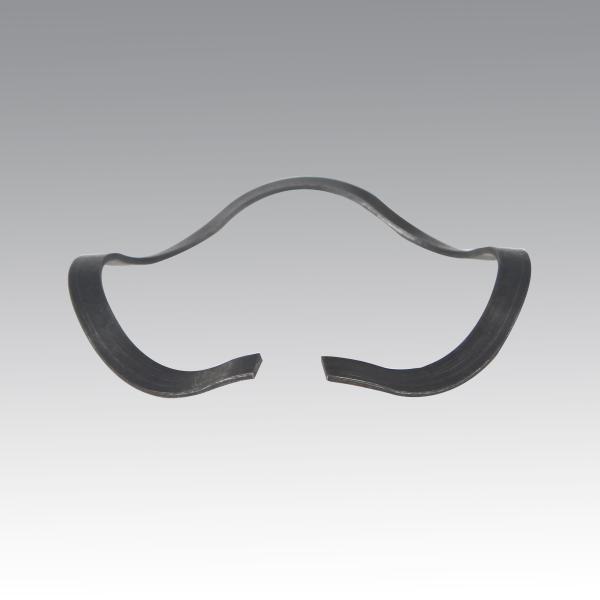

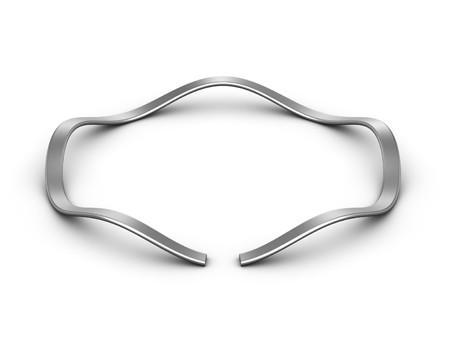

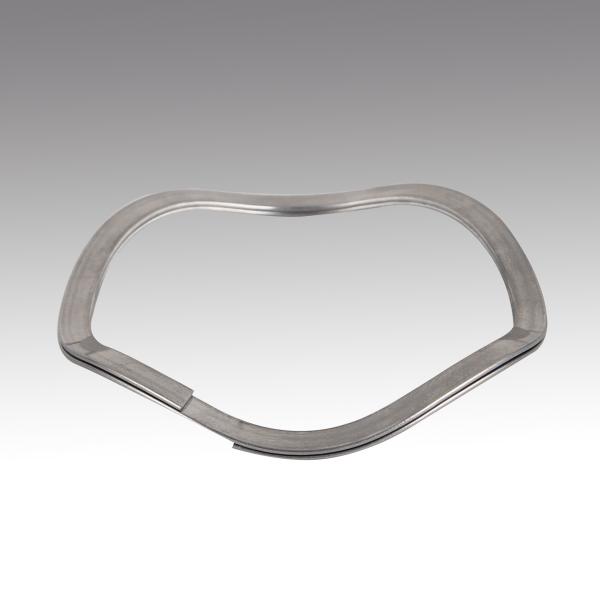

Bearing Preload Wave Springs Flat Nest Turn Carbon steel Wave Springs Washer
Bearing Preload Wave Springs Flat Nest Turn Carbon steel Wave Springs Washer
Bearing Preload Wave Springs Flat Nest Turn Carbon steel Wave Springs Washer
Bearing Preload Wave Springs Flat Nest Turn Carbon steel Wave Springs Washer
Bearing Preload Wave Springs Flat Nest Turn Carbon steel Wave Springs Washer
Bearing Preload Wave Springs Flat Nest Turn Carbon steel Wave Springs Washer
Specifications
Brand Name :
lisprings
Model Number :
MST
Certification :
ISO9001 TS16949
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
10000000
Delivery Time :
7 work days
Packaging Details :
Bulk packaged or Customize
Name :
MST Single Turn Wave Spring
Size :
5mm-1000mm
Tooling Charge :
Free
Used For :
oil & gas , Wind power ,Consumer Industrial
Material :
Carbon steel or Stainless Steel
Stock :
More than 1000 Types
Description

Bearing Preload Wave Springs Flat Nest Turn Carbon steel Wave Springs Washer

Description:

Bearing preload Wave Springs eliminate play and minimize bearingnoise.The constant light/medium pressure they apply removes play between the ball bearings and the bearings’ inner and outer races. Preloading can reduce the possibility of bearing damage due to vibration (vibratory loading) and wear due to repetitive and non-repetitive runout.

Material:

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420,A2

2. Steel:C45(K1045), C46(K1046),C20,1210,1018

3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)

4, Bronze: C51000, C52100, C54400, etc

5. Iron: 1213, 12L14,1215

6. Aluminum: Al6061, Al6063

7.Plastic :ABS,PP,Nylon,POM,G10,PEEK,PVC ect .

8.OEM according to your request

Wave spring measurements

Bearing Preload Wave Springs Flat Nest Turn Carbon steel Wave Springs Washer

Part Number Bearing O.D.(mm) Clears Shaft Diameter(mm) Load (N) Work Height
(mm)		 Free Height
(mm)		 Number
of Waves		 Thickness
(mm)		 Radial Wall(mm) Spring Rate(N/mm)
LB-0035 9 6.86 25.8 1 1.5 3 0.2 0.81 52
LB-0039 10 7.49 27.6 1 1.57 3 0.2 1.02 48
LB-0043 11 8.46 29.4 1 1.83 3 0.2 1.02 35
LB-0047 12 9.17 33.4 1 1.57 3 0.25 1.17 59
LB-0051 13 9.53 37.8 1 1.57 3 0.25 1.47 66
LB-0063 16 11.28 44.5 1.57 2.29 3 0.25 1.98 65
LB-0075 19 14.28 53.4 1.57 3.05 3 0.25 1.98 35
LB-0087 22 16.46 62.3 1.57 2.79 3 0.3 2.39 48
LB-0095 24 18.46 66.7 1.57 3.56 3 0.3 2.39 35
LB-0102 26 18.22 71.2 1.98 2.54 3 0.41 3.38 111
LB-0110 28 20.22 75.6 1.98 2.79 3 0.41 3.38 85
LB-0118 30 22.22 84.5 1.98 3.3 3 0.41 3.38 66
LB-0126 32 24.22 89 1.98 3.81 3 0.41 3.38 52
LB-0138 35 27.22 97.9 1.98 4.57 3 0.41 3.38 38
LB-0146 37 28.72 102.3 1.98 3.81 3 0.46 3.63 58
LB-0158 40 31.72 111.2 1.98 5.08 3 0.46 3.63 37
LB-0165 42 33.72 115.7 1.98 3.05 4 0.46 3.63 99
LB-0185 47 38.72 129 1.98 3.81 4 0.46 3.63 68
LB-0205 52 43.11 142.4 2.36 3.56 4 0.61 3.76 121
LB-0217 55 46.11 151.3 2.36 3.81 4 0.61 3.76 100
LB-0244 62 51.69 169.1 2.36 4.32 4 0.61 4.52 85
LB-0268 68 57.17 186.9 2.77 4.32 4 0.76 4.78 131
LB-0276 70 59.17 191.3 2.77 4.32 4 0.76 4.78 119
LB-0284 72 61.17 195.8 2.77 4.57 4 0.76 4.78 108
LB-0295 75 64.17 204.7 2.77 5.08 4 0.76 4.78 94
LB-0315 80 68.66 218 2.77 5.59 4 0.76 4.78 76
LB-0335 85 71.38 231.4 2.77 5.59 4 0.76 5.92 83
LB-0354 90 76.38 249.2 2.77 6.35 4 0.76 5.92 68
LB-0374 95 81.38 262.5 2.77 7.37 4 0.76 5.92 57
LB-0394 100 86.38 275.9 2.77 4.57 5 0.76 5.92 157
LB-0413 105 91.38 289.2 2.77 5.08 5 0.76 5.92 134
LB-0433 110 96.38 302.6 2.77 5.33 5 0.76 5.92 115
LB-0453 115 101.38 315.9 3.18 6.35 5 0.76 5.92 99
LB-0472 120 106.38 329.3 3.18 7.11 5 0.76 5.92 86
LB-0492 125 111.38 342.6 3.18 7.62 5 0.76 5.92 76
LB-0512 130 116.38 356 3.18 8.64 5 0.76 5.92 67
LB-0532 135 121.38 369.3 3.18 9.4 5 0.76 5.92 59
LB-0551 140 126.38 382.7 3.18 6.86 6 0.76 5.92 108
LB-0571 145 131.38 396 3.18 7.37 6 0.76 5.92 97
LB-0591 150 136.38 404.9 3.18 7.87 6 0.76 5.92 87
LB-0630 160 146.38 440.5 3.18 9.4 6 0.76 5.92 71
LB-0650 165 151.38 453.9 3.18 10.41 6 0.76 5.92 64
LB-0669 170 156.38 467.2 3.18 11.18 6 0.76 5.92 58
LB-0689 175 154.16 480.6 3.96 8.13 6 0.81 9.53 116
LB-0709 180 159.16 493.9 3.96 8.64 6 0.81 9.53 105
LB-0728 185 164.16 507.3 3.96 9.14 6 0.81 9.53 97
LB-0748 190 169.16 520.6 3.96 9.91 6 0.81 9.53 88
LB-0787 200 179.16 547.3 3.96 7.11 7 0.81 9.53 174
LB-0807 205 184.16 560.7 3.96 7.37 7 0.81 9.53 161
LB-0827 210 189.16 578.5 3.96 7.87 7 0.81 9.53 149
LB-0847 215 194.16 591.8 3.96 8.38 7 0.81 9.53 138
LB-0866 220 199.16 605.2 3.96 8.64 7 0.81 9.53 128
LB-0886 225 204.16 618.5 3.96 7.11 8 0.81 9.53 203
LB-0906 230 209.16 631.9 3.96 6.1 9 0.81 9.53 303
LB-0925 235 214.16 645.2 3.96 6.35 9 0.81 9.53 283
LB-0945 240 219.16 658.6 3.96 6.35 9 0.81 9.53 265
LB-0984 250 229.16 685.3 3.96 6.86 9 0.81 9.53 232
LB-1024 260 239.16 712 3.96 7.37 9 0.81 9.53 205
LB-1043 265 244.16 725.3 3.96 7.62 9 0.81 9.53 193
LB-1063 270 249.16 743.1 3.96 8.13 9 0.81 9.53 182
LB-1102 280 259.16 769.8 3.96 8.64 9 0.81 9.53 162
LB-1142 290 269.16 796.5 3.96 9.4 9 0.81 9.53 144
LB-1181 300 279.16 823.2 3.96 10.41 9 0.81 9.53 129
LB-1221 310 289.16 849.9 3.96 7.11 9 1.07 9.53 264
LB-1260 320 299.16 876.6 3.96 7.62 9 1.07 9.53 239
LB-1339 340 319.16 934.5 3.96 8.64 9 1.07 9.53 198
LB-1378 350 329.16 961.1 3.96 9.4 9 1.07 9.53 180
LB-1417 360 339.16 987.9 3.96 7.62 10 1.07 9.53 271
LB-1457 370 349.16 1015 3.96 8.13 10 1.07 9.53 249
LB-1496 380 359.16 1041 3.96 8.64 10 1.07 9.53 229
LB-1535 390 369.16 1072 3.96 9.14 10 1.07 9.53 211
LB-1575 400 379.16 1099 3.96 9.65 10 1.07 9.53 196
LB-1614 410 382.82 1126 3.96 8.38 10 1.07 12.7 251
LB-1654 420 392.82 1153 3.96 8.89 10 1.07 12.7 233
LB-1693 430 402.82 1179 3.96 7.62 11 1.07 12.7 317
LB-1732 440 412.82 1206 3.96 8.13 11 1.07 12.7 295
LB-1811 460 432.82 1264 3.96 8.89 11 1.07 12.7 256
LB-1890 480 452.82 1317 3.96 8.13 12 1.07 12.7 318
LB-1969 500 472.82 1371 3.96 8.89 12 1.07 12.7 280
LB-2126 540 512.82 1482 3.96 8.89 13 1.07 12.7 303
LB-2284 580 552.82 1593 3.96 8.89 14 1.07 12.7 327
