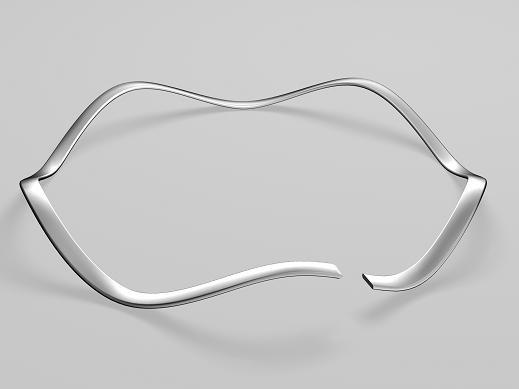

Steel Pad Bearing Preload Single Wave Washer Coil For Electronic Products
Steel Pad Bearing Preload Single Wave Washer Coil For Electronic Products
Steel Pad Bearing Preload Single Wave Washer Coil For Electronic Products
Steel Pad Bearing Preload Single Wave Washer Coil For Electronic Products
Steel Pad Bearing Preload Single Wave Washer Coil For Electronic Products
Steel Pad Bearing Preload Single Wave Washer Coil For Electronic Products
Specifications
Brand Name :
lisprings
Model Number :
LM
Certification :
ISO9001 IATF16949
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
10000000
Delivery Time :
7 work days
Packaging Details :
Bulk packaged or Customize
Name :
Single wave pad bearing preload washers
Size :
5mm-1000mm
Specification :
RoHS, REACH
Type :
Coil
Material :
Steel
Stock :
More than 2000Types
Description

Single wave pad bearing preload washers coil company manufacturers For Electronic Products

Description:

Single-turn wave springs are used for several applications, mainly designed for short deflection and low to medium forces. Technology enables to provide a dependable and accurate fit.

The free ends of a wave spring with gap type are allowed for the spring outside diameter grows during compression, which if constrained in a bore prevents binding of comparable stamped wave washers, this design has dramatically improved the fatigue resistance and lifetimes. Thus reduces costs effectively.

Specification:

Part Number LB-0035 LB-0039 LB-0043 LB-0047 LB-0051 LB-0063 LB-0075 LB-0087 LB-0095 LB-0102 LB-0110 LB-0118 LB-0126 LB-0138
Bearing O.D.(mm) 9 10 11 12 13 16 19 22 24 26 28 30 32 35
Clears Shaft Diameter(mm) 6.86 7.49 8.46 9.17 9.53 11.28 14.28 16.46 18.46 18.22 20.22 22.22 24.22 27.22
Load (N) 25.8 27.6 29.4 33.4 37.8 44.5 53.4 62.3 66.7 71.2 75.6 84.5 89 97.9
Work Height
(mm)		 1 1 1 1 1 1.57 1.57 1.57 1.57 1.98 1.98 1.98 1.98 1.98
Free Height
(mm)		 1.5 1.57 1.83 1.57 1.57 2.29 3.05 2.79 3.56 2.54 2.79 3.3 3.81 4.57
Number
of Waves		 3 3 3 3 3 3 3 3 3 3 3 3 3 3
Thickness
(mm)		 0.2 0.2 0.2 0.25 0.25 0.25 0.25 0.3 0.3 0.41 0.41 0.41 0.41 0.41
Radial Wall(mm) 0.81 1.02 1.02 1.17 1.47 1.98 1.98 2.39 2.39 3.38 3.38 3.38 3.38 3.38
Spring Rate(N/mm) 52 48 35 59 66 65 35 48 35 111 85 66 52 38

Processing Steps:
Design →Drawing→ Flat the wire → CNC Machining → Heat treatment → Surface → Finishing → Quality Inspection → Packing

Finish:

Oil Dip,Passivation,blacking, zinc/nickel/chrome/silver/gold plating, powder coated etc

Primary Competitive Advantage:

•Over 3000 types Wave springs and Spiral rings standard parts in stock

•We make the Product as your samples or your design fully

•We have strong researching and developing team to solve Product problem

We supply high quality Productfor many world famous companies

•Our factory got ISO 9001 and TS16949 certificate

•Small trial orders can be accepted, free sample is available
