Precision SUS304/316/65Mn Coil Round Wire Spring Clips For Medical Machine
Precision SUS304/316/65Mn Coil Round Wire Spring Clips For Medical Machine
Precision SUS304/316/65Mn Coil Round Wire Spring Clips For Medical Machine
Precision SUS304/316/65Mn Coil Round Wire Spring Clips For Medical Machine
Specifications
Brand Name :
lisprings
Model Number :
RW
Certification :
ISO9001 IATF16949
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
10000000
Delivery Time :
7 work days
Packaging Details :
Bulk packaged or Customize
Name :
coil round-section wire wave spring for medical machine
Size :
5mm-1000mm
Specification :
RoHS, REACH
Load Type :
Compression
Material :
SUS304/316/65Mn
Stock :
More than 2000Types
Description

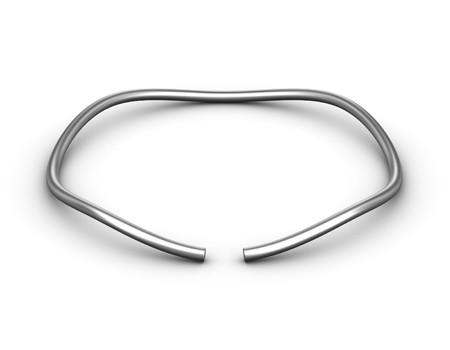

Precision SUS304/316/65Mn coil round-section wire wave spring for medical machine

Description:

round-section wire wave spring are produced from round-section wire to provide higher loads while maintaining the accurate loading found in wave springs. As an alternative to Belleville Springs, the round-section wire wave spring provides similar loads but with an accurate, predictable spring rate.

Precision SUS304/316/65Mn Coil Round Wire Spring Clips For Medical Machine

Specification:

Part Number RW-0050 RW-0062 RW-0075 RW-0087 RW-0100 RW-0112 RW-0125 RW-0137 RW-0150 RW-0162 RW-0175 RW-0187 RW-0200
Operates in Bore Diameter(inch) 0.5 0.625 0.75 0.875 1 1.125 1.25 1.375 1.5 1.625 1.75 1.875 2
Clears Shaft Diameter(inch) 0.408 0.517 0.628 0.74 0.855 0.967 1.081 1.223 1.339 1.444 1.564 1.682 1.803
Load (lb) 35 50 70 80 90 100 110 120 130 140 150 160 170
Work Height
(inch)		 0.052 0.064 0.076 0.086 0.095 0.102 0.11 0.095 0.102 0.11 0.113 0.119 0.124
Free Height
(inch)		 0.062 0.077 0.092 0.104 0.116 0.127 0.138 0.121 0.128 0.137 0.144 0.155 0.165
Number of Waves 3 3 3 3 3 3 3 4 4 4 4 4 4
Wire Diameter
(inch)		 0.031 0.038 0.045 0.051 0.056 0.06 0.065 0.056 0.06 0.065 0.067 0.07 0.072
Spring Rate
(inch/lb)		 3500 3846 4375 4444 4286 4000 3929 4615 5000 5185 4839 4444 4146

Processing Steps:
Design →Drawing→ Flat the wire → CNC Machining → Heat treatment → Surface → Finishing → Quality Inspection → Packing

Finish:

Oil Dip,Passivation,blacking, zinc/nickel/chrome/silver/gold plating, powder coated etc

Primary Competitive Advantage:

•Over 3000 types Wave springs and Spiral rings standard parts in stock
•Prompt Delivery Quality Approvals

•Service Sample Available

•We have over 10 years of professional experience as a manufacturer of Wave springs , Spiral Retaining Rings , Constant Section Retaining Ring , Laminar Seal Rings

•We make the Product as your samples or your design fully

•We have strong researching and developing team to solve Product problem

•There are lot of raw material suppliers around our factory

We supply high quality Productfor many world famous companies

•Our factory got ISO 9001 and TS16949 certificate

•Small trial orders can be accepted, free sample is available

•Our price is reasonable and keep top quality for every clients

Round-section wire wave spring measurements:

Precision SUS304/316/65Mn Coil Round Wire Spring Clips For Medical Machine
