Specifications
Brand Name :
lisprings
Model Number :
LM
Certification :
ISO9001 IATF16949
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Supply Ability :
10000000
Delivery Time :
7 work days
Packaging Details :
Bulk packaged or Customize
Name :
flat wire wave springs metric wave washer
Size :
50mm
Specification :
RoHS, REACH
Load Type :
Compression
Material :
17-7ph Carbon / Stainless Steel
Stock :
More than 1000Types
Supply type :
OEM service
Description

flat wire wave springs metric wave washer suppliers Steel Size OD 50mm

Description:

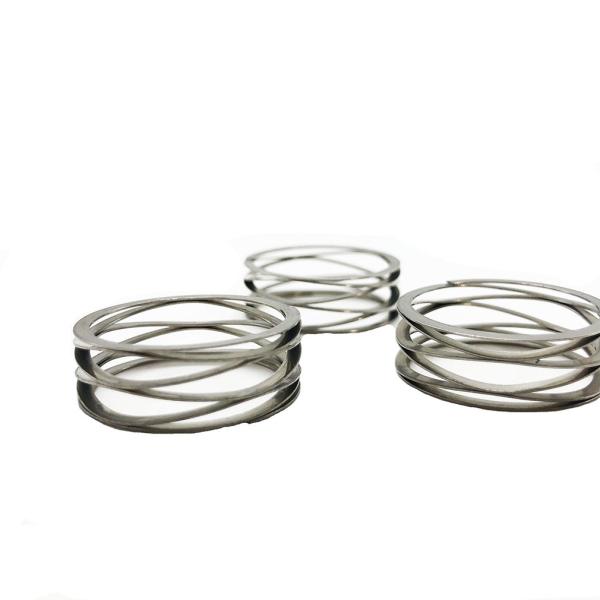

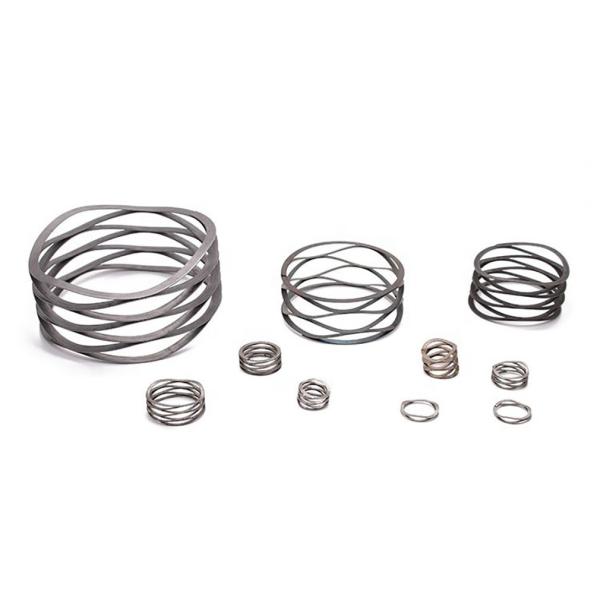

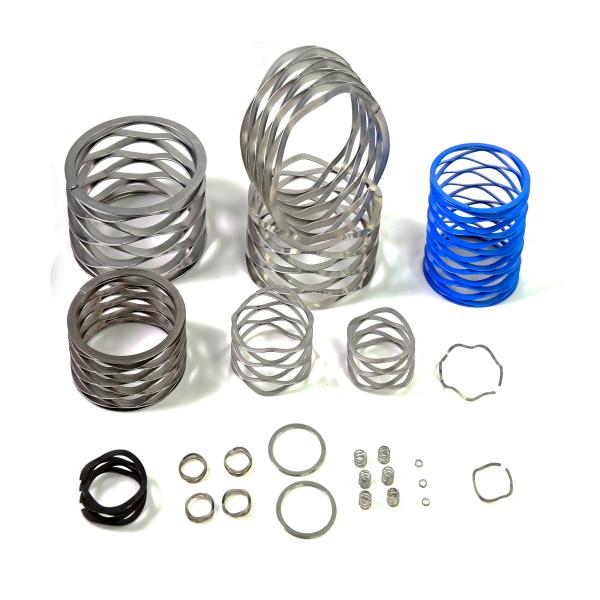

MultiWave springs are made of a single filament of round-edged, pre-tempered flat wire from a continuous coil. This results in uniform diameters and wave heights. They replace conventional round wire springs when space is critical, typically occupying only 1/3 to ½ of the compressed height space, while providing more deflection with the same load specifications.
Advantages of Wave Spring:
A space saving choice: smaller volume than round wire coil springs
Lighter weight and raw material usage than round wire coil springs
More operating heights,lower solid height than round wire coil springs

Specification:

Part No. Operates in
Bore Diameter		 Lears Shaft
Diameter		 Load Work Height Free Height Waves Turns Thinkness Radial Wall Spring Rate
mm mm (N) mm mm mm mm N/MM
LM50-H1 50 40 400 5.92 10.29 4.5 3 0.61 3.76 91.53
LM50-L1 50 40 110 4.83 10.29 3.5 3 0.53 3.63 20.15
LM50-M1 50 40 225 4.62 10.29 4.5 3 0.46 3.63 39.68
LM50-H2 50 40 400 7.8 13.72 4.5 4 0.61 3.76 67.57
LM50-L2 50 40 110 6.1 13.72 3.5 4 0.53 3.63 14.44
LM50-M2 50 40 225 6.35 13.72 4.5 4 0.46 3.63 30.53
LM50-H3 50 40 400 10.16 17.15 4.5 5 0.61 3.76 57.22
LM50-L3 50 40 110 7.87 17.15 3.5 5 0.53 3.63 11.85
LM50-M3 50 40 225 7.49 17.15 4.5 5 0.46 3.63 23.29
LM50-H4 50 40 400 11.79 20.57 4.5 6 0.61 3.76 45.56
LM50-L4 50 40 110 9.4 20.57 3.5 6 0.53 3.63 9.85
LM50-M4 50 40 225 8.89 20.57 4.5 6 0.46 3.63 19.26
LM50-H5 50 40 400 14.15 24 4.5 7 0.61 3.76 40.61
LM50-L5 50 40 110 11.3 24 3.5 7 0.53 3.63 8.66
LM50-M5 50 40 225 10.54 24 4.5 7 0.46 3.63 16.72
LM50-H6 50 40 400 15.62 27.43 4.5 8 0.61 3.76 33.87
LM50-L6 50 40 110 12.7 27.43 3.5 8 0.53 3.63 7.47
LM50-M6 50 40 225 11.89 27.43 4.5 8 0.46 3.63 14.48
LM50-H7 50 40 400 17.91 30.86 4.5 9 0.61 3.76 30.89
LM50-L7 50 40 110 14.99 30.86 3.5 9 0.53 3.63 6.93
LM50-M7 50 40 225 13.59 30.86 4.5 9 0.46 3.63 13.03
LM50-H8 50 40 400 21.54 37.72 4.5 11 0.61 3.76 24.72
LM50-L8 50 40 110 18.16 37.72 3.5 11 0.53 3.63 5.62
LM50-M8 50 40 225 16.71 37.72 4.5 11 0.46 3.63 10.71
LM50-H9 50 40 400 25.65 44.58 4.5 13 0.61 3.76 21.13
LM50-L9 50 40 110 21.34 44.58 3.5 13 0.53 3.63 4.73
LM50-M9 50 40 225 19.61 44.58 4.5 13 0.46 3.63 9.01
LM50-H10 50 40 400 29.21 51.44 4.5 15 0.61 3.76 17.99
LM50-L10 50 40 110 24.64 51.44 3.5 15 0.53 3.63 4.1
LM50-M10 50 40 225 22.48 51.44 4.5 15 0.46 3.63 7.77
