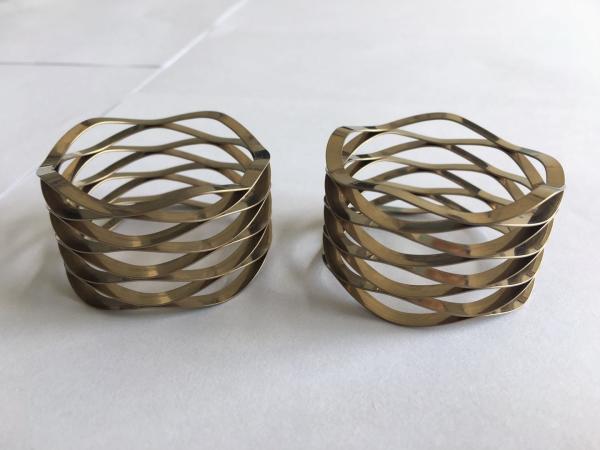

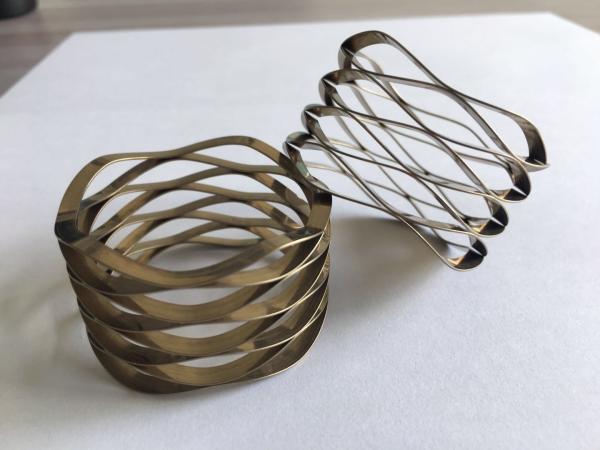

Custom High Precision Stainless Steel Serpentine Square Wire Wave Disc Spring
Custom High Precision Stainless Steel Serpentine Square Wire Wave Disc Spring
Custom High Precision Stainless Steel Serpentine Square Wire Wave Disc Spring
Custom High Precision Stainless Steel Serpentine Square Wire Wave Disc Spring
Custom High Precision Stainless Steel Serpentine Square Wire Wave Disc Spring
Custom High Precision Stainless Steel Serpentine Square Wire Wave Disc Spring
Specifications
Brand Name :
lisprings
Model Number :
LM
Certification :
ISO9001 IATF16949
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Supply Ability :
10000000
Delivery Time :
7 work days
Packaging Details :
Bulk packaged or Customize
Name :
stainless steel serpentine square wire wave spring
Size :
OD45mm
Specification :
RoHS, REACH
Load Type :
Compression
Material :
17-7ph Stainless Steel/Carbon
Stock :
More than 1000Types
Supply type :
OEM service
Description

Custom high precision stainless steel serpentine square wire wave spring wave disc spring

Description:

1.A wave spring, also known as coiled wave spring or scrowave spring, is a spring made up of pre-hardened flat wire in a
process called on-edge coiling (also known as edge-winding). During this process, waves are added to give it a spring effect.
2.MultiWave Springs or Multi-Wave Compression Springs offer deflections beyond round wire springs and occupy less axial space
3.Lispring Wave Springs (Flat Wire Compression Springs) offer the unique advantage of space savings when used to replace coil springs.
Specification:
Part No. Operates in
Bore Diameter		 Lears Shaft
Diameter		 Load Work Height Free Height Waves Turns Thinkness Radial Wall Spring Rate
mm mm (N) mm mm mm mm N/MM
LM45-H1 45 35 400 6.43 9.91 4.5 3 0.61 3.76 114.94
LM45-L1 45 35 110 3.38 9.91 3.5 3 0.46 3.63 16.85
LM45-M1 45 35 225 5.33 9.91 4.5 3 0.46 3.63 49.13
LM45-H2 45 35 400 8.38 13.21 4.5 4 0.61 3.76 82.82
LM45-L2 45 35 110 4.52 13.21 3.5 4 0.46 3.63 12.66
LM45-M2 45 35 225 6.99 13.21 4.5 4 0.46 3.63 36.17
LM45-H3 45 35 400 11.2 16.51 4.5 5 0.61 3.76 75.33
LM45-L3 45 35 110 5.64 16.51 3.5 5 0.46 3.63 10.12
LM45-M3 45 35 225 9.14 16.51 4.5 5 0.46 3.63 30.53
LM45-H4 45 35 400 12.95 19.81 4.5 6 0.61 3.76 58.31
LM45-L4 45 35 110 6.76 19.81 3.5 6 0.46 3.63 8.43
LM45-M4 45 35 225 10.8 19.81 4.5 6 0.46 3.63 24.97
LM45-H5 45 35 400 15.37 23.11 4.5 7 0.61 3.76 51.68
LM45-L5 45 35 110 7.9 23.11 3.5 7 0.46 3.63 7.23
LM45-M5 45 35 225 12.7 23.11 4.5 7 0.46 3.63 21.61
LM45-H6 45 35 400 17.27 26.42 4.5 8 0.61 3.76 43.72
LM45-L6 45 35 110 9.02 26.42 3.5 8 0.46 3.63 6.32
LM45-M6 45 35 225 14.48 26.42 4.5 8 0.46 3.63 18.84
LM45-H7 45 35 400 19.68 29.72 4.5 9 0.61 3.76 39.88
LM45-L7 45 35 110 10.16 29.72 3.5 9 0.46 3.63 5.62
LM45-M7 45 35 225 16.26 29.72 4.5 9 0.46 3.63 16.72
LM45-H8 45 35 400 24.26 36.32 4.5 11 0.61 3.76 33.17
LM45-L8 45 35 110 12.4 36.32 3.5 11 0.46 3.63 4.6
LM45-M8 45 35 225 19.81 36.32 4.5 11 0.46 3.63 13.63
LM45-H9 45 35 400 28.45 42.93 4.5 13 0.61 3.76 27.62
LM45-L9 45 35 110 14.66 42.93 3.5 13 0.46 3.63 3.89
LM45-M9 45 35 225 23.37 42.93 4.5 13 0.46 3.63 11.5
