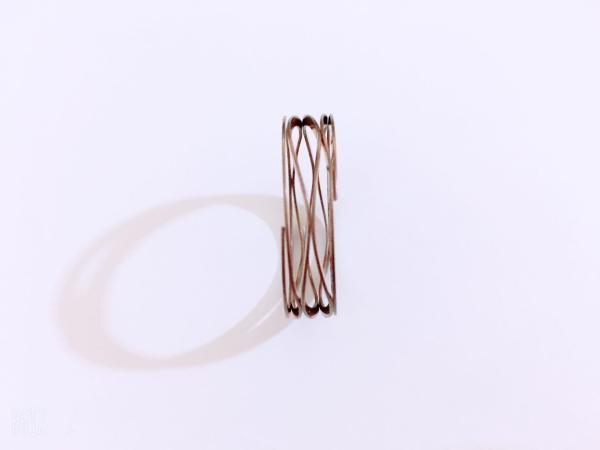

Precision Wave Springs SUS304/316/65Mn Coil Round Section Wire 6mm - 7mm
Precision Wave Springs SUS304/316/65Mn Coil Round Section Wire 6mm - 7mm
Precision Wave Springs SUS304/316/65Mn Coil Round Section Wire 6mm - 7mm
Precision Wave Springs SUS304/316/65Mn Coil Round Section Wire 6mm - 7mm
Precision Wave Springs SUS304/316/65Mn Coil Round Section Wire 6mm - 7mm
Precision Wave Springs SUS304/316/65Mn Coil Round Section Wire 6mm - 7mm
Specifications
Brand Name :
lisprings
Model Number :
LM/L
Certification :
ISO9001 IATF16949
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
10000000
Delivery Time :
7 work days
Packaging Details :
Bulk packaged or Customize
Name :
wire wave spring
Size :
6-7mm
Specification :
RoHS, REACH
Load Type :
Compression
Material :
SUS304/316/65Mn
Stock :
More than 1000Types
Surface treatment :
paint spraying
Supply type :
OEM service
Description

Precision SUS304/316/65Mn coil round-section wire wave spring 6-7mm

Description:

material: steel,or according to your required
size:In addition to the following table, you can also provide 4-60mm standard
surface:black,zinc,nickel
10 years export experience

OEM and ODM are welcome.

We can produce wave spring according to drawing, samples. If you demand such these, please contact me.

Specification:

Part No. Operates in
Bore Diameter		 Lears Shaft
Diameter		 Load Work Height Free Height Waves Turns Thinkness Radial Wall Spring Rate
mm mm (N) mm mm mm mm N/MM
L025-L1* 6.35 3.81 8.89 0.84 1.91 2.5 3 0.15 0.61 8.4
L025-M1* 6.35 3.81 22.23 0.94 1.91 2.5 3 0.2 0.61 23.1
L025-L2* 6.35 3.81 8.89 1.27 2.54 2.5 4 0.15 0.61 7
L025-M2* 6.35 3.81 22.23 1.22 2.54 2.5 4 0.2 0.61 16.8
L025-L3* 6.35 3.81 8.89 1.52 3.18 2.5 5 0.15 0.61 5.425
L025-M3* 6.35 3.81 22.23 1.65 3.18 2.5 5 0.2 0.61 14.525
L025-L4* 6.35 3.81 8.89 1.91 3.81 2.5 6 0.15 0.61 4.725
L025-M4* 6.35 3.81 22.23 1.91 3.81 2.5 6 0.2 0.61 11.725
L025-L5* 6.35 3.81 8.89 2.16 4.45 2.5 7 0.15 0.61 3.85
L025-M5* 6.35 3.81 22.23 2.29 4.45 2.5 7 0.2 0.61 10.325
L025-L6* 6.35 3.81 8.89 2.41 5.08 2.5 8 0.15 0.61 3.325
L025-M6* 6.35 3.81 22.23 2.54 5.08 2.5 8 0.2 0.61 8.75
L025-L7* 6.35 3.81 8.89 3.05 5.72 2.5 9 0.15 0.61 3.325
L025-M7* 6.35 3.81 22.23 3.05 5.72 2.5 9 0.2 0.61 8.4
L025-L8* 6.35 3.81 8.89 3.56 6.99 2.5 11 0.15 0.61 2.625
L025-M8* 6.35 3.81 22.23 3.76 6.99 2.5 11 0.2 0.61 6.825
L025-L9* 6.35 3.81 8.89 4.32 8.26 2.5 13 0.15 0.61 2.275
L025-M9* 6.35 3.81 22.23 4.45 8.26 2.5 13 0.2 0.61 5.775
L031-L1 7.92 5.08 13.34 1.78 2.9 2.5 3 0.2 0.81 11.9
L031-M1 7.92 5.08 26.67 1.83 2.9 2.5 3 0.25 0.81 25.025
L031-L2 7.92 5.08 13.34 2.44 3.86 2.5 4 0.2 0.81 9.45
L031-M2 7.92 5.08 26.67 2.44 3.86 2.5 4 0.25 0.81 18.725
L031-L3 7.92 5.08 13.34 3 4.83 2.5 5 0.2 0.81 7.35
L031-M3 7.92 5.08 26.67 3.12 4.83 2.5 5 0.25 0.81 15.75
L031-L4 7.92 5.08 13.34 3.68 5.79 2.5 6 0.2 0.81 6.3
L031-M4 7.92 5.08 26.67 3.66 5.79 2.5 6 0.25 0.81 12.425
L031-L5 7.92 5.08 13.34 4.19 6.76 2.5 7 0.2 0.81 5.25
L031-M5 7.92 5.08 26.67 4.47 6.76 2.5 7 0.25 0.81 11.725
L031-L6 7.92 5.08 13.34 4.95 7.72 2.5 8 0.2 0.81 4.9
L031-M6 7.92 5.08 26.67 5 7.72 2.5 8 0.25 0.81 9.8
L031-L7 7.92 5.08 13.34 5.46 8.69 2.5 9 0.2 0.81 4.2
L031-M7 7.92 5.08 26.67 5.77 8.69 2.5 9 0.25 0.81 9.1
L031-L8 7.92 5.08 13.34 6.65 10.62 2.5 11 0.2 0.81 3.325
L031-M8 7.92 5.08 26.67 7.06 10.62 2.5 11 0.25 0.81 7.525
L031-L9 7.92 5.08 13.34 7.85 12.55 2.5 13 0.2 0.81 2.8
L031-M9 7.92 5.08 26.67 8.53 12.55 2.5 13 0.25 0.81 6.65

Advantage of wave springs

1,No material waste compared to stamped parts

2,Rolled flat wire features edges with a radius—NO DAMAGE TO SHAFT/BORE

3,No stamping burrs eliminates the grinding process

4,No stamping through the metal grain--microstructures remain intact

5,Microstructure offers better strength because the line of force in circumferential direction is not disturbed; risk of fatigue cracking and inconsistent loading in a lot is minimized.
