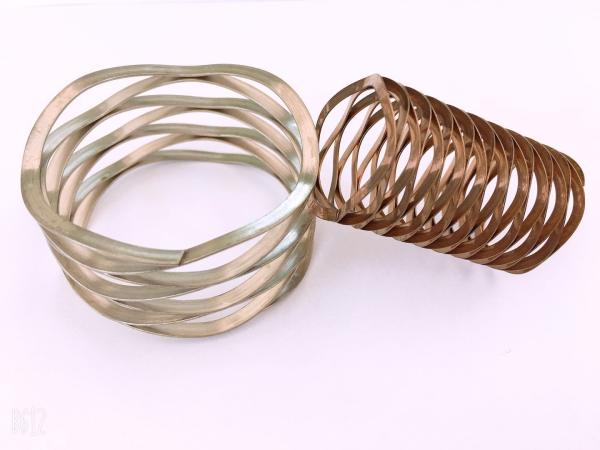

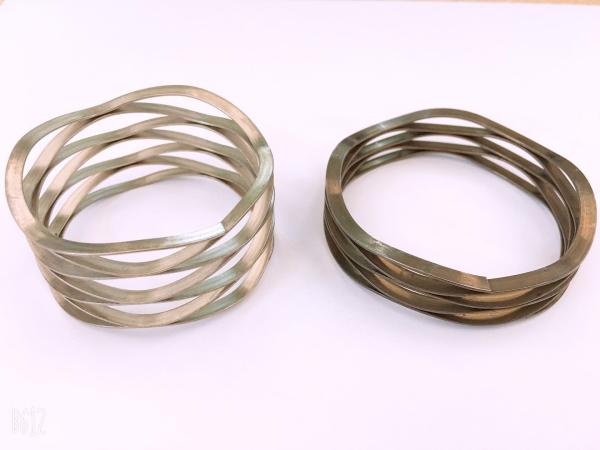

Free Sample Multi Turn Wave Springs For Mechanical Seal , Wave Disc Spring Washer
Free Sample Multi Turn Wave Springs For Mechanical Seal , Wave Disc Spring Washer
Free Sample Multi Turn Wave Springs For Mechanical Seal , Wave Disc Spring Washer
Free Sample Multi Turn Wave Springs For Mechanical Seal , Wave Disc Spring Washer
Specifications
Brand Name :
lisprings
Model Number :
LM
Certification :
ISO9001 IATF16949
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
10000000
Delivery Time :
7 work days
Packaging Details :
Bulk packaged or Customize
Name :
Multi turn wave spring manufacturers
Size :
5mm-1000mm
Specification :
RoHS, REACH
Load Type :
Compression
Material :
Stainless Steel
Stock :
More than 2000Types
Description

Multi turn wave spring manufacturers wave disc spring for mechanical seal

Description:

Wave springs help to save up to 50% of axial space in your application when compared to conventional coil springs. The result is more compact applications in which unnecessary space and therefore excess material of neighboring components can be reduced to a minimum. The flat wire effectively reduces the solid height of the wave spring so that with the same amount of turns one can visibly reduce the work height without compromising the load or spring deflection. Another advantage is that one can increase the number of turns of the spring design in order to decrease the deflection per turn when the wave spring is compressed. Thus, the spring rate is reduced proportionally to the number of turns and a flat linear characteristic can be generated.

Specification:

Product Name Multiturn Wave Springs for bearing Carbon / Stainless Steel Size 5mm-1000mm
Sample Free to send you if have stock
Material

OIL TEMPERED(SAE1070-1090), HARD DRAWN SAE 1060 - 1075, stainless steel 304,316,631,17-7PH(SUS), beryllium copper, phosphor copper,65Mn, A-286 ,

Inconel Alloy X-750 ,X-718 ,Elgiloy ,MONEL K-500, MONEL 400 etc
Surface Treatment Oil Dip,Passivation,blacking, zinc/nickel/chrome/silver/gold plating, powder coated etc
Usage For aerospace, automotive, medical, off-highway, oil & gas , Wind power ,Consumer Industrial etc.
Euipments Roll Machine/Spring Machine/Laser Cutting Machine/CNC Shearing Machine/Flat Bed Spot-welder/Die Grinder/Steel Processing Machine/Double Servo Turret-type Punch Press/Banding Machine/Steel Processing Machine/etc.
Quality Control Acoording to ROHS and SGS,conducted by 16949
Testing Lists Coordinate measuring machine,XRF,Technical projector,Salt spray tester,HTHH test,Abrasion tester etc.
Packing Inner--PE Bag; Outer--Carton Box.

Wave spring measurements:
