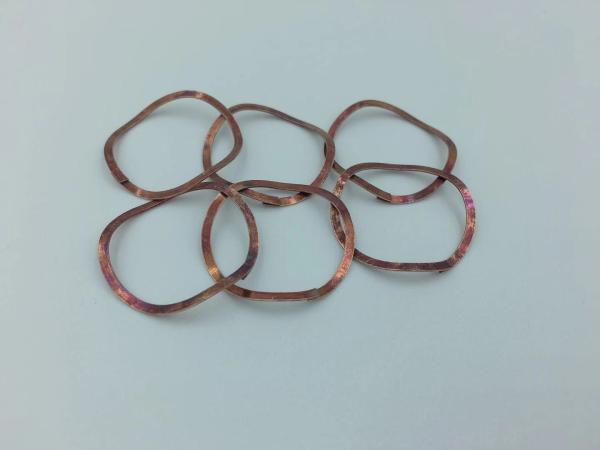

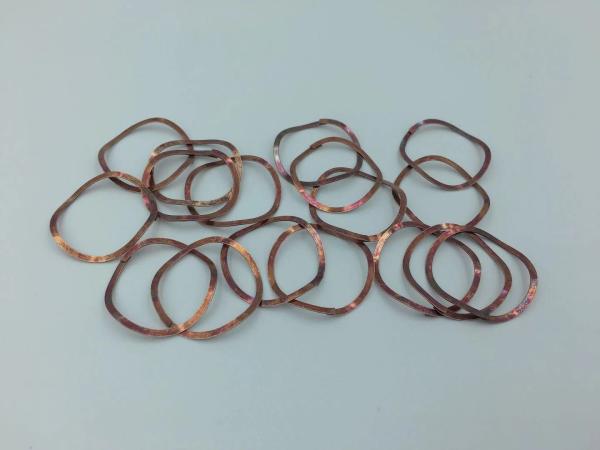

Customized Flat Wire Compression Overlapping Wave Spring Washers Sizes
Customized Flat Wire Compression Overlapping Wave Spring Washers Sizes
Customized Flat Wire Compression Overlapping Wave Spring Washers Sizes
Customized Flat Wire Compression Overlapping Wave Spring Washers Sizes
Customized Flat Wire Compression Overlapping Wave Spring Washers Sizes
Customized Flat Wire Compression Overlapping Wave Spring Washers Sizes
Specifications
Brand Name :
lisprings
Model Number :
LR/LB
Certification :
ISO9001 IATF16949
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
10000000
Delivery Time :
7 work days
Packaging Details :
Bulk packaged or Customize
Name :
Overlapping wave spring washers
Length :
Non-standard as request&design
Non-standards :
OEM is available if you provide a drawing or sample
Sample :
Free(If there is ready-made goods)
Product standards :
GB,DIN,BS,ISO,JIS,ANSI,UNC
Packing :
Inner--PE Bag; Outer--Carton Box
Description

Customized flat wire compression Overlapping wave spring washers sizes

Material Finishes:

1.Passivation

Passivation is an optional cleaning operation for stainless steel. It provides a bright finish and increased corrosion resistance. Passivation dissolves iron particles and other substances, which have become imbedded in the surface of stainless steel during production. If not dissolved, these foreign particles could promote rusting, discoloration or even pitting.

2.Vapor Degrease/Ultrasoni

This is the standard cleaning and finish for all stainless steels. The process removes oil and other organic compounds from the material surface by use of a chlorinated solvent. The solvent effectively removes oil and grease from the exposed surfaces of the ring or spring. Ultrasonics are used in forcing the solvent to act between the turns of the ring.

3.Vibratory Deburr/Hand Deburr

Though all circumferential surfaces and edges of Spirolox Rings are smooth, sharp corners are always present on the gap ends due to the cut-off operation. To break the sharp corners, achieving a blended/smooth surface finish, rings may either be vibratory or hand deburred to meet your specifications.

Specification:

Part No. Operates in
Bore Diameter		 Lears Shaft
Diameter		 Load Work Height Free Height Waves Thinkness Radial Wall Spring Rate Open
mode
mm mm (N) mm mm mm mm N/MM
JBT-042 42 - 205-295 1.5 2.7 4 0.53 3.63 - overlap
LB-0165 42 33.72 115.7 1.98 3.05 4 0.46 3.63 99 overlap
LR-0175 44.45 36.58 133.36 1.98 3.56 4 0.46 3.63 84.7 gap
JBT-047 47 - 225-315 1.5 3.4 4 0.59 3.23 - overlap
LB-0185 47 38.72 129 1.98 3.81 4 0.46 3.63 68 overlap
LR-0187 47.63 39.62 142.25 1.98 3.81 4 0.46 3.63 77.7 gap
LR-0200 50.8 42.67 151.14 2.36 3.56 4 0.61 3.81 126.53 gap
LB-0453 115 101.38 315.9 3.18 6.35 5 0.76 5.92 99 gap
LR-0462 117.48 104.39 324.51 3.18 6.86 5 0.76 5.92 88.03 gap
LR-0462-N 117.48 106.43 324.51 3.18 6.86 5 0.76 4.78 88.03 gap
JBT-120 120 - 515-625 2 5.8 6 0.76 4.78 - gap
LB-0472 120 106.38 329.3 3.18 7.11 5 0.76 5.92 86 gap
LR-0475 120.65 107.7 333.4 3.18 7.87 5 0.76 5.92 70.88 gap
LR-0475-N 120.65 109.73 333.4 3.18 8.13 5 0.76 4.78 67.38 gap
LR-0487 123.83 111 337.84 3.18 7.37 5 0.76 5.92 80.68 gap
LR-0487-N 123.83 112.78 337.84 3.18 8.13 5 0.76 4.78 68.25 gap
JBT-125 125 - 515-625 2 6.2 6 0.76 4.78 - gap
LB-0492 125 111.38 342.6 3.18 7.62 5 0.76 5.92 76 gap
LR-0500 127 114.05 346.73 3.18 7.87 5 0.76 5.92 73.85 gap
LR-0500-N 127 116.08 346.73 3.18 8.89 5 0.76 4.78 60.73 gap
JBT-130 130 - 525-635 3 4.7 6 0.87 6.33 - gap

Factory introduction:

The company has successfully passed ISO9001 and IATF16949 quality management system certification. Our wave springs and spiral retaining rings are mainly used in aerospace, automobile, petroleum, medical equipment, wind energy, construction machinery, consumer electronics and other industrial products .
