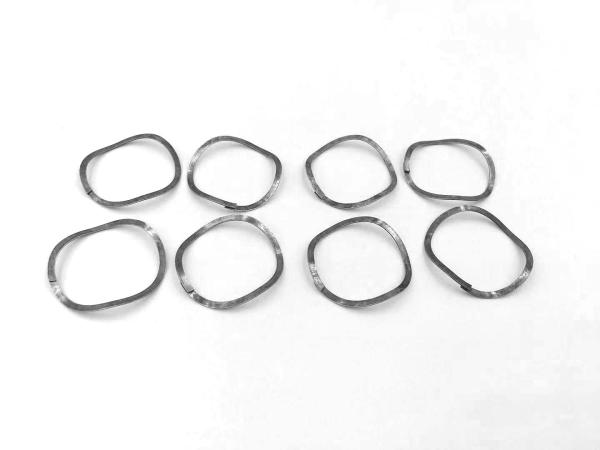

Stainless Steel Single Turn Wave Spring Washers Suppliers 17-7PH(SUS631)
Stainless Steel Single Turn Wave Spring Washers Suppliers 17-7PH(SUS631)
Stainless Steel Single Turn Wave Spring Washers Suppliers 17-7PH(SUS631)
Stainless Steel Single Turn Wave Spring Washers Suppliers 17-7PH(SUS631)
Stainless Steel Single Turn Wave Spring Washers Suppliers 17-7PH(SUS631)
Stainless Steel Single Turn Wave Spring Washers Suppliers 17-7PH(SUS631)
Specifications
Brand Name :
lisprings
Model Number :
LR/LB
Certification :
ISO9001 IATF16949
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
10000000
Delivery Time :
7 work days
Packaging Details :
Bulk packaged or Customize
Name :
Single turn wave spring washers
Length :
Non-standard as request&design
Non-standards :
OEM is available if you provide a drawing or sample
Sample :
Free(If there is ready-made goods)
Product standards :
GB,DIN,BS,ISO,JIS,ANSI,UNC
Packing :
Inner--PE Bag; Outer--Carton Box
Description

Stainless steel Single turn wave spring washers suppliers 17-7PH(SUS631)

Description:

1.Wave washers, also referred to as wave springs, are wavy metal washers designed to provide a compensating spring force or absorb shock when under load. Many design variations have evolved to best serve these basic functions.Wave spring washers, also called wave washers, generally have several curvilinear lobes. The wave spring washer is an efficient washer for obtaining loads when the load is static or the working range is small and the amount of axial space is limited.

2.What are the different types of washers?

Spring washers are a load bearing device that provides a preload between two surfaces. Other common types include flat washers, C-washers, D-shaped washers, countersunk or finishing washers, fender washers, SAE washers, torque washers, and shoulder washers.

Specification:

Part No. Operates in
Bore Diameter		 Lears Shaft
Diameter		 Load Work Height Free Height Waves Thinkness Radial Wall Spring Rate Open
mode
mm mm (N) mm mm mm mm N/MM
LB-0035 9 6.86 25.8 1 1.5 3 0.2 0.81 52 overlap
LB-0039 10 7.49 27.6 1 1.57 3 0.2 1.02 48 overlap
LB-0043 11 8.46 29.4 1 1.83 3 0.2 1.02 35 overlap
LB-0047 12 9.17 33.4 1 1.57 3 0.25 1.17 59 overlap
LR-0050 12.7 9.91 31.12 1.27 2.16 3 0.2 1.02 35 overlap
LB-0051 13 9.53 37.8 1 1.57 3 0.25 1.47 66 overlap
LR-0062 15.88 12.19 44.45 1.27 2.41 3 0.25 1.47 38.85 overlap
JBT-016 16 - 60-100 1 1.9 3 0.3 1.83 - overlap
LB-0063 16 11.28 44.5 1.57 2.29 3 0.25 1.98 65 overlap
JBT-019 19 - 70-110 1 2 3 0.33 2.01 - overlap
LB-0075 19 14.28 53.4 1.57 3.05 3 0.25 1.98 35 overlap
LR-0075 19.05 12.7 62.23 1.57 4.06 3 0.25 1.98 25.03 overlap
JBT-022 22 - 80-140 1.2 2.3 3 0.42 1.9 - overlap
LB-0087 22 16.46 62.3 1.57 2.79 3 0.3 2.39 48 overlap
LR-0087 22.23 15.75 71.12 1.57 3.3 3 0.3 2.39 41.13 overlap
LB-0095 24 18.46 66.7 1.57 3.56 3 0.3 2.39 35 overlap
LR-0100 25.4 19.81 80.02 1.57 4.06 3 0.3 2.39 32.2 overlap
JBT-026 26 - 100-160 1.2 2.8 3 0.46 2.39 - overlap
LB-0102 26 18.22 71.2 1.98 2.54 3 0.41 3.38 111 overlap
JBT-028 28 - 105-175 1.2 2.4 3 0.46 2.39 - overlap
... ... ... ... ... ... ... ... ... ... ...
LB-1181 300 279.16 823.2 3.96 10.41 9 0.81 9.53 129 gap
LR-1200 304.8 283.46 809.04 3.96 11.18 9 0.81 9.53 112.18 gap
LB-1221 310 289.16 849.9 3.96 7.11 9 1.07 9.53 264 gap
LR-1250 317.5 296.16 844.6 3.96 8.89 10 0.81 9.53 171.33 gap
LB-1260 320 299.16 876.6 3.96 7.62 9 1.07 9.53 239 gap
LR-1300 330.2 308.86 880.17 3.96 10.41 10 0.81 9.53 136.5 gap
LB-1339 340 319.16 934.5 3.96 8.64 9 1.07 9.53 198 gap
LR-1350 342.9 321.31 915.73 3.96 10.92 10 0.81 9.53 131.6 gap
LB-1378 350 329.16 961.1 3.96 9.4 9 1.07 9.53 180 gap
LR-1400 355.6 334.01 951.29 3.96 7.62 12 0.81 9.53 260.05 gap
LB-1417 360 339.16 987.9 3.96 7.62 10 1.07 9.53 271 gap
LR-1450 368.3 346.71 982.41 3.96 8.13 12 0.81 9.53 235.9 gap
LB-1457 370 349.16 1014.6 3.96 8.13 10 1.07 9.53 249 gap
LB-1496 380 359.16 1041.3 3.96 8.64 10 1.07 9.53 229 gap
LR-1500 381 358.9 1022.41 3.96 8.89 12 0.81 9.53 207.55 gap
LB-1535 390 369.16 1072.4 3.96 9.14 10 1.07 9.53 211 gap
LR-1550 393.7 371.86 1062.42 3.96 7.87 13 0.81 9.53 271.6 gap
LB-1575 400 379.16 1099.1 3.96 9.65 10 1.07 9.53 196 gap
LR-1600 406.4 384.56 1102.43 3.96 8.64 13 0.81 9.53 235.9 gap
LB-1614 410 382.82 1125.8 3.96 8.38 10 1.07 12.7 251 gap
LB-1654 420 392.82 1152.5 3.96 8.89 10 1.07 12.7 233 gap
LB-1693 430 402.82 1179.2 3.96 7.62 11 1.07 12.7 317 gap
LB-1732 440 412.82 1205.9 3.96 8.13 11 1.07 12.7 295 gap
LB-1811 460 432.82 1263.7 3.96 8.89 11 1.07 12.7 256 gap
LB-1890 480 452.82 1317.1 3.96 8.13 12 1.07 12.7 318 gap
LB-1969 500 472.82 1370.5 3.96 8.89 12 1.07 12.7 280 gap
LB-2126 540 512.82 1481.8 3.96 8.89 13 1.07 12.7 303 gap
LB-2284 580 552.82 1593 3.96 8.89 14 1.07 12.7 327 gap

Factory introduction:

The company has successfully passed ISO9001 and IATF16949 quality management system certification. Our wave springs and spiral retaining rings are mainly used in aerospace, automobile, petroleum, medical equipment, wind energy, construction machinery, consumer electronics and other industrial products .
