Square Round Perforated Cylinder For Architecture Audio ISO9001 Approved
Square Round Perforated Cylinder For Architecture Audio ISO9001 Approved
Specifications
Brand Name :
Forward
Model Number :
WPT
Certification :
ISO9001
Place of Origin :
China
MOQ :
600 Meters
Price :
USD + 20-300 + Piece
Payment Terms :
T/T, L/C
Supply Ability :
30000 + Pieces + Per Month
Delivery Time :
15 Working Days
Packaging Details :
Wood Carton
Material :
Steel or Alloy
Thick :
0.1mm-50mm
Length :
100mm-6000mm
Surface :
Polished
Product Name :
Perforated Cylinder
Description

Square Round Perforated Cylinder For Architecture Audio ISO9001 Approved

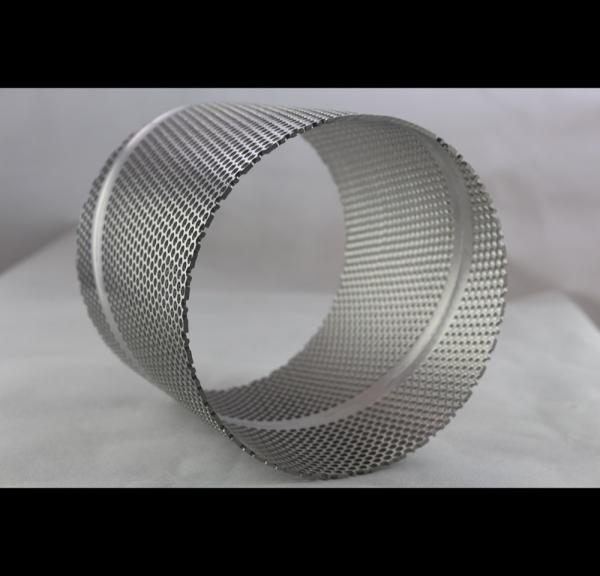

Perforated Metal Tubes are popularly used in filter products as support tubing, and sometimes it is used directly as filter tubes and cylinders for certain industries.

Welded punched tubing Customized Metal High Pressure Prisice Open Rate is also called welded perforated tubing / piping. They can be made by tubes then punched with holes or made by punched metals then made with tube or pipe.

Forwarder filter is an old company producing welded punched tubing and welded punched piping. They can be used in Light decoration; hydraulic filtration; petroleum refining filtration; drainage system; food filtration producing and Vehicle Exhausts or Acoustical Dampening products

According to the application, we have common steel type as follows

Element percent
Steel Type 201 202 304 316 430 409
NI 1.246 4.079 8.03 10.0-14.0 ≤0.60 　
C 0.073 0.055 0.042 ≤0.08 ≤0.12 ≤0.08
Si 0.364 0.416 0.46 ≤1.00 ≤1.00 ≤1.00
Mn 9.282 7.483 1.03 ≤2.00 ≤1.00 ≤1.00
P 0.0329 0.0393 0.044 ≤0.045 ≤0.040 ≤0.045
S 0.0051 0.0032 0.004 ≤0.030 ≤0.030 ≤0.030
Cr 14.912 15.958 18.35 16-18 16-18 10.5-11.75
Mo 　 　 　 2.0-3.0 　 　
Cu 1.46 1.494 　 　 　 　

Test Material 201 202 304 316 409l
Tensile Strength ≥535 ≥520 687 ≥520 ≥360
Yield Strength ≥245 ≥205 287 ≥205 ≥ 175
Extension ≥30% ≥30% 0.525 ≥35% ≥25%
Hardness (HV) <253 <253 187 <200 <175

As for the punched module, we have free module cost as follows

Diameter (mm) 0.5 2.4 2.4 2.6 3 3 3.175 4 4.2 3.2 3.2 5 6
Distance (mm) 1 4 6 6 5 8 6.35 6 6 5 5.5 8 8

Forwarder is manufacture with full experience, so we can save cost on the module cost, save time on delivery, especially save reputation on fault supplier. Warmly welcome inquiry with detail speciation about Welded Punched Tubing Customized Metal High Pressure Prisice Open Rate.
