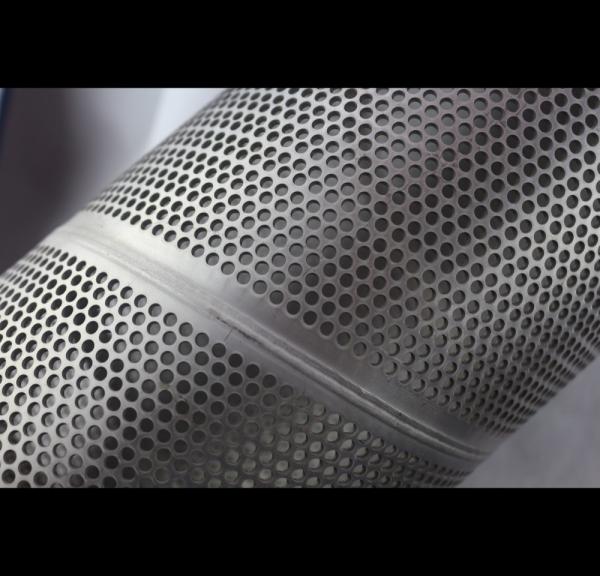

Durable Perforated Metal Pipe , Audio Perforated Stainless Steel Exhaust Tubing
Durable Perforated Metal Pipe , Audio Perforated Stainless Steel Exhaust Tubing
Specifications
Brand Name :
Forward
Model Number :
WPT
Certification :
ISO9001
Place of Origin :
China
MOQ :
600 Meters
Price :
USD + 20-300 + Piece
Payment Terms :
T/T, L/C
Supply Ability :
30000 + Pieces + Per Month
Delivery Time :
15 Working Days
Packaging Details :
Wood Carton
Material :
Steel or Alloy
Thick :
0.1mm-50mm
Length :
100mm-6000mm
Surface :
Polished
Advantage :
Durable
Product Name :
Perforated Metal Pipe
Description

Durable Perforated Metal Pipe , Audio Perforated Stainless Steel Exhaust Tubing

Because carbon steel is susceptible to corrosion, it is typically used in either unexposed applications or protected with a coating. Coatings such as paint and powder are applied after perforating and completely protect the material. Zinc based coated metals (i.e. Galvanized, Galvannealed, etc.) on the other hand, are produced and supplied as such from the mill and may not completely protect the material where its carbon core is exposed during the perforating process.

According to the application, we have common steel type as follows

Element percent
Steel Type 201 202 304 316 430 409
NI 1.246 4.079 8.03 10.0-14.0 ≤0.60 　
C 0.073 0.055 0.042 ≤0.08 ≤0.12 ≤0.08
Si 0.364 0.416 0.46 ≤1.00 ≤1.00 ≤1.00
Mn 9.282 7.483 1.03 ≤2.00 ≤1.00 ≤1.00
P 0.0329 0.0393 0.044 ≤0.045 ≤0.040 ≤0.045
S 0.0051 0.0032 0.004 ≤0.030 ≤0.030 ≤0.030
Cr 14.912 15.958 18.35 16-18 16-18 10.5-11.75
Mo 　 　 　 2.0-3.0 　 　
Cu 1.46 1.494 　 　 　 　

Test Material 201 202 304 316 409l
Tensile Strength ≥535 ≥520 687 ≥520 ≥360
Yield Strength ≥245 ≥205 287 ≥205 ≥ 175
Extension ≥30% ≥30% 0.525 ≥35% ≥25%
Hardness (HV) <253 <253 187 <200 <175

As for the punched module, we have free module cost as follows

Diameter (mm) 0.5 2.4 2.4 2.6 3 3 3.175 4 4.2 3.2 3.2 5 6
Distance (mm) 1 4 6 6 5 8 6.35 6 6 5 5.5 8 8

Forwarder is manufacture with full experience, so we can save cost on the module cost, save time on delivery, especially save reputation on fault supplier. Warmly welcome inquiry with detail speciation about Welded Punched Tubing Customized Metal High Pressure Prisice Open Rate.
