Water Filtration Perforated Stainless Tube , Custom Material Perforated Round Tubing
Water Filtration Perforated Stainless Tube , Custom Material Perforated Round Tubing
Specifications
Brand Name :
Forward
Model Number :
SSMT
Certification :
ISO9001
Place of Origin :
China
MOQ :
100 pieces
Price :
USD+ 20-50 + Pieces
Payment Terms :
T/T, L/C
Supply Ability :
100000+Pieces+Month
Delivery Time :
10 working days
Packaging Details :
Wood Carton
Material :
Stainless Steel
Package :
Wood Carton
Application :
strainer tubing
Product Name :
Perforated Round Tubing
Model :
SSMT
Description

Water Filtration Perforated Stainless Tube , Custom Material Perforated Round Tubing

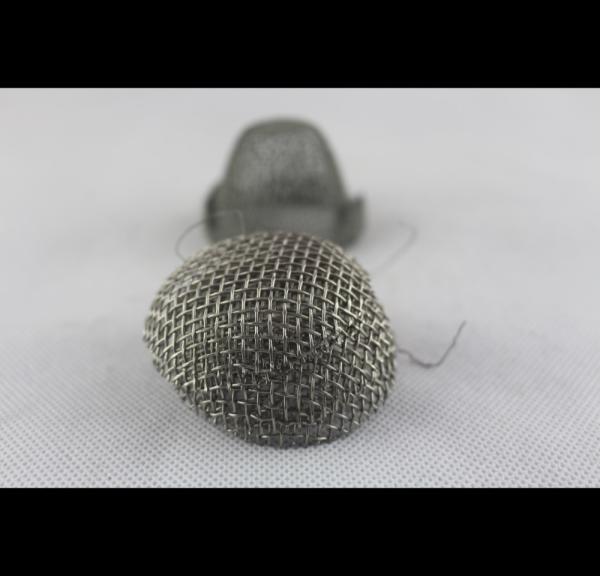

Stainless Steel mesh tube filter is made by stainless wire cloth, and perforated metal roll. Those materials are can be customized, but most of them have certain size like wire cloth is from 2 mesh to 500 mesh and perforated roll is from 1mm diameter to 30mm diameter, with less thickness than diameter.

Stainless Steel Mesh Tube Filter is part of filtration, it can be used in many applications like filter supporter, water filtration, oil filtration, strainer tubing,

The specification is normally as follows

Sheet Thickness Opening in Width Opening in Length Stem Roll Width Roll Length Weight
(mm) mm mm mm kg/m
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26
Actually not only stainless steel, but also other alloy like aliumium, copper, monel can also be required.
