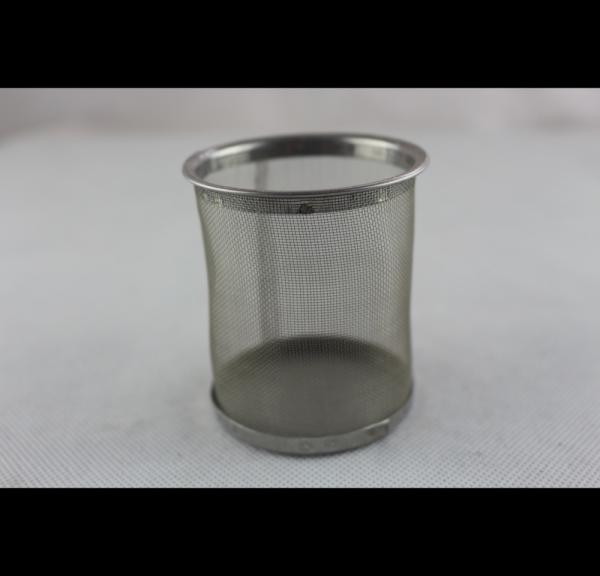

304 316 Stainless Steel Mesh Filter Tube , Square Plain Perforated Filter Tube
304 316 Stainless Steel Mesh Filter Tube , Square Plain Perforated Filter Tube
Specifications
Brand Name :
Forward Filter
Model Number :
FFSS
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
USD+ 0.1-100+ Piece
Packaging Details :
Plastic Bag or Wood Carton
Weave Type :
Plain, Twilled, Dutch Weave
Hole Shape :
Square
Material :
304, 316 or customized
Filter Rating :
10%-99%
Diameter :
0.3mm-4mm
Length :
As requirement
Description

304 316 Stainless Steel Wire Mesh Cylinder , Plain Perforated Filter Tube

Because carbon steel is susceptible to corrosion, it is typically used in either unexposed applications or protected with a coating. Coatings such as paint and powder are applied after perforating and completely protect the material. Zinc based coated metals (i.e. Galvanized, Galvannealed, etc.) on the other hand, are produced and supplied as such from the mill and may not completely protect the material where its carbon core is exposed during the perforating process.

304 Stainless Steel Wire Tube Used in Filtration Spiral Welded Seam No Length Limited is one of wire cloth tube which is normally used by wire mesh cloth and can be made by many materials like 304, 316, normally, the specification is as follows in the sheet.

Mesh Diameter Open Area
Inch mm Inch mm Inch
1×1 0.08 2.03 0.92 23.37
2X2 0.063 1.6 0.437 11.1
3X3 0.054 1.37 0.279 7.09
4X4 0.063 1.6 0.187 4.75
4X4 0.047 1.19 0.203 5.16
5X5 0.041 1.04 0.159 4.04
6X6 0.035 0.89 0.132 3.35
8X8 0.028 0.71 0.097 2.46
10X10 0.025 0.64 0.075 1.91
10X10 0.02 0.51 0.08 2.03
12X12 0.023 0.584 0.06 1.52
12X12 0.02 0.508 0.063 1.6
14X14 0.023 0.584 0.048 1.22
14X14 0.02 0.508 0.051 1.3
16X16 0.018 0.457 0.0445 1.13
18X18 0.017 0.432 0.0386 0.98
20X20 0.02 0.508 0.03 0.76
20X20 0.016 0.406 0.034 0.86
24X24 0.014 0.356 0.0277 0.7
30X30 0.013 0.33 0.0203 0.52
30X30 0.012 0.305 0.0213 0.54
30X30 0.009 0.229 0.0243 0.62
35X35 0.011 0.279 0.0176 0.45
40X40 0.01 0.254 0.015 0.38
50X50 0.009 0.229 0.011 0.28
50X50 0.008 0.203 0.012 0.31
60X60 0.0075 0.191 0.0092 0.23
60X60 0.007 0.178 0.0097 0.25
70X70 0.0065 0.165 0.0078 0.2
80X80 0.0065 0.165 0.006 0.15
80X80 0.0055 0.14 0.007 0.18
90X90 0.005 0.127 0.0061 0.16
100X100 0.0045 0.114 0.0055 0.14
100X100 0.004 0.102 0.006 0.15
100X100 0.0035 0.089 0.0065 0.17
110X110 0.004 0.1016 0.0051 0.1295
120X120 0.0037 0.094 0.0064 0.1168
150X150 0.0026 0.066 0.0041 0.1041
160X160 0.0025 0.0635 0.0038 0.0965
180X180 0.0023 0.0584 0.0033 0.0838
200X200 0.0021 0.0533 0.0029 0.0737
250X250 0.0016 0.0406 0.0024 0.061
270X270 0.0016 0.0406 0.0021 0.0533
300X300 0.0051 0.0381 0.0018 0.0457
325X325 0.0014 0.0356 0.0017 0.0432
400X400 0.001 0.0254 0.0015 0.37
500X500 0.001 0.0254 0.001 0.0254
635X635 0.0008 0.0203 0.0008

0.0203

There is different weave style as follows, different weave has different open rate and different strength.

304 316 Stainless Steel Mesh Filter Tube , Square Plain Perforated Filter Tube304 316 Stainless Steel Mesh Filter Tube , Square Plain Perforated Filter Tube304 316 Stainless Steel Mesh Filter Tube , Square Plain Perforated Filter Tube304 316 Stainless Steel Mesh Filter Tube , Square Plain Perforated Filter Tube

304 Stainless Steel Wire Tube advantage is obvious,

1, It resistant the corrosion since the material is stainless steel with 304 or 316

2, Open rate is precise, using right wire diameter and right woven way, we can control it easily.

3, It has more strength on mechanic and compress, so, wire cloth tube is more strength when with different layers.

4, It can be formed with different wire tube to be sinter filter.

We warmly welcome buyer send us detail information and communicate.
