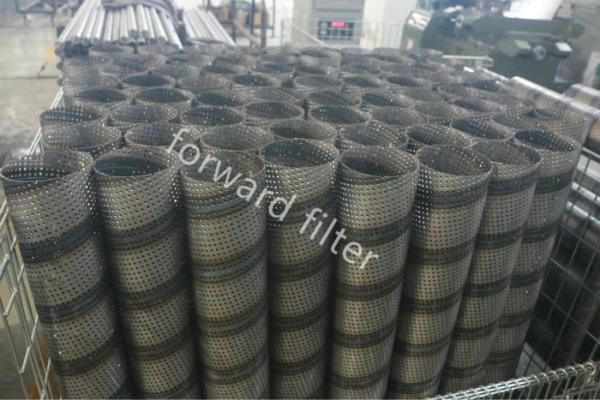

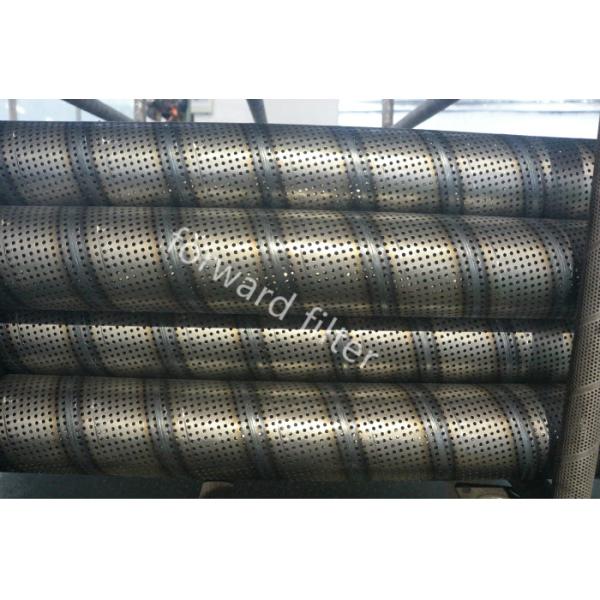

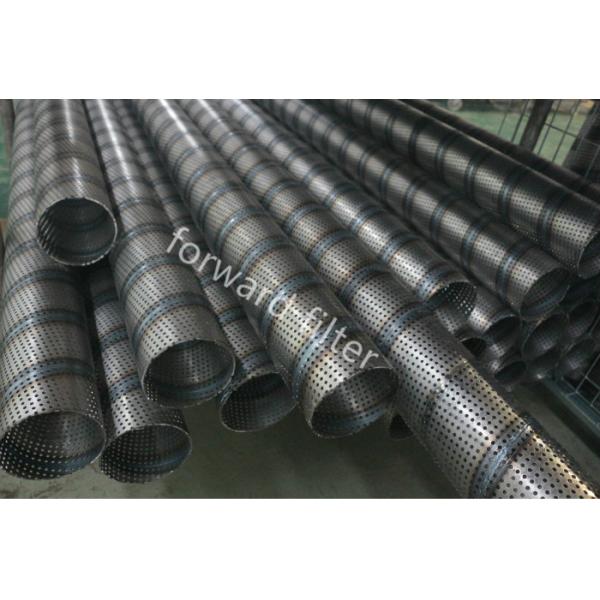

Steel Sand Control Screens , Perforated Stainless Pipe With Round Slot And Square
Steel Sand Control Screens , Perforated Stainless Pipe With Round Slot And Square
Steel Sand Control Screens , Perforated Stainless Pipe With Round Slot And Square
Steel Sand Control Screens , Perforated Stainless Pipe With Round Slot And Square
Steel Sand Control Screens , Perforated Stainless Pipe With Round Slot And Square
Steel Sand Control Screens , Perforated Stainless Pipe With Round Slot And Square
Specifications
Brand Name :
Forward
Model Number :
sand control screen
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pieces
Price :
USD + 0.1-30 + Piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000+ Piece + Per Month
Delivery Time :
5-10 work days
Packaging Details :
Wood Carton
Material :
Stainless steel 409, 304, 316
Perforation pattern options :
Straight line; Staggered(spiral welded)
Technical weave :
5-heddle atlas weave ，Gekuplate Plain dutch weave， Reversed dutch twilled weave， Dutch twilled weave， Reversed plain dutch weave， Ymax
shape of holes :
round, slot and square in straight or staggered forms
connection type :
lock seam or welded fabrication
special request :
Margins, end forms and perforation patterns can be customized
Description

customized sample is available!

forward filter has been designing and manufacturing Downhole Sand Control Screens for the Oil and Gas industry. we have a broad product offering for Direct Sand Retention and Gravel Pack Screens for Cased Hole, Open Hole and Remedial Sand Control Applications including Wire Wrap Screens and Prepack Screens.

Lock seam perforated pipe is made by folding up the overlapping edges against each other, then folding them over in the same direction a number of times. It has flush surface outside and lock seam inside. This type perforated tubing is the popular option of fluid filtration like center tube in the filter house.

Mild steel and stainless steel are common materials of manufacturing spiral perforated tubes. For generally applications, carbon steel is available to serve. However, for corrosive work conditions, stainless steel perforated pipe is a cost-efficient choice in the long terms.

before you offering us a quotation,please kindly think about the answers of the below questions.

1.what Material you need?

2.what is the Outside diameter?

3.what is the Hole diameter?

4.what is the central distance?

5.what is the Wall thickness?

6.do you need special surface treatment?

Perforation pattern options:

  • Straight line;
  • Staggered;

End Forms:

  • Unfinished (standard);
  • Finished (non-standard).
Extract of available sand control meshes
probe sizes(µm) porosity(%) air permeability at 200 Pa(l/m2/s) permeability(D)
60 49 1864 24
100 50 2091 28
125 48 2320 34
150 50 2460 35
175 52 2260 49
200 50 2350 55
225 52 2830 53
250 56 3360 53
275 57 4080 59
300 59 4720 65
350 64 5840 63
400 65 5940 101
600 66 6140 89

Steel Sand Control Screens , Perforated Stainless Pipe With Round Slot And SquareSteel Sand Control Screens , Perforated Stainless Pipe With Round Slot And Square
