Product Description:

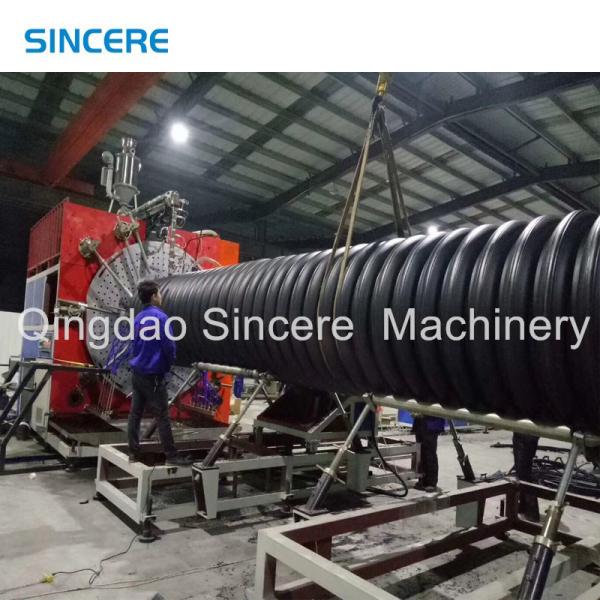

HDPE Rib Reinforced Corrugated type Spiral Pipe production line is a kind of new generation high performance
plastic spiral pipe line for large diameter buried drain pipe according to hollow wall winding pipe
production technology with the intellectual property. It can produce pipe size from Ø200~Ø2400mm
which is widely used in fields of civil water drain, wastewater drain.


The pipe could also be made by the recycled polyethylene material. These properties make it superior
advantages compared with other kinds of drainage pipe.
1) The investment is lower and the automatic control system is easy for operation and maintenance.
2) Adopt winding method by winding the semi-round two side circle profile
3) The inner PE-layer is Composited with the U-type pipe in melting condition. And they will never been
delaminated after spraying cooling forming, with good adhesion effect.
4)Adopting Electric-magnetic heating system which can save 40% to 60% electric power.
5)All Electric Part (breaker/motor/INCKO/Inverter) is Siemens/Omron
6)Production Speed is 1-20m/min.
7)Max. Pipe Size: 3000mm.

• The investment required is lower and the automatic control system is easy to operate and maintain.

• The winding method used involves winding the semi-round two side circle profile.

• The inner PE-layer is composited with the U-type pipe in melting condition, ensuring that they will never delaminate after spraying, cooling, and forming with good adhesion effect.

• The electric-magnetic heating system used can save 40% to 60% of electric power.

• All electric parts, including the breaker, motor, INCKO, and inverter, are from Siemens/Omron, ensuring high quality.

• The production speed can range from 1-20m/min.

• The maximum pipe size that can be produced is 3000mm.

Features:

PE Spiral Corrugated Pipe has several notable features that make it a popular choice for construction projects:

1) Light Weight : With its lightweight design, this type of pipe is easy to handle and transport. It also makes installation faster and more efficient, reducing overall labor costs.

2) Belling Link : The belling link system of PE Spiral Corrugated Pipe ensures tight cementation, making it resistant to leaks and damage caused by environmental factors such as soil movement or freezing temperatures.

3) High Strength : This type of pipe is designed to withstand high pressure, making it suitable for use in projects with heavy duty requirements.

4) Long Service Life : PE Spiral Corrugated Pipe has a service life of up to 50 years, making it a reliable and cost-effective option for long-term projects.

5) Convenient Construction : Finally, the convenient construction of PE Spiral Corrugated Pipe makes it easy to install and use, saving time and money on construction projects of all sizes.

Technical Parameters:

The table below lists the different models of extruders and their specifications:

The above table provides details about different models of extruders along with their specifications. The different models include SMSG-800, SMSG-1200, SMSG-1600, SMSG-2400, SMSG-3000 and SMSG-4000. Each model has a different extruder size, output capacity, pipe diameter, production speed, and installed power.

For instance, the SJ-65 extruder is used in the SMSG-800 and SMSG-2400 models and has an output capacity of 150 kg/h. The pipe diameter ranges from 200-800 mm for the SMSG-800 model, while for the SMSG-2400 model, the range is from 1200-2400 mm. The production speed varies from 2-16 m/h for the SMSG-800 and from 0.5-5 m/h for the SMSG-2400. The installed power for the SMSG-800 is 180 kw, whereas for the SMSG-2400, it is 400 kw.

Similarly, other models have different specifications, with varying extruder types, output capacities, pipe diameters, production speeds, and installed powers. Based on specific requirements, clients can choose the most suitable model of extruder for their projects.

Applications:

Sewage and drainage pipes are essential components of any modern city's infrastructure. These pipes are designed to ensure the efficient collection and disposal of waste and stormwater runoff. There are various types of sewage and drainage pipes available in the market, each with its own unique characteristics and capabilities.

• Storm water drainage pipes: These pipes are specifically designed to collect and transport stormwater runoff to prevent flooding and other water-related damages.

• Rain water sewage plastic pipes: Rainwater sewage plastic pipes are made from high-density polyethylene (HDPE) and are used to efficiently collect and transport rainwater from roofs to storage tanks or drainage systems.

• Cable protection pipes: Cable protection pipes are used to protect communication and electrical cables from damage caused by rainfall, human activity and other factors that may cause damage to the cables

• Civil construction sewage pipes: These pipes are typically used in large civil engineering projects such as highways, airports and dams to collect and transport sewage and wastewater from construction sites.

• Chemical storage tank: Chemical storage tanks are designed to store various types of chemicals such as acids and industrial chemicals. These tanks are made from specially designed materials that are resistant to corrosion and chemical reactions.

• Liquid storage tank: A liquid storage tank is used to store water - be it clean or contaminated.

• Manhole wellbore: These are maintenance access points on sewage and drainage systems.

Overall, the importance of sewage and drainage pipes in modern urban infrastructure cannot be overstated. The proper selection and installation of these pipes is vital to maintaining a safe, healthy, and efficient urban environment.

Packing and Shipping:

Product Packaging:

• All components of the winding pipe extrusion line will be securely packed in wooden crates to prevent damage during shipping.

• Each crate will be labeled with the product name, component name, and quantity.

• Clear instructions for assembly and installation will be included in the packaging.

Shipping:

• The winding pipe extrusion line will be shipped via sea or air, depending on customer preference and location.

• Shipping costs will be calculated and added to the final invoice.

• Delivery time will vary depending on location and shipping method.

• A tracking number will be provided to the customer once the product has been shipped.

FAQ:

Q: What is the brand name of this extrusion line?

A: The brand name of this extrusion line is Sincere.

Q: What are the model numbers available for this extrusion line?

A: The available model numbers for this extrusion line are SMPG-300, SMPG-800, and SMPG-1200.

Q: Where is this extrusion line manufactured?

A: This extrusion line is manufactured in China.

Q: What is the capacity of this extrusion line?

A: The capacity of this extrusion line ranges from 300kg/h to 1200kg/h, depending on the model.

Q: What types of pipes can be produced with this extrusion line?

A: This extrusion line is designed to produce winding pipes, which are commonly used in drainage systems and underground cables.
