Specifications
Brand Name :
Sincere
Model Number :
SMPP-63,SMPP160,SMPP110,SMPP300
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
7-15 work days
Pipe Diameter :
50mm-160mm
Warranty :
1 Year
Material :
PP/PE
Screw Diameter :
Customized
Extruder Type :
Single Screw Extruder
Control System :
PLC Control
Cooling Method :
Water Cooling
Max Output :
Customized
Main Motor Power :
30kw-200kw
Application :
Electric wire and cable protector
Description
Qingdao Sincere Plastic Machine PE PPR PP HDPE PERT Water Supply Pipe Extrusion Line
PERT/PPR Water Supply and Heating Pipe Extrusion Machine.
HDPE/PPR MPP Multi-layers Pipe Co-Extrusion Line (20-110,315,400,560,630,800,1200,1600mm).


1. MPP Three Lays Electric Pipe features:
1. High precision mold 2. Good performance 3. Reasonable design 4. Long usage life 5. Product characteristics: a) Good quality b) Smooth surface c) Antibacterial d) Wearable e) Antistatic f) Insulate 6. Good production stability 7. Uses imported electric components 8. Widely used for agriculture and industry 9. Large marketing potential 10. Adopts AC frequency conversion technology

2. Production line features:

Automatic Mpp Plastic Power Pipe Production Line Machine Plastic Mpp Conduit Pipe Extruder Machine
Automatic Mpp Plastic Power Pipe Production Line Machine Plastic Mpp Conduit Pipe Extruder Machine


Automatic Mpp Plastic Power Pipe Production Line Machine Plastic Mpp Conduit Pipe Extruder Machine
Extruders: Plastic Single-screw extruders for HDPE/PP, optinal SJ45, SJ55, SJ65,SJ75, SJ90,SJ100,SJ120,SJ150, L/D 33:1 or 38:1.
Extrusion capacity from 40kg/h to 1500kg/h.
High efficiency extruder is designed for HDPE pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.

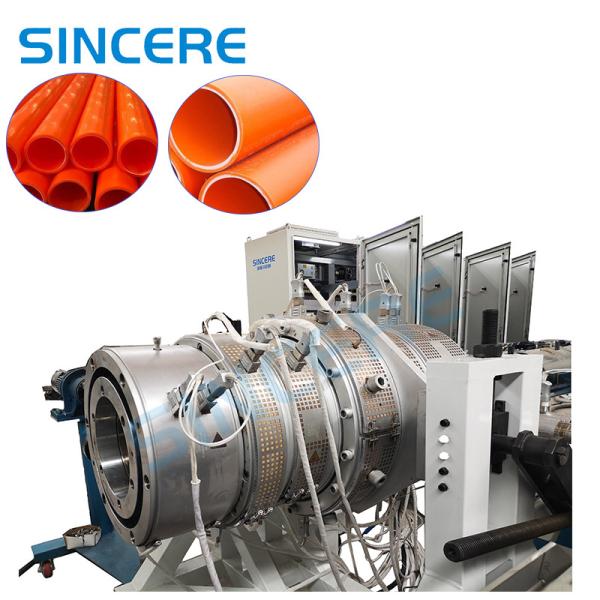

Extrusion die-head
Single layer extrusion die mould, double layers extrusion die moudld, three-layers extrusion molds.
Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.
Automatic Mpp Plastic Power Pipe Production Line Machine Plastic Mpp Conduit Pipe Extruder Machine


Automatic Mpp Plastic Power Pipe Production Line Machine Plastic Mpp Conduit Pipe Extruder Machine
Vacuum calibration water tanks, and spray water cooling tank: made of stainless steel ensures precise calibration and fast cooling.


Multi claws haul-off unit
speed adjusted by frequency inverter or by servo-motors. Be able to cut large diameter and thick wall pipe, servo-motors
Haulling speed: 0-30m/min.
Automatic Mpp Plastic Power Pipe Production Line Machine Plastic Mpp Conduit Pipe Extruder Machine
Automatic Mpp Plastic Power Pipe Production Line Machine Plastic Mpp Conduit Pipe Extruder Machine
Cutting machine
1.No-dust Cutter:The chip-free cutting machine can keep the production environment clean and noiseless. The incision is smooth and neat, which improves the appearance quality of the pipe.
2.Planetary Cutter:Planetary cutting machine with special hard fit blade, suitable for large diameter thick wall pipe cutting



3.Final product

Automatic Mpp Plastic Power Pipe Production Line Machine Plastic Mpp Conduit Pipe Extruder Machine
Automatic Mpp Plastic Power Pipe Production Line Machine Plastic Mpp Conduit Pipe Extruder Machine

Automatic Mpp Plastic Power Pipe Production Line Machine Plastic Mpp Conduit Pipe Extruder Machine
Automatic Mpp Plastic Power Pipe Production Line Machine Plastic Mpp Conduit Pipe Extruder Machine

PERT Pipe PE Silicon Core Pipe

Automatic Mpp Plastic Power Pipe Production Line Machine Plastic Mpp Conduit Pipe Extruder Machine
Automatic Mpp Plastic Power Pipe Production Line Machine Plastic Mpp Conduit Pipe Extruder Machine

HDPE Pipe PPR Pipe
Automatic Mpp Plastic Power Pipe Production Line Machine Plastic Mpp Conduit Pipe Extruder Machine MPP Electrical Pipe
4. Technical parameters:

Model Pipe Diameters(mm) Supporting extruder
(33:1 or 38:1)		 Extrusion capacity(kgh) Total Installed Power(kw)
SG-63 16-63 SJ6533 SJ2525 120-180 110
SG-110 16-110 SJ6533 SJ2525 150-200 130
SG-160 50-160 SJ7533 SJ2525 150-220 150
SG-250 75-250 SJ7533 SJ2525 280-350 280
SG-315 110-315 SJ9033 SJ2525 250-350 350
SG-450 160-450 SJ9033 SJ2525 350-450 400
SG-630 315-630 SJ12033 SJ2525 550-850 550
SG-800 450-800 SJ15033 SJ2525 800-1300 750
SG-1000 600-1000 SJ15033 SJ2525 800-1300 750
SG-1200 800-1200 SJ12033*2 SJ2525 950-1600 950
SG-1600 1000-1600 SJ15033*2 SJ2525 1500-2500 1300
