Specifications
Place of Origin :
Guangdong, China
Brand Name :
HYYX
Model Number :
HYW-18100-023
Supply Ability :
1000 Piece/Pieces per Week
Packaging Details :
1. Inside + outside strong double boxes , one piece each box, box demension : 510x510x250mm Gross weight : 16 KG 2.. Customized package
MOQ :
10 Piece/Pieces
Price :
$70.00 - $120.00 / Piece
Type :
18" speaker
Frequency Response :
40Hz-2KHz
Sensitivity :
100dB
Nominal Impedance :
8 Ohms
Size :
15/18 Inch Optional
Rated Power :
1000Watts
Voice Coil Diameter :
100mm(4in)
Cone :
Paper
Suspension :
Triple roll
Use :
Pro Audio
Port :
Huangpu, Nansha
Description
Product Description

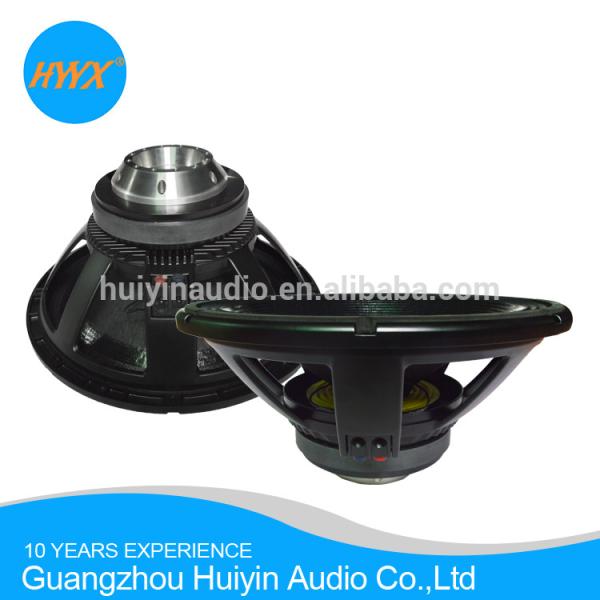

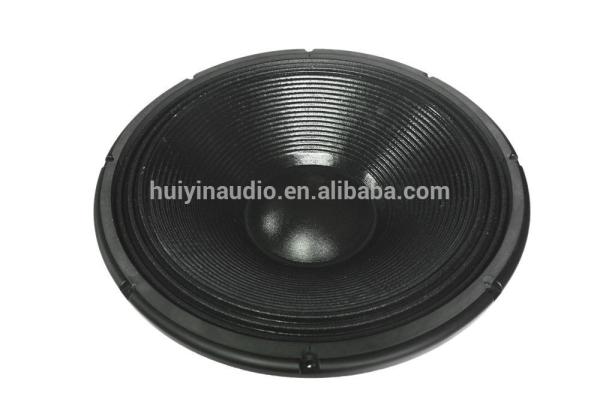

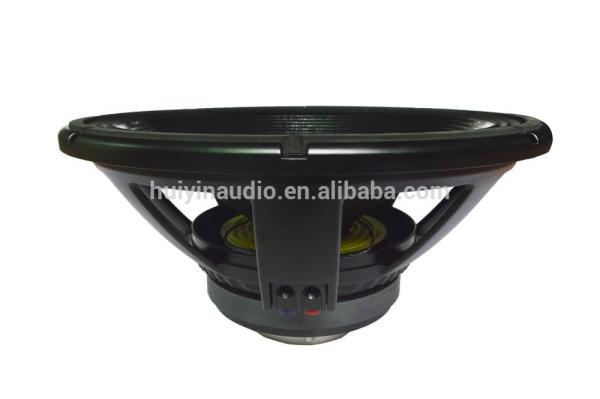

Subwoofer 18 inch for outdoor 18
Subwoofer 18 inch for outdoor 18


Feature

-18 inch subwoofer

- Dual voice coil design make magnetic to be forced fully, give higher SPL and higher rms power handling, 1000WRMS power handling, 100dB Sensitivity
- 40hz-2khz Frequency response
- 4" inside/outside double Copper Voice coil
- Strong cone with nice roll to allow enough power handling
- 15/18 inch are all available
Specification
Nominal diameter
460/18
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Frequency response
40-2k
Hz
Magnet size
220x25
mm
Magnet material
Ferrite Y30
Sensitivity (1w/1m)
100
dB
RMS power handling
1000
Watts
Continuous power handling
3000
Watts
Voice coil diameter
100/4
mm/ inch
Winding material
Copper
Cone material
Strong Paper
Surround material
Cloth
T/S Parameter
Fs
49.3
Hz
Re
5.8
Ω
Qes
0.84
Qts
0.80
Qms
21.98
Vas
94.4
L
Rms
3.4
kg/s
Cms
0.04
mm/N
Mms
239.3
gr
BI
22.7
N/A
Rp
79.1
Ω
Lp
21.7
mH
Cp
938.2
uF
Le
1.3
mH
Xmax (one-way)
15
mm
Mounting information
Overall diameter
465/18.3
mm/inch
Bolt Circle diameter
442/17.4
mm/inch
Baffle Cutout diameter
421/16.5
mm/inch
Total Depth
245/9.65
mm/inch
Flange thickness
17/0.67
mm/inch
Shipping information
Net weight
14.5
KG
Shipping weight
16
KG
Shipping box
510x510x250
mm
